BMXSDI1602 Schneider Discrete Input Module 16 Ch

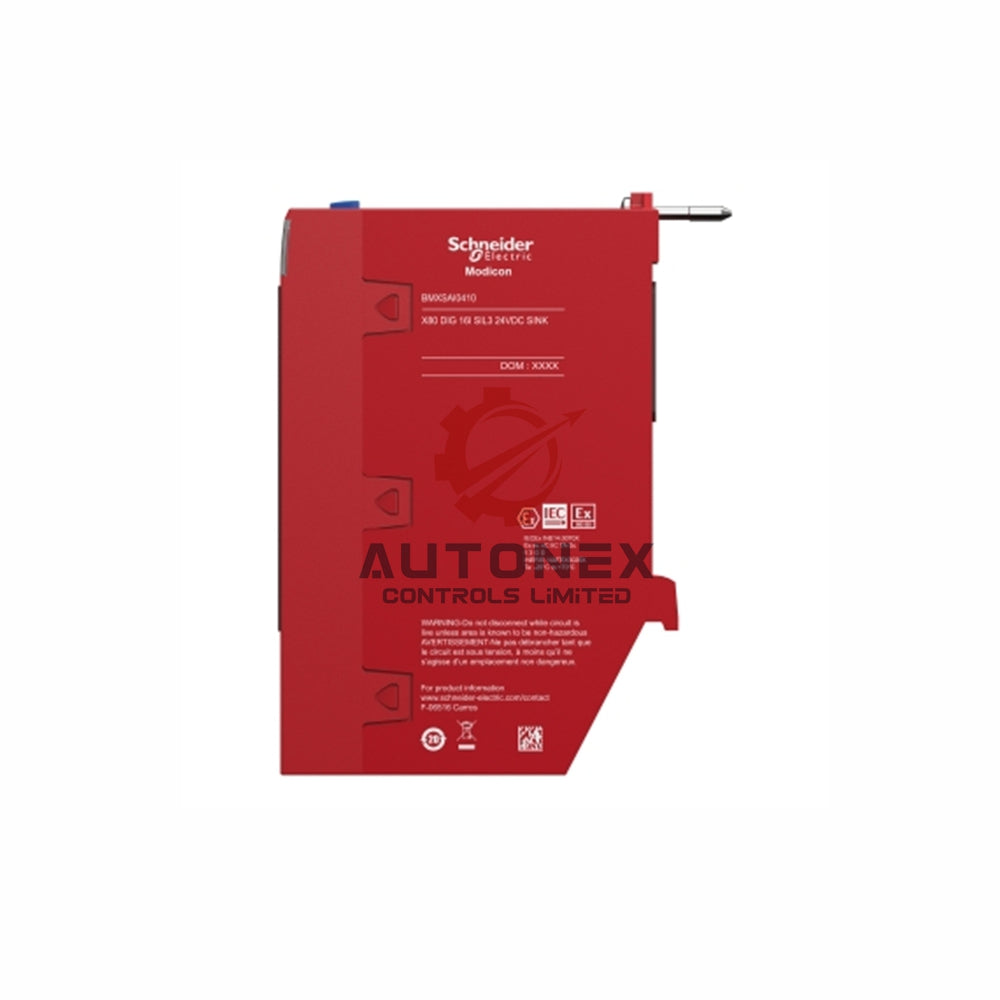

BMXSDI1602 Schneider Modicon X80 Safety Discrete Input Module

Key Technical Specifications

• Brand & Model: Schneider Electric BMXSDI1602 belongs to the Modicon X80 product family.
• Discrete Inputs: Provides 16 non-isolated inputs with current sink (logic positive) type.
• Voltage & Current: Operates at 24V DC positive with 3.2 mA nominal input current.
• Input Compatibility: Works with 2-wire or 3-wire proximity sensors per IEC 60947-5-2 standards.
• Guaranteed States: State 1 guarantees at least 2 mA; State 0 ensures maximum 1.5 mA.
• Input Impedance & Insulation: Features 7500 Ohm input impedance and >10 MOhm insulation at 500V DC.
• Response Time: Achieves a typical and maximum response time of only 6 ms.
• Power Dissipation & Consumption: Dissipates 3.57 W with typical consumption of 256 mA at 3.3V DC and 100 mA at 24V.
• Voltage Detection Thresholds: Detects sensor fault below 14V DC and sensor OK above 18V DC.
• Protection Features: Includes reverse polarity protection and requires external overload protection (0.5 A fast blow).
• MTBF Reliability: Offers a high MTBF of 265,000 hours for dependable operation.

Environmental & Mechanical Durability

• Operating Temperature: Functions reliably from -25°C to 60°C (-13°F to 140°F).
• Storage Temperature: Withstands -40°C to 85°C (-40°F to 185°F) for long-term storage.
• Humidity & Coatings: Handles 5% to 95% relative humidity at 55°C without condensation and includes conformal coating protection.
• Environmental Resistance: Rated for gas resistant class Gx, 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, and mold growth resistant class 3B2.
• Vibration & Shock: Resists 3 gn vibration and 15 gn shock for robust industrial use.
• Operating Altitude: Supports 0 to 2000 meters normally, with derating up to 5000 meters.
• Dielectric Strength: Provides 1500V AC for 1 minute between primary and secondary circuits.
• IP Protection: Rated IP20 for protection in control cabinet environments.

Frequently Asked Questions (FAQ)

• Is the BMXSDI1602 a new original module?
  Yes, we supply only brand new and original products directly from authorized sources.
• Do you have this module in stock?
  Yes, we maintain available stock for the Schneider Electric BMXSDI1602. Orders process quickly.
• What is the typical lead time for shipping?
  We ship within 5 days after order confirmation. Expedited options are available upon request.
• Which carriers do you use for delivery?
  We commonly ship via FedEx, UPS, and DHL to ensure reliable and trackable delivery worldwide.
• Can I return the module if it does not meet my needs?
  Yes, we support returns within 30 days of delivery. Please contact us for return authorization.
• Does the BMXSDI1602 support paralleling of inputs?
  Yes, the module allows paralleling of inputs for increased flexibility in wiring configurations.
• What type of sensors work with this input module?
  It works with 2-wire and 3-wire proximity sensors compliant with IEC 60947-5-2 standards.
• What is the guaranteed current for state 1 detection?
  State 1 guarantees a minimum input current of 2 mA for reliable signal detection.

For inquiries or to place an order, please contact us:

sales@nex-auto.com
+86 153 9242 9628

Partner NexAuto Technology Limited
