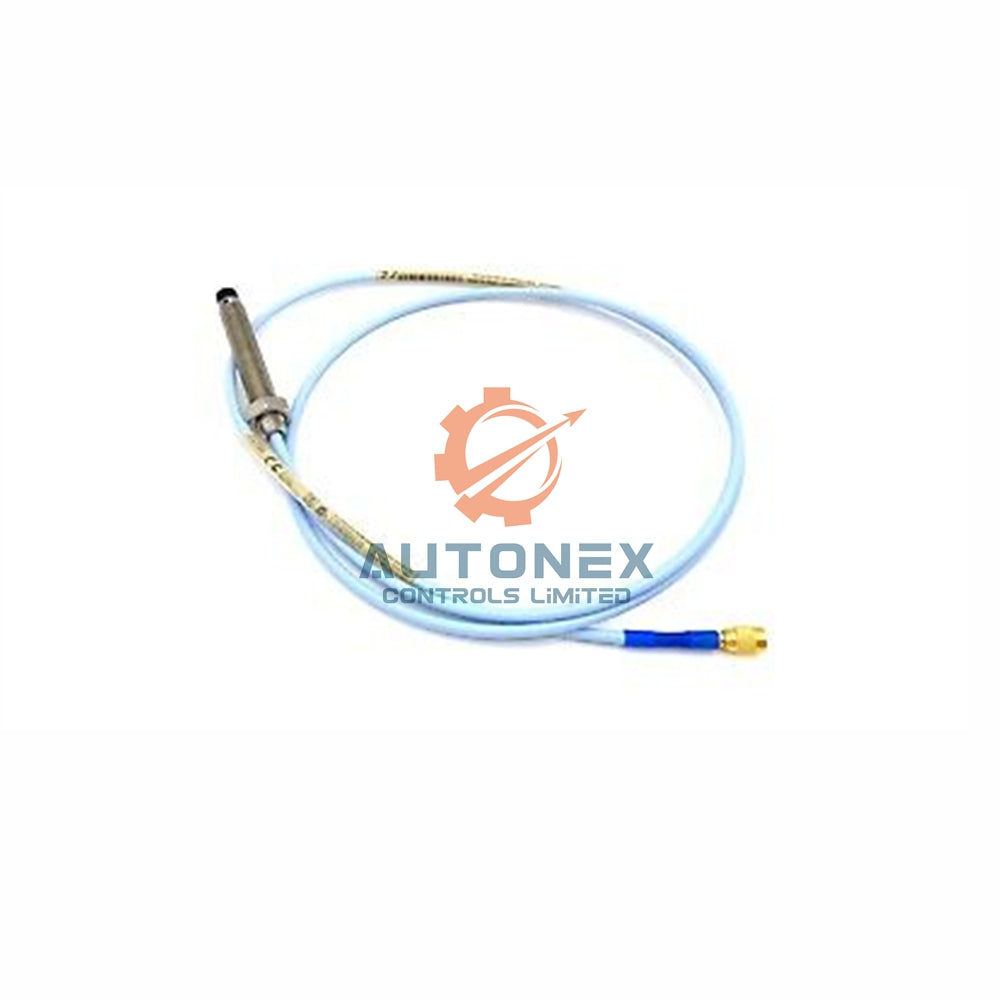

Bently Nevada 330905-05-13-10-12-00 NSv Probe | 1.5mm Range

Bently Nevada 3300 NSv Proximity Probe: Precision in Harsh Environments

Complete Suffix Configuration

• 330905 — Base probe with M10 x 1.0 mounting thread
  • -05 — 50 mm smooth shank length for grip
    • -13 — 130 mm unthreaded case length
      • -10 — 1.0 meter integral cable
        • -12 — FluidLoc™ connector for moisture resistance
          • -00 — No hazardous area approvals, general purpose

Core Technical Specifications

• Brand: Bently Nevada
• Model: 330905-05-13-10-12-00 (3300 NSv Series)
• Measurement Range: 1.5 mm linear span from –1 Vdc to –13 Vdc
• Sensitivity & Linearity: Factory set; ±0.06 mm maximum linearity deviation
• Frequency Response: 0–10 kHz (–3 dB) captures shaft vibration and speed
• Resolution: High‑resolution eddy‑current technology; no moving parts
• Temperature Tolerance: Sensor withstands –52 °C to +177 °C continuous
• Environmental Resistance: Viton O‑ring seals; PPS probe tip; stainless steel shell
• Noise Immunity: FluidLoc cable rejects EMI/RFI in industrial environments

Frequently Asked Questions

• Does this 330905-05-13-10-12-00 work with my existing 3300 RAM extension cables?
  Yes. The 3300 NSv series maintains electrical and mechanical compatibility with all 3300 RAM extension cables and proximitors.
• What is the difference between FluidLoc and standard cables?
  FluidLoc adds a compression seal inside the connector. It blocks chemical ingress and withstands high‑pressure washdowns.
• Can I use this probe on aluminium or painted targets?
  No. You must target ferrous steel or conductive alloy surfaces. Non‑ferrous materials alter the scale factor.
• How do I verify the correct gap voltage?
  Connect the probe to a system and adjust the gap until you read –10.00 Vdc on the output. This corresponds to the recommended 1.0 mm offset.
• Is the 1.0 m cable length the total probe length?
  No. The –10 option specifies 1.0 m from tip to connector. Total insertion depth depends on your case length and machine geometry.
• What delivery methods do you offer?
  We ship via FedEx, UPS, and DHL. All services include online tracking and insurance.

Download the Official Datasheet:
3300 XL NSv Proximity Transducer System Datasheet - 147385
