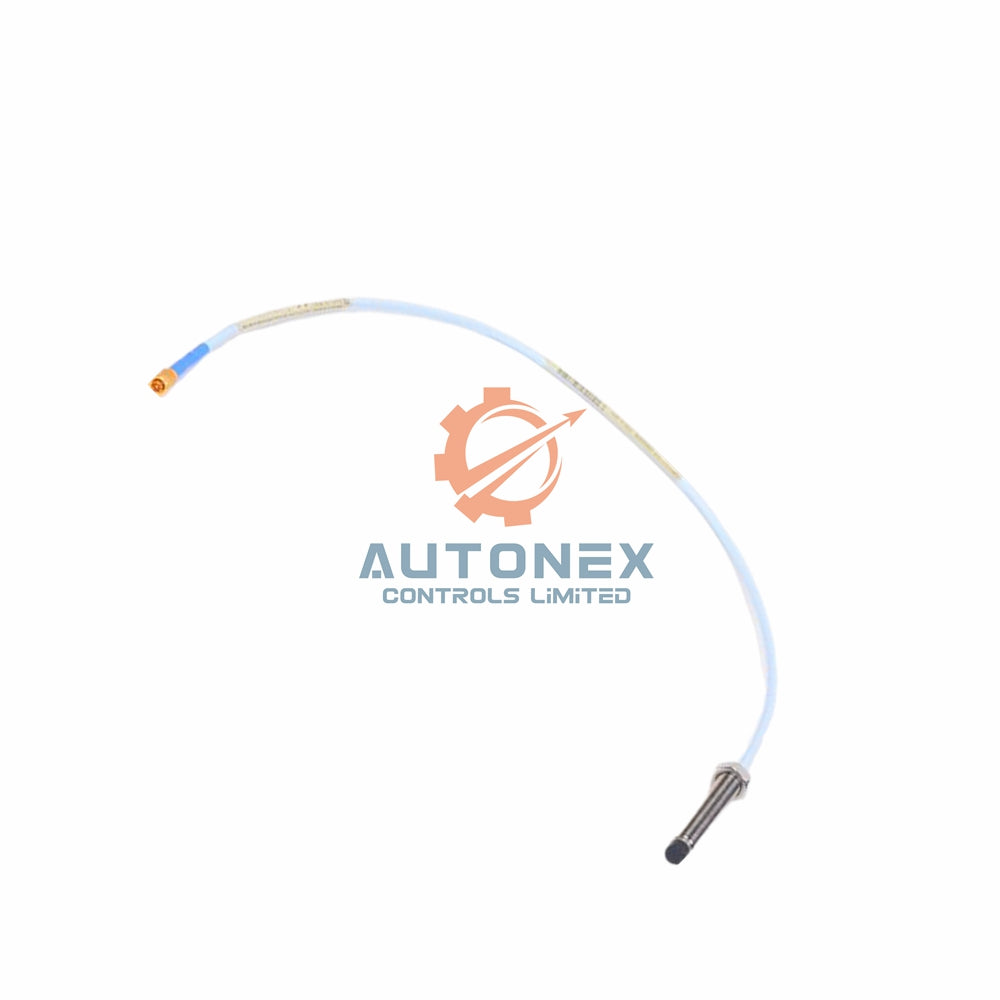

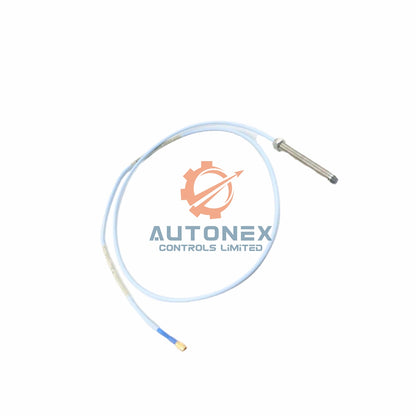

Bently Nevada 330905-05-08-05-01-00 NSv Probe | 80mm Case

Bently Nevada 3300 NSv Compact Probe: Precision Monitoring in Tight Spaces

Complete Suffix Configuration

• 330905 — Standard M10 x 1.0 mounting thread, unarmored design
  • -05 — 50 mm smooth shank length for consistent grip
    • -08 — 80 mm unthreaded case length for confined installations
      • -05 — 0.5 meter integral coaxial cable, FEP insulated
        • -01 — Miniature ClickLoc™ connector with protective shroud
          • -00 — No special approvals, general purpose industrial use

Core Technical Specifications

• Brand: Bently Nevada
• Model: 330905-05-08-05-01-00 (3300 NSv Series)
• Linear Range: 0.25 mm to 1.75 mm (10 to 70 mils) full scale
• Recommended Gap: 1.0 mm (40 mils) for optimal bias
• Scale Factor (ISF): 7.87 V/mm ±12.5%/-20% at 25°C
• Frequency Response: 0 to 10 kHz with up to 305 m system wiring
• Probe DC Resistance: 4.0 ± 0.5 Ω at 0.5 m length
• Extension Cable Resistance: Center conductor 0.220 Ω/m, shield 0.066 Ω/m
• Extension Cable Capacitance: 69.9 pF/m typical
• Temperature Range: -52°C to +177°C (-62°F to +351°F) operating and storage
• Probe Construction: AISI 304 stainless steel case, PPS tip, FEP coaxial cable
• Connector Type: Miniature coaxial ClickLoc™ with integral protective cap

Installation Guidelines

• Mounting Torque: Finger tight only; maximum 0.56 N·m (5 in·lb)
• Thread Engagement: Do not exceed 15 mm penetration depth
• Initial Gap: Adjust probe until output measures -10.00 Vdc nominal
• Minimum Bend Radius: Maintain 25.4 mm (1 inch) or larger
• Target Surface: Ferrous steel, minimum 13 mm diameter flat area

What’s Inside the Box

• 330905-05-08-05-01-00 Bently Nevada 3300 NSv proximity probe with 0.5 m cable
• Factory calibration certificate with individual scale factor verification
• Replacement Viton O-ring and mounting nut
• Protective connector cap installed
• Anti-static sealed clamshell packaging

Global Shipping & Fulfillment

• Inventory Status: Factory-fresh stock, never refurbished
• Carriers: FedEx Priority, UPS Worldwide Express, DHL Express Easy
• Delivery: 3–5 business days to most industrial destinations
• Return Policy: 30 days, unopened factory packaging required

Frequently Asked Questions

• What makes the 330905-05-08-05-01-00 different from standard 3300 NSv probes?
  The -08 case length provides only 80 mm unthreaded section. This fits machines where bearing housings or casings have shallow mounting bosses.
• Why is the maximum torque only 0.56 N·m?
  The M10x1 thread cuts directly into the probe case. Excessive torque damages the stainless steel shell or alters the coil impedance. We specify finger tight only.
• Can I use this probe with 3300 RAM extension cables?
  Yes. The 3300 NSv series maintains full electrical and mechanical compatibility with all 3300 RAM extension cables and proximitors.
• What does the ClickLoc connector protector do?
  The -01 option adds a spring-loaded metal shroud. It shields the center pin during handling and prevents accidental contact with grounded surfaces.
• How does cable capacitance affect system performance?
  Excessive capacitance reduces frequency response flatness. Our extension cable maintains 69.9 pF/m, ensuring 10 kHz bandwidth even with 305 meters of total cable.
• Do you ship to remote mining or oil field locations?
  Yes. We coordinate with FedEx, UPS, and DHL to reach remote sites with extended service areas.

Download Official Technical Documentation:
3300 XL NSv Proximity Transducer System Datasheet - 147385 (PDF)
