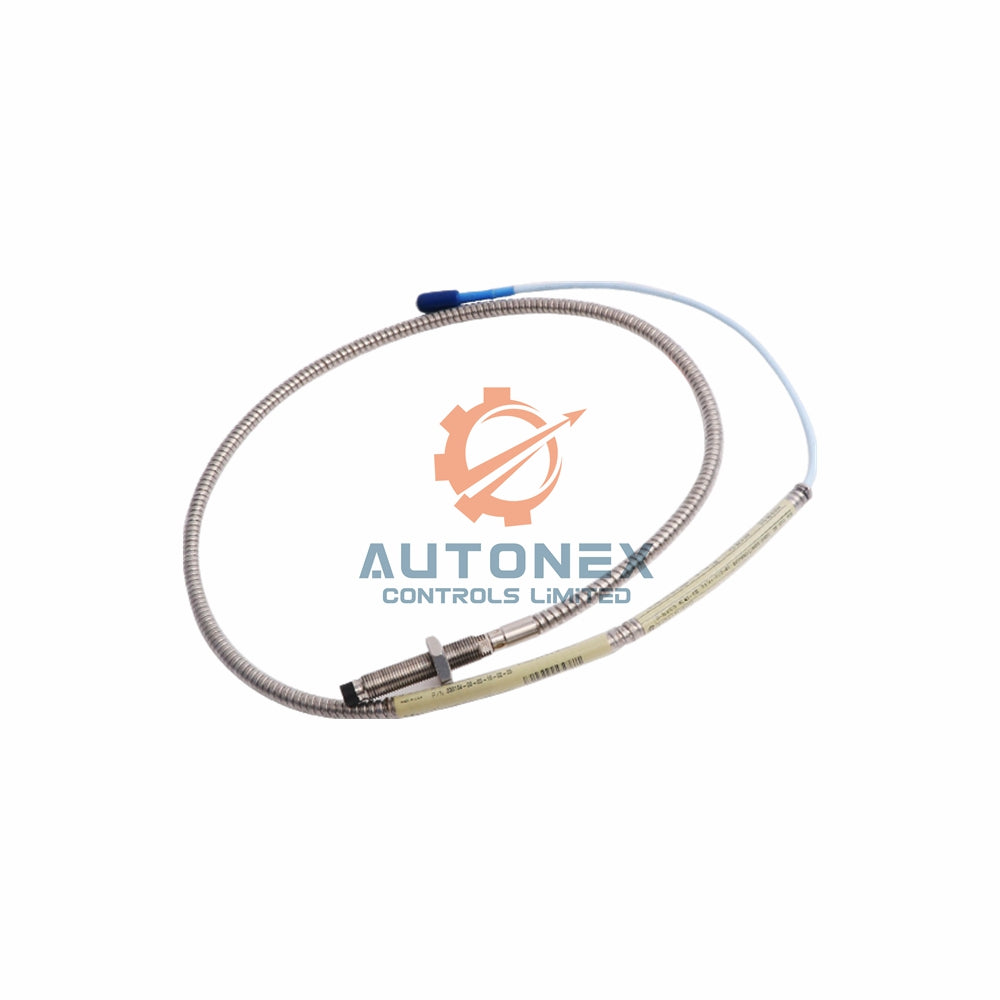

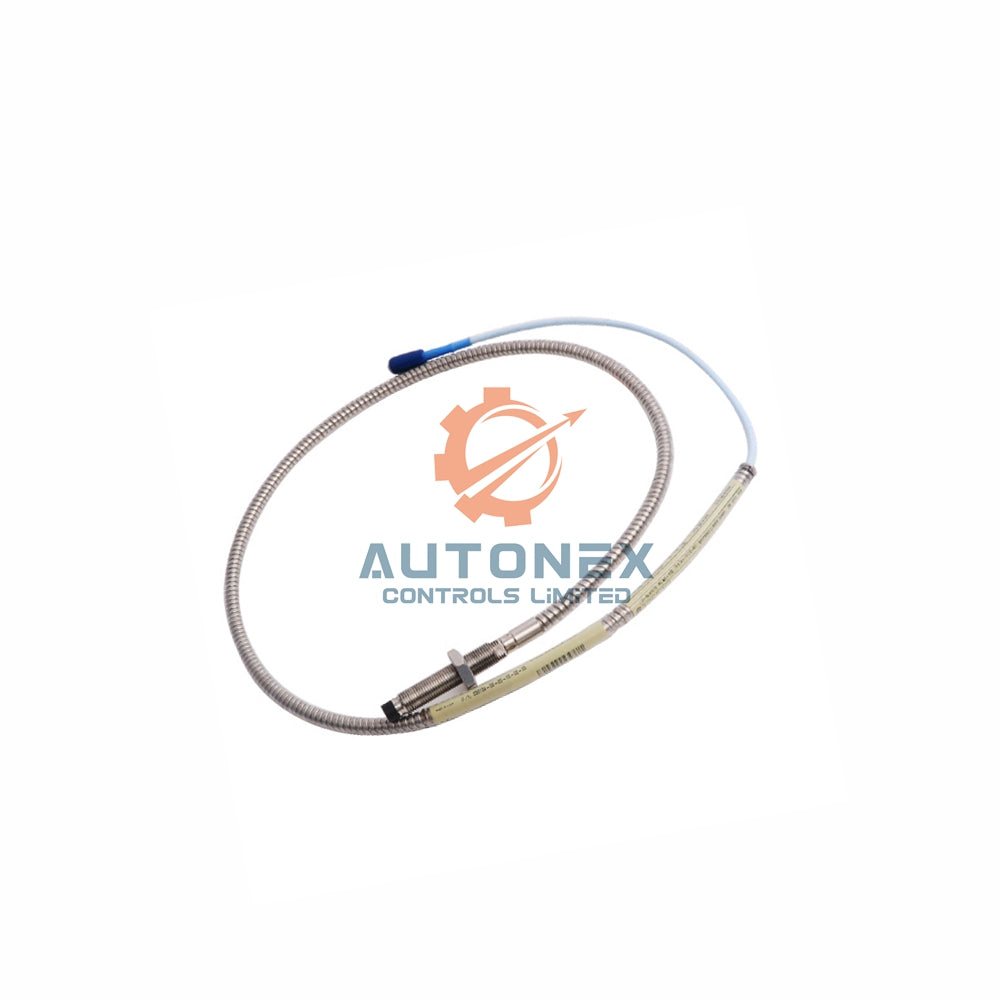

Bently Nevada 330904-08-15-05-11-00 - NSv Proximity Probe

Bently Nevada 3300 NSv Proximity Transducer

Model and Brand Information

• Manufacturer Brand: Bently Nevada, a leader in condition monitoring.
• Product Series: This sensor belongs to the trusted 3300 NSv series.
• Full Part Number: The specific item identifier is 330904-08-15-05-11-00.

Part Number Suffix Details

• -08: This means the probe has an 80 mm unthreaded body section.
• -15: Indicates the total case length is 150 mm.
• -05: Specifies a total integrated cable length of 0.5 meters.
• -11: Denotes a Miniature Coaxial ClickLoc connector with protector and FluidLoc cable seal.
• -00: Shows the unit requires no specific agency approval.

Core Technical Specifications

• Measurement Range: The probe has a 1.5 mm (60 mils) linear measurement range.
• Recommended Gap: For best performance, set the air gap to 1.0 mm (40 mils).
• Scale Factor: The output scale factor is 7.87 V/mm (200 mV/mil) with a defined tolerance.
• Linearity & Resolution: Linearity deviation remains below ±0.06 mm (±2.3 mils) across the range.
• Frequency Response: It provides a flat response from 0 to 10 kHz, even with long cabling.
• Temperature Rating: The operating range is a wide -52°C to +177°C (-62°F to +351°F).
• Output Signal: The system provides a voltage signal directly proportional to target displacement.

Construction and Materials

• Probe Tip: Made from durable Polyphenylene Sulfide (PPS) material.
• Probe Case: Constructed from rugged AISI 304 Stainless Steel for corrosion resistance.
• Cable Assembly: Features a 75 Ω coaxial cable with FEP insulation and stainless steel armor.

Installation Guidelines

• Mounting Thread: The probe uses a standard M8 x 1 metric thread for installation.
• Engagement & Torque: Use a maximum thread engagement of 12 mm. Tighten to a recommended 5.1 N·m torque (max 7.3 N·m).
• Cable Handling: Maintain a minimum bend radius of 25.4 mm (1 inch) for the cable.
• Initial Setup: Always set the initial gap to the recommended 1.0 mm (40 mils).

Electrical Data and Wiring

• Probe Resistance: The probe's typical DC resistance is 4.0 ± 0.5 Ω for the 0.5m model.
• Cable Parameters: Extension cable has specific resistance and 69.9 pF/m capacitance values.
• Field Wiring: Use 16 to 24 AWG shielded triad cable for best noise immunity.
• Maximum Run: You can run field wiring up to 305 meters (1000 feet) to the monitor.

Frequently Asked Questions (FAQ)

• Q: Is this a genuine Bently Nevada part?
  A: Yes, we supply 100% brand new, original Bently Nevada sensors directly from trusted sources.
• Q: What is the key difference for suffix -11?
  A: The "-11" suffix specifies the Miniature Coaxial ClickLoc connector with FluidLoc sealing, ideal for wet environments.
• Q: How quickly can you ship the 330904-08-15-05-11-00?
  A: We stock this item and typically process and ship within 5 business days via DHL, FedEx, or UPS.
• Q: What is the return policy for this probe?
  A: We offer a 30-day return policy for your convenience and confidence in your purchase.
• Q: Can I use this with my existing 3300 monitor?
  A: Yes, the Bently Nevada 3300 NSv probe is designed for seamless compatibility with 3300 and 3000-series monitoring systems.

For complete wiring diagrams and system specs, download the official datasheet. Get all the technical details for the entire 3300 XL NSv transducer system. Download the Full PDF Datasheet Here.

Contact Us for Pricing & Orders:
Interested in the Bently Nevada 3300 NSv (330904-08-15-05-11-00)? Reach out to our sales team.
