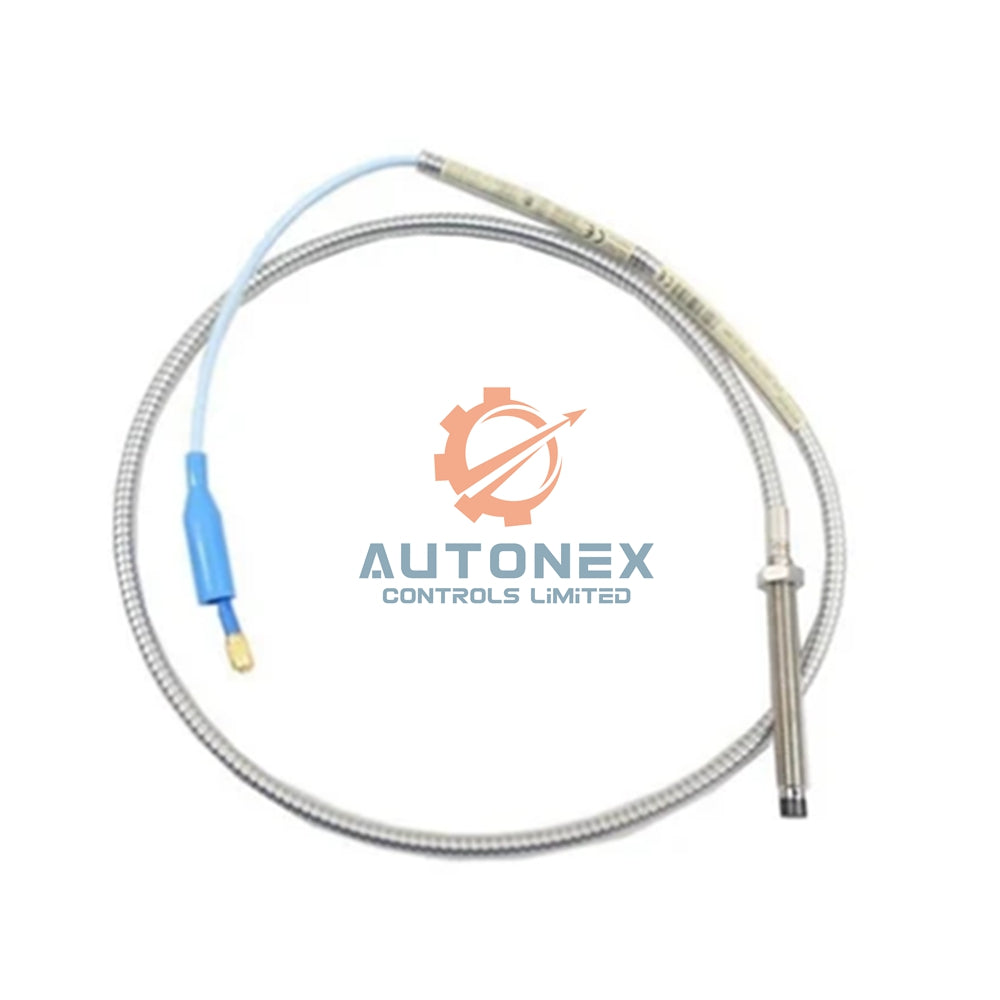

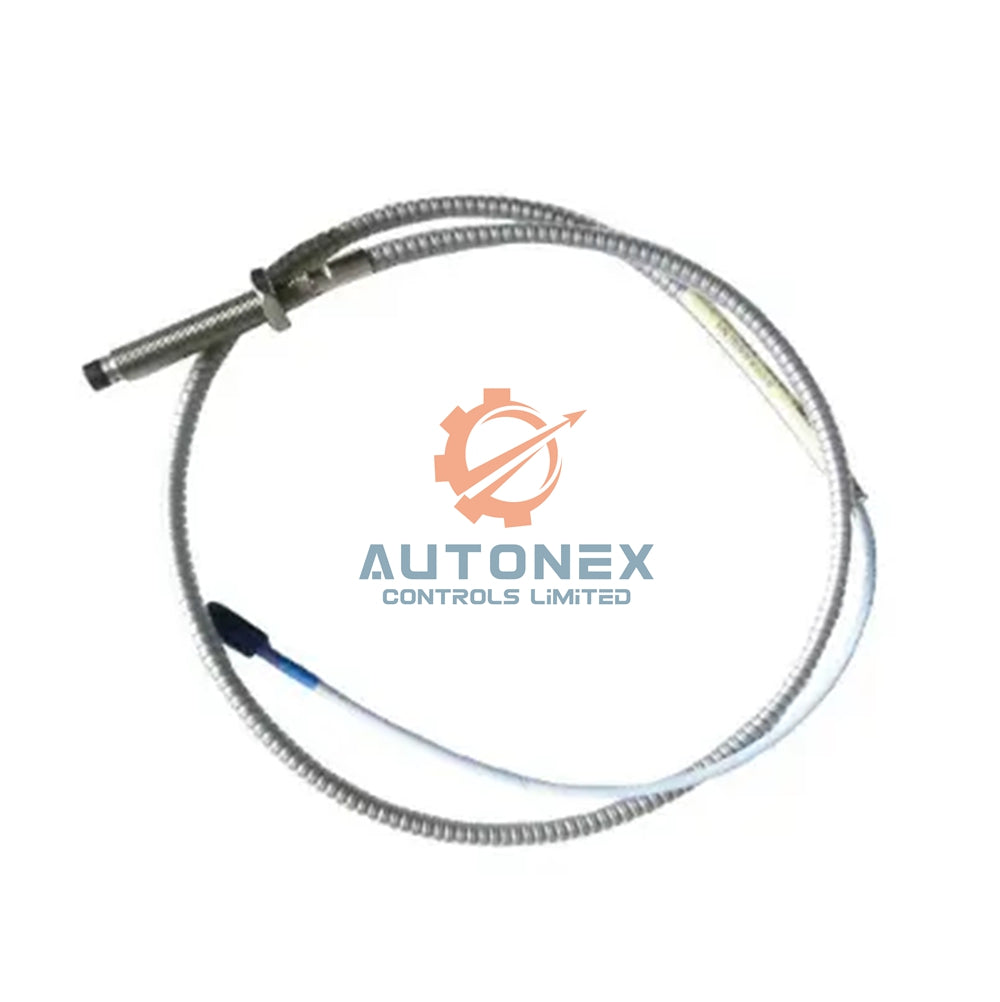

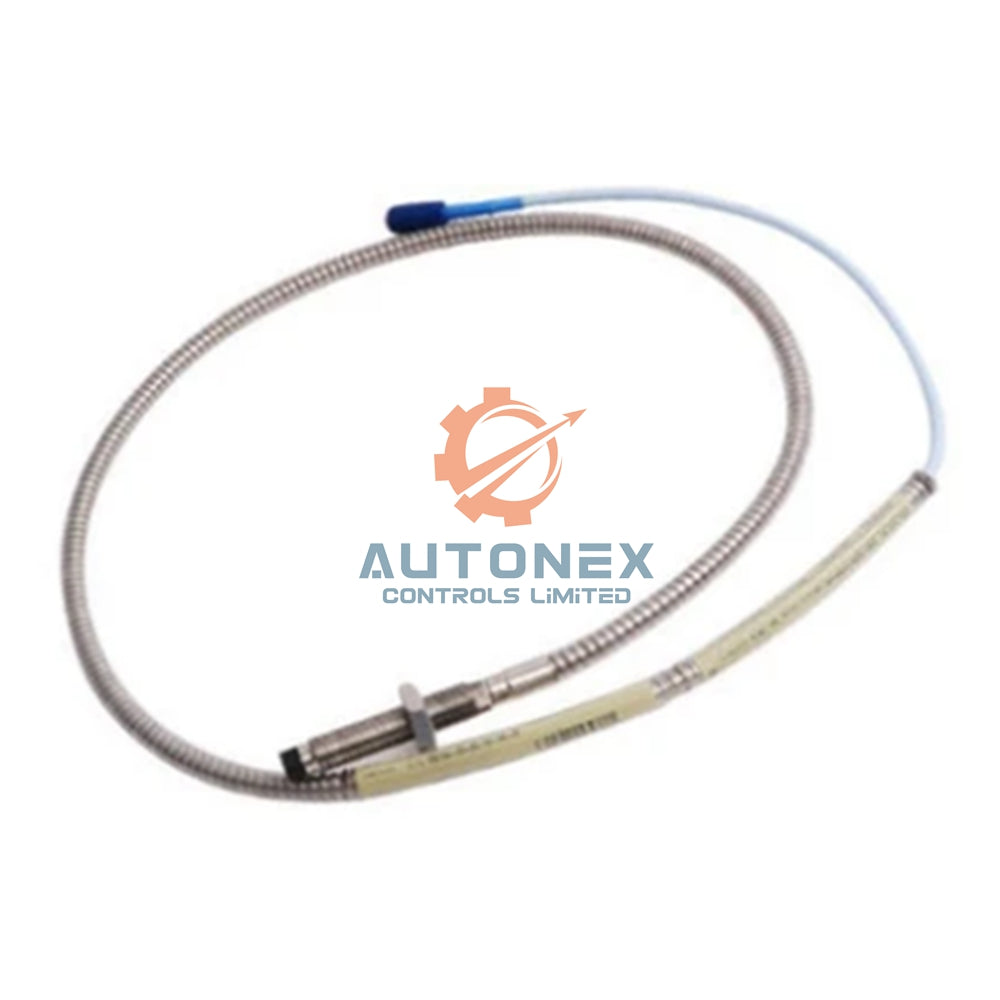

Bently Nevada - 330904-08-10-10-12-00 - Proximity Probe

Bently Nevada 3300 NSv Proximity Probe

Part Number and Ordering Information

• Complete Part Number: 330904-08-10-10-12-00
• Base Model: 330904 - This code identifies a 3300 NSv Probe with an M8x1 thread and stainless steel armor.
• Unthreaded Length: Suffix -08 specifies an 80 mm unthreaded section on the probe body.
• Case Length: Suffix -10 defines a shorter 100 mm overall case length.
• Cable Length: Suffix -10 indicates a 1.0 meter (39 inch) total integrated cable.
• Connector Type: Suffix -12 means a Miniature Coaxial ClickLoc connector with FluidLoc cable sealing.
• Agency Approval: Suffix -00 confirms no specific agency approval is required.

Electrical and Performance Specifications

• Probe DC Resistance: For the 1.0m length, resistance is 4.2 Ω ± 0.5 Ω.
• Cable Electrical Properties: Extension cable has a center resistance of 0.220 Ω/m and shield resistance of 0.066 Ω/m.
• Cable Capacitance: The typical capacitance is 69.9 pF per meter (21.3 pF/ft).
• Field Wiring Requirements: Use 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad cable for best results.
• Maximum Wiring Distance: You can run field wiring up to 305 meters (1,000 feet) to the monitor.

Core Sensing Specifications

• Linear Measurement Range: The probe accurately measures gaps from 0.25 mm to 1.75 mm (10 to 70 mils).
• Recommended Initial Gap: Always set the installation gap to 1.0 mm (40 mils).
• Output Scale Factor: The system provides an Incremental Scale Factor (ISF) of 7.87 V/mm with a defined tolerance.
• Linearity (DSL): The Deviation from Straight Line is less than ±0.06 mm (2.3 mils) across the range.
• Frequency Response: It delivers a flat response from 0 to 10 kHz with standard cable lengths.

Frequently Asked Questions (FAQ)

• Q: Is this probe original and in stock?
  A: Yes, we supply only authentic, brand-new Bently Nevada products and maintain stock for quick shipment.
• Q: What is the benefit of the "-12" connector suffix?
  A: The -12 suffix provides a ClickLoc connector with FluidLoc sealing, offering superior moisture and contaminant protection.
• Q: What is the difference between the -10 and -15 case length?
  A: The -10 suffix indicates a 100 mm case, which is more compact than the 150 mm (-15) option, useful in space-constrained installations.
• Q: How do you ship, and what is the return policy?
  A: We process orders promptly and ship via DHL, FedEx, or UPS within 5 days. We support a 30-day return policy for your confidence.
• Q: Can I use this with my existing 3300 monitoring system?
  A: Absolutely. The Bently Nevada 330904-08-10-10-12-00 is fully compatible with standard 3300 and 3000 series monitor frames.

Get the complete system engineering data. For full wiring diagrams, temperature curves, and installation details, download the official manual. Download the Full 3300 XL NSv Datasheet PDF Here.

Contact for Quotes and Support:
For information on the Bently Nevada 3300 NSv (330904-08-10-10-12-00), contact our sales team.
