Bently Nevada - 330904-00-10-10-11-00 Proximity Probe

Product Overview: Bently Nevada 3300 NSv Proximity Probe

Product Identification & Configuration

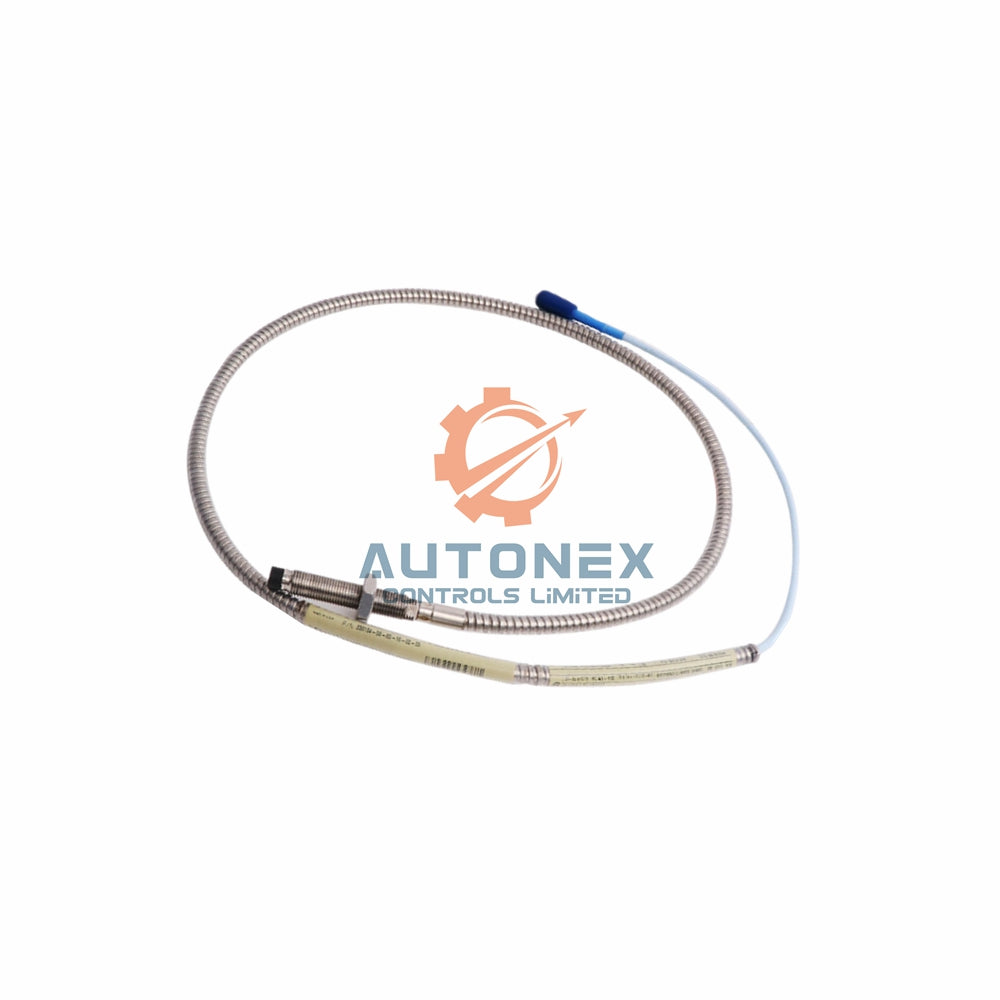

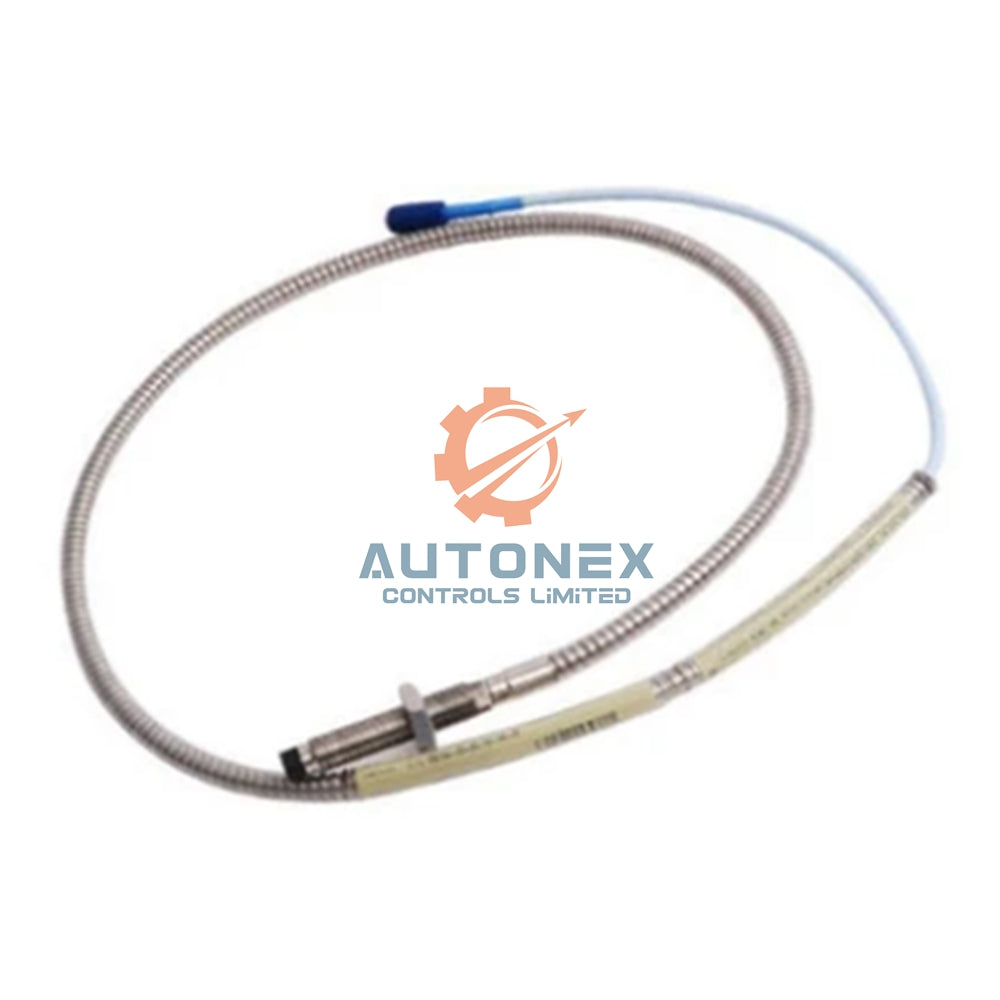

• Product: Bently Nevada 3300 NSv Proximity Probe
• Part Number: 330904-00-10-10-11-00

Model Number Breakdown

• 330904 - This code identifies the probe series with enhanced chemical resistance.
• 00 - Specifies an 0 mm unthreaded length (fully threaded probe body).
• 10 - Indicates a 100 mm total case length.
• 10 - Denotes a 1.0 meter (39 inch) integrated cable length.
• 11 - Defines the connector as a Miniature coaxial ClickLoc with protector and FluidLoc cable.
• 00 - Confirms no specific agency approval is required for this model.

Key Mechanical & Material Features

• Tip Material: The sensing tip is made from durable PPS plastic for corrosion resistance.
• Case Material: The probe body is constructed from stainless steel AISI 304.
• Thread Specification: It features a standard M8x1 mounting thread.
• Installation Note: The maximum recommended thread engagement is 12 mm.
• Cable Type: The unit uses a 75 Ω coaxial cable with FEP insulation.
• Length Options: This series offers cables in 0.5 m, 1 m, 5 m, and 7 m standard lengths.
• Handling Care: Maintain a minimum bend radius of 25.4 mm (1 inch).

Performance & Electrical Specifications

• Linear Range: The standard 1.5 mm (60 mils) range operates from 0.25 to 1.75 mm.
• Optimal Gap: For best performance, set the gap to 1.0 mm (40 mils).
• Scale Factor: Sensitivity is 7.87 V/mm (200 mV/mil) with a ±12.5%/-20% tolerance.
• Line Deviation: Accuracy is better than ±0.06 mm (2.3 mils) deviation.
• Frequency Response: The probe offers a flat 0 to 10 kHz response.
• Target Requirements: Minimum target size is 8.9 mm; 13 mm or larger is recommended.
• Probe Resistance: At 1.0m cable length, resistance is 4.2 ± 0.5 Ω.
• Cable Data: Center conductor resistance is 0.220 Ω/m; capacitance is 69.9 pF/m.
• Field Wiring: Use three-conductor shielded triad cable for runs up to 305 m (1,000 ft).

Frequently Asked Questions (FAQ)

• Q: What does "00" for unthreaded length mean?
  A: It means this 3300 NSv probe has 0 mm unthreaded length, so the threads run the full length of the case, ideal for direct mounting in threaded holes.
• Q: What is the advantage of the PPS plastic tip?
  A: The PPS plastic tip offers superior resistance to harsh chemicals and corrosives compared to standard materials.
• Q: Is the 1.0m FluidLoc cable more durable?
  A: Yes, the FluidLoc cable provides enhanced protection against moisture and fluid ingress in wet environments.
• Q: Is part number 330904-00-10-10-11-00 in stock?
  A: Yes, this specific configuration is in stock and available for immediate shipment.
• Q: What is your shipping and return policy?
  A: We ship within 5 business days via global carriers (DHL, UPS, FedEx) and offer a 30-day return policy.
• Q: Do you supply original Bently Nevada documentation?
  A: Yes, you can download the full original datasheet via the link below for all technical details.

For complete installation instructions and wiring diagrams, download the official manual: 3300 XL NSv Proximity Transducer System Datasheet - 147385.

Contact Information Inquiries: To order the 3300 NSv probe or for technical support, email sales@nex-auto.com or WhatsApp: +86 153 9242 9628.

Partner: NexAuto Technology Limited.
