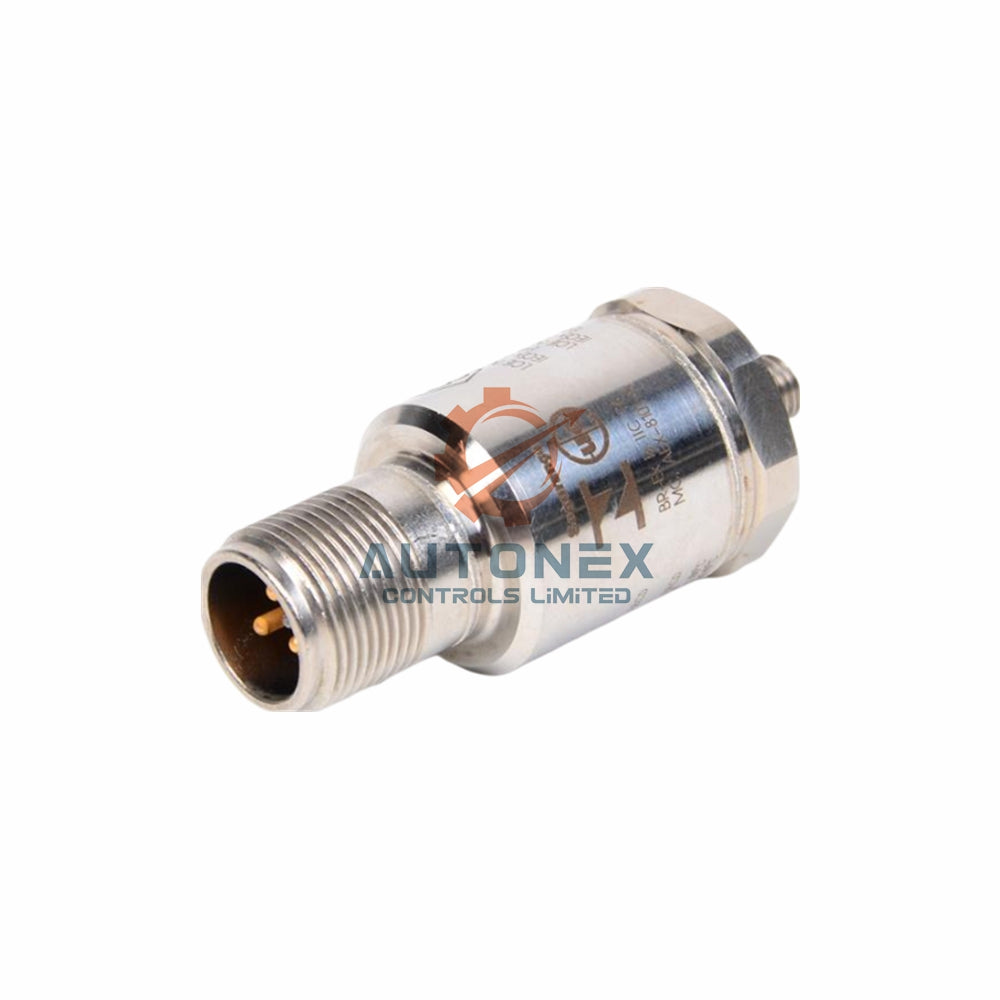

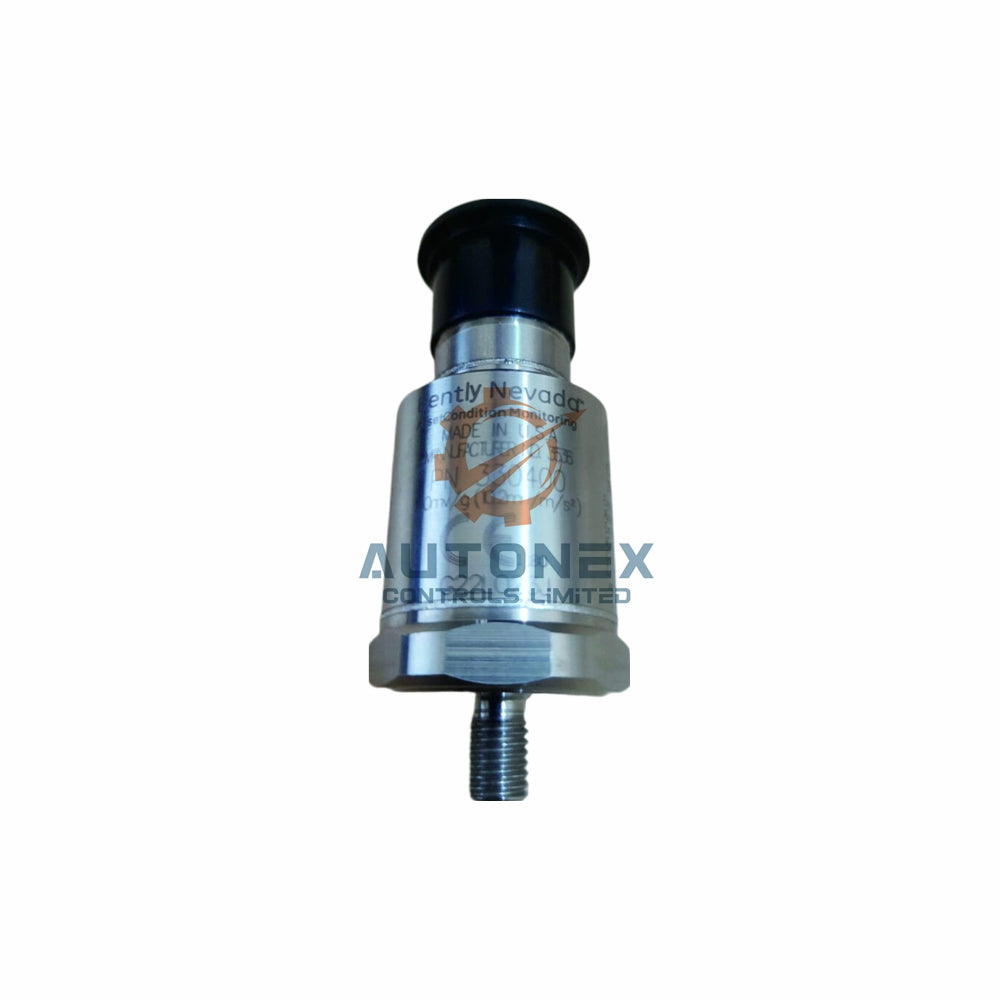

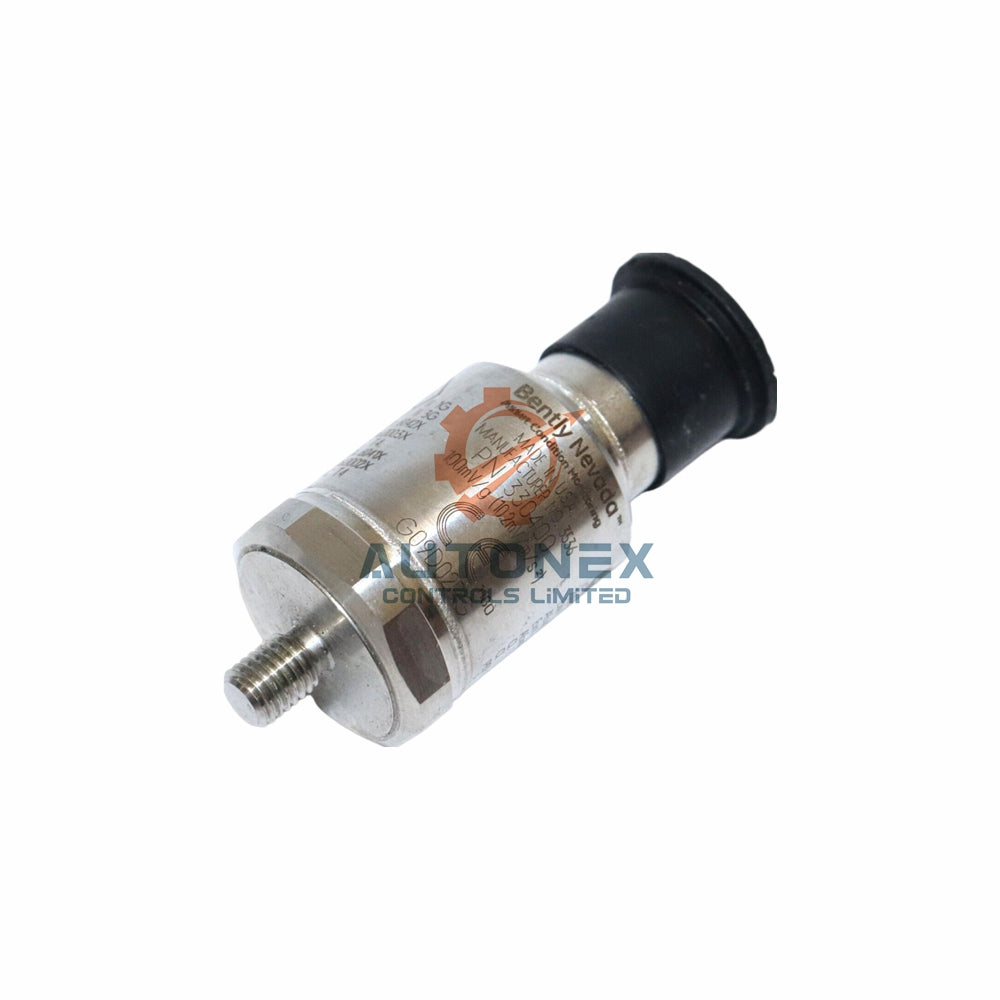

Bently Nevada 200350-12-00-01 Accelerometer: Rugged Vibration Sensing for Extreme Conditions

Technical Specifications

• Brand: Bently Nevada
• Model: 200350-12-00-01
• Complete Suffix Information:
  • 200350: Industrial accelerometer platform
  • -12: 100 mV/g sensitivity, top exit, 10 ft integral cable
  • -00: Standard 1/4-28 female mounting thread
  • -01: Enhanced environmental sealing (IP68 certified)
• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz) ±3 dB
• Measurement Range: ±50 g peak
• Amplitude Linearity: ±1%
• Transverse Sensitivity: ≤7%

Electrical Characteristics

• Output Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current: 2 to 20 mA
• Output Impedance: Less than 150 ohms
• Discharge Time Constant: ≥0.3 seconds
• Electrical Isolation: Greater than 108 ohms
• Settling Time: 2 seconds to 1% of bias

Physical & Environmental Durability

• Housing Material: Stainless steel with welded hermetic seal
• Weight: 0.051 kg (51 grams)
• Height: 1.65 inches (4.24 cm)
• Shock Resistance: 5,000 g peak
• Operating Temperature: -65°F to 250°F (-54°C to 121°C)
• Humidity Protection: 100% condensing, zero water ingress
• Ingress Protection: IP68 certified for dust and submersion

Download Technical Documentation

• Download the official 200350 and 200355 Accelerometers PDF manual: 200350-12-00-01 Datasheet
• This document includes wiring diagrams, mechanical drawings, and CE declarations for the 200350-12-00-01

Shipping & Inventory Status

• Carriers: FedEx, UPS, DHL Express worldwide
• Dispatch: Orders ship within 5 business days
• Stock Status: 200350-12-00-01 units are new and ready to ship
• Return Policy: 30-day return window for eligible items

Frequently Asked Questions

• What does the -01 suffix add to this model? The -01 suffix provides IP68 certification and enhanced environmental sealing for washdown and submersion applications.
• Can this sensor measure low-frequency vibration? Yes. The 0.5 Hz low-end response and 0.3 second discharge time constant enable accurate low-speed machinery monitoring.
• What is the difference between -11 and -12 cable exit? The -12 suffix specifies top exit cable routing versus -11 side exit. Top exit suits overhead cable trays and vertical installations.
• Is this sensor compatible with 4-20 mA systems? No. The 200350-12-00-01 outputs an AC vibration signal requiring IEPE constant current power.
• Does IP68 allow permanent submersion? Yes. IP68 certification permits continuous immersion beyond 1 meter depth per manufacturer specifications.
• Do you offer volume pricing? Contact our sales team for volume discount information on the 200350-12-00-01.
