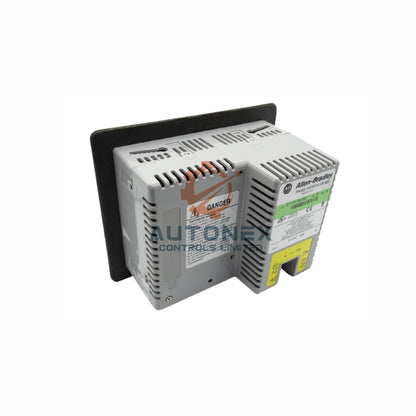

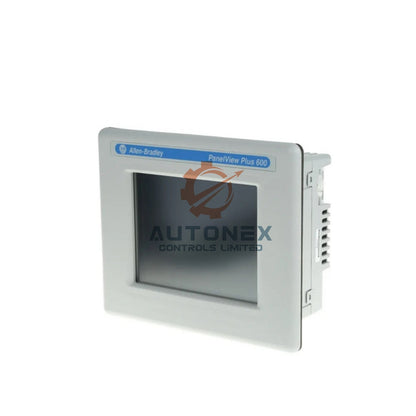

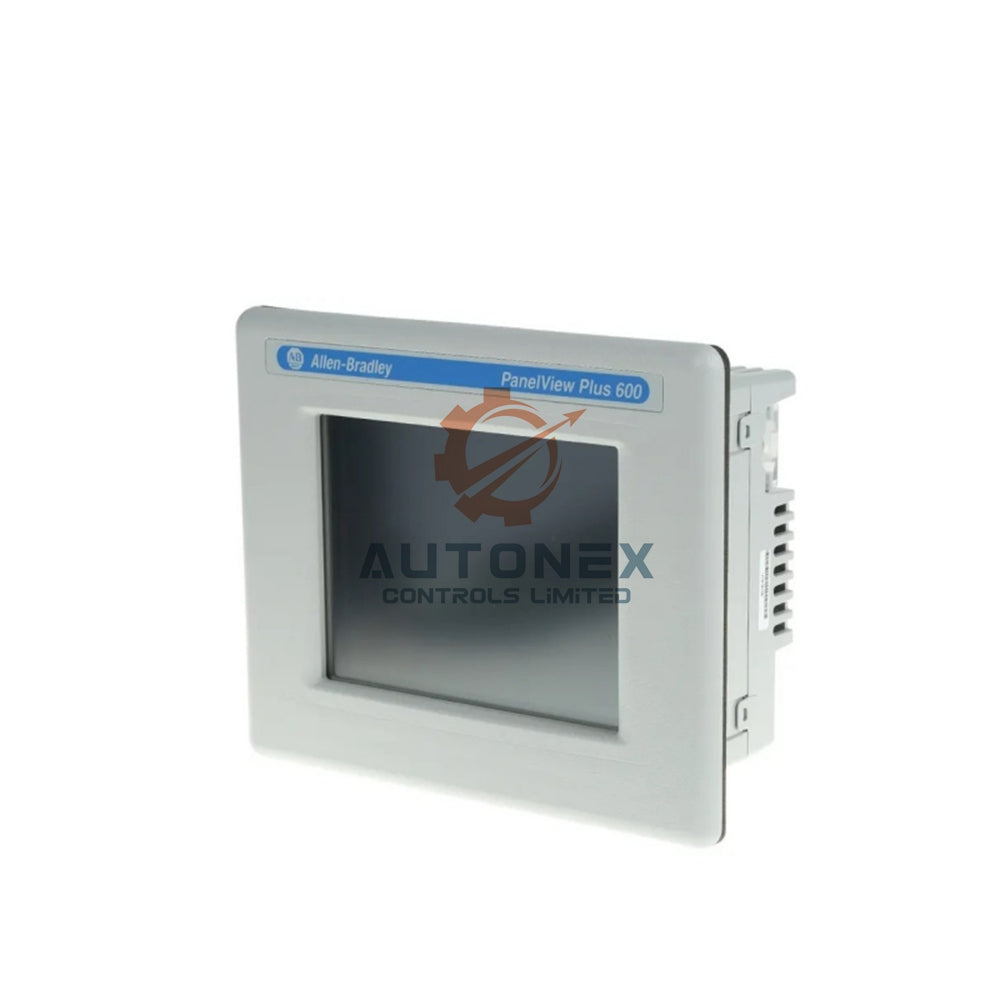

Allen-Bradley 2711P-T6C8D Industrial Touchscreen Terminal

Allen-Bradley PanelView Plus 600 Operator Interface Terminal

Core Technical Specifications & Display

• The terminal features a 5.7-inch color display with an analog resistive touchscreen.
• It requires a 24 Volts DC power supply, operating within a range of 18 to 32 V DC.
• Typical power consumption is 9 Watts, with a maximum of 15 Watts.
• We recommend using a PELV, SELV, or Class 2 certified power source.
• The Allen-Bradley 2711P-T6C8D draws approximately 0.6 Amps at its nominal voltage.

Communication & Connectivity

• This HMI offers versatile communication ports for easy system integration.
• Standard interfaces include Ethernet, USB, and RS-232.
• It also supports the DH+ network protocol for connecting to older systems.

Physical Dimensions & Environmental Ratings

• The enclosure dimensions are 6 x 7.2 x 2.6 inches (HxWxD).
• You need a panel cut-out of 4.86 x 6.1 inches for proper installation.
• The unit weighs about 1.31 pounds (0.59 kg).
• Its NEMA/UL Type 12, 13, 4X rating protects against dust and water spray.
• The operating temperature range is 0 to 55°C (32 to 131°F).

Frequently Asked Questions (FAQ)

• Q: Is this unit brand new and original?
  A: Yes, we supply only new and original Allen-Bradley products.
• Q: How do I power this HMI terminal?
  A: You must use a 24V DC power supply between 18-32V DC. Ensure it is PELV/SELV or Class 2 rated for safety.
• Q: What communication options does it have?
  A: It includes Ethernet, USB, RS-232, and DH+ ports for flexible connectivity.
• Q: What is your return policy?
  A: We support a 30-day return policy for unused items in their original packaging.
