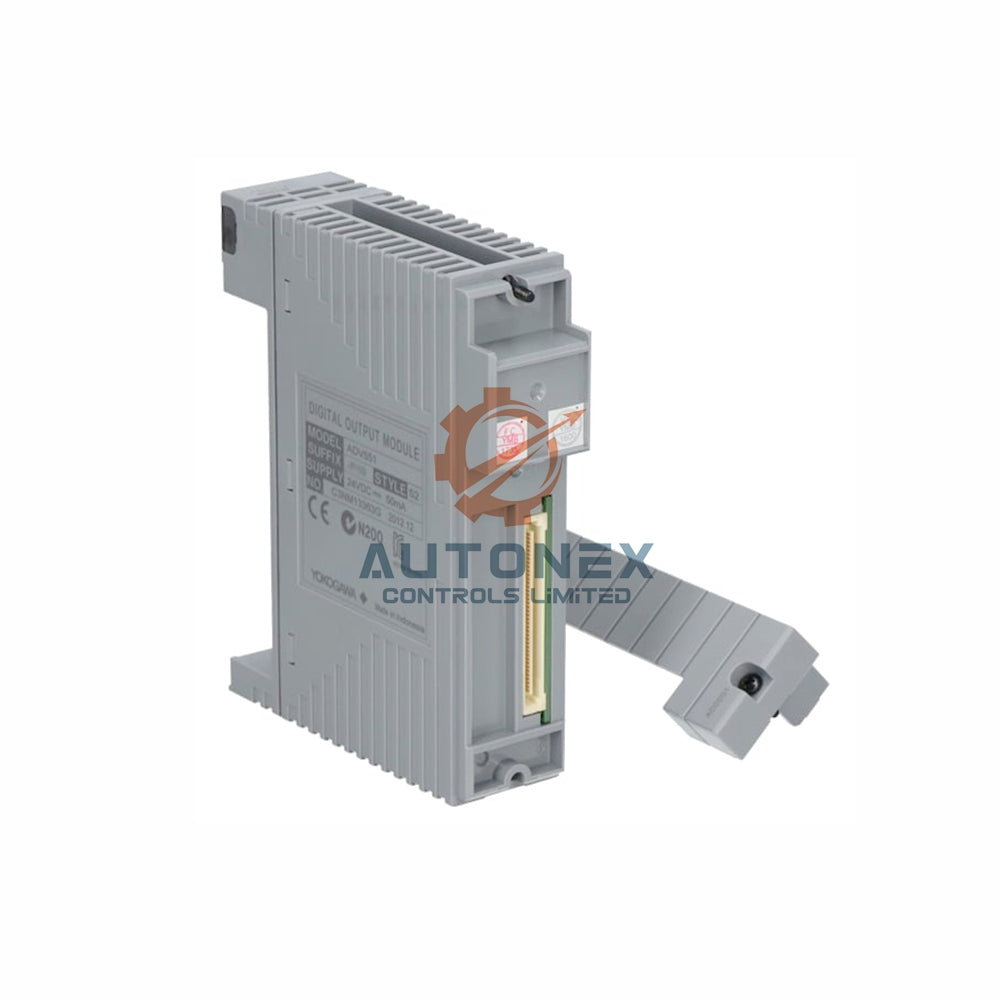

ADV551-P10 24V DC Output Module | Yokogawa

ADV551-P10 Digital Output Module – 32-Channel Isolated

• Brand & Model: Yokogawa ADV551-P10 – 32-channel isolated digital output.
• Output Channels: 32 channels with current sink output format.
• Rated Voltage: 24 V DC nominal, with external supply range of 20.4 to 26.4 V DC.
• Load Current: 50 mA per channel rated, maximum 100 mA per channel at 26.4 V.
• Output ON Voltage: Maximum 2 V DC; leakage current ≤ 0.1 mA when OFF.
• Withstanding Voltage: 2 kV AC between output and system (1 minute); 500 V AC between commons (every 16 channels).
• Response Time: 3 ms or less for status output; 10 ms or less for mixed status and pulse outputs.
• Pulse Width: Programmable from 8 ms up to 7200 seconds.
• Pulse Resolution: 8 ms base, with additional ON/OFF delay up to 1 ms.
• Functions: Status output, one-shot pulse width output, and time-proportioning ON/OFF control.
• Current Consumption: 700 mA (5 V DC) and 60 mA (external 24 V supply).
• Weight: Approx. 0.20 kg – lightweight and compact.
• External Connections: Pressure clamp terminal, dedicated AKB331 cable, or MIL connector cable.
• Option: /D5A00 includes KS Cable Interface Adapter (Model ATD5A-00) for 32-channel digital connection.

Frequently Asked Questions (FAQ)

• Q: Is the ADV551-P10 brand new and original?
  A: Yes, we supply 100% new genuine Yokogawa modules.
• Q: What is the maximum load current per channel?
  A: Rated 50 mA, with maximum 100 mA per channel at 26.4 V DC.
• Q: Can I use pulse width output with this module?
  A: Yes, the ADV551-P10 supports pulse width output from 8 ms to 7200 s.
• Q: What is the output response time?
  A: 3 ms for status output, and 10 ms for mixed status and pulse outputs.
• Q: Do you have stock for immediate shipment?
  A: Yes, we maintain regular stock. Orders ship within 5 days.
• Q: What is the return policy?
  A: We accept returns within 30 days for unused items in original condition.
• Q: What cables are compatible?
  A: Pressure clamp terminal, dedicated AKB331 cable, or MIL connector cable.
• Q: Does this module have isolation?
  A: Yes, it provides 2 kV AC isolation between output signals and the system.
