AAI141-S00 Yokogawa Analog Input Module

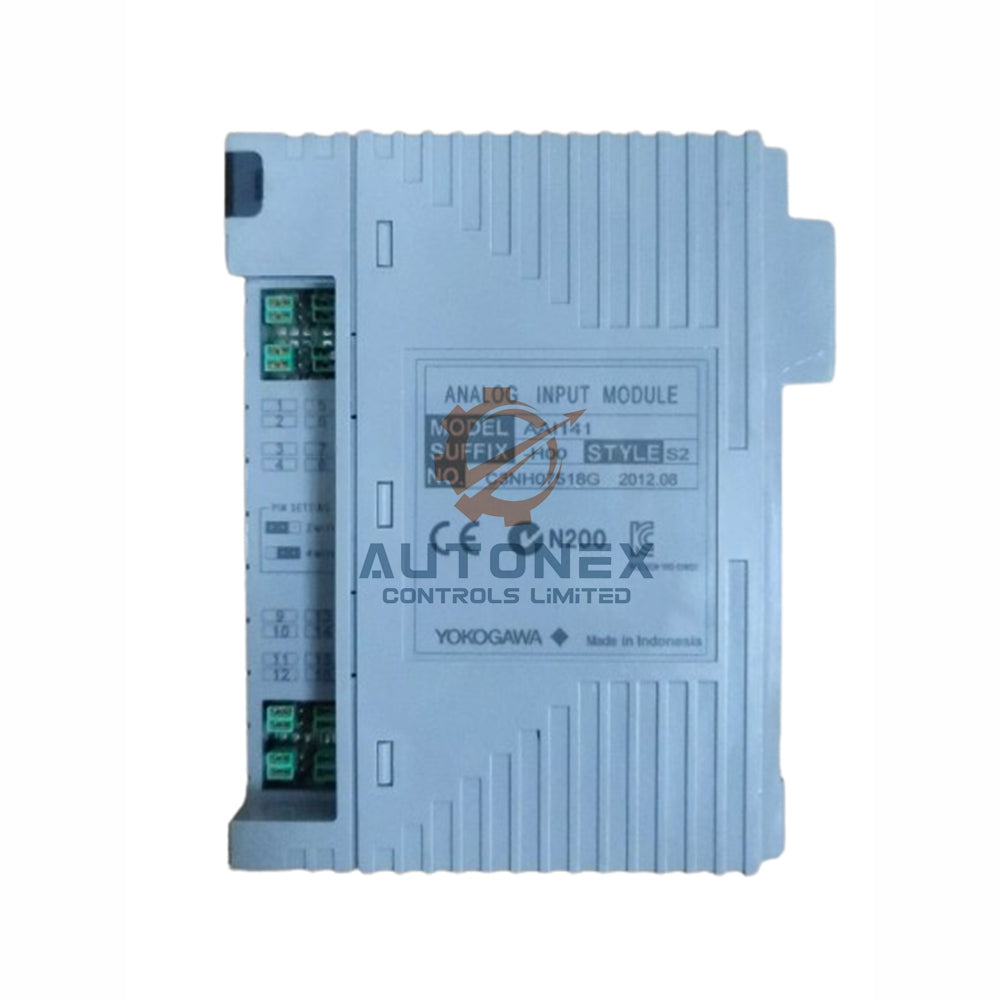

Yokogawa AAI141-S00 16-Channel Analog Input Module

• Model & Manufacturer: Yokogawa AAI141-S00 from Yokogawa Electric Corporation.
• Input Channels: 16 non-isolated channels for 4 to 20 mADC signals.
• Input Resistance (Power ON): 400 Ω at 20 mA to 1000 Ω at 4 mA.
• Input Resistance (Power OFF): 500 kΩ or higher.
• Accuracy: ±16 μA ensures precise current measurement.
• Data Update Period: 10 ms for fast loop updates.
• Step Response Time: 100 ms for dynamic signal tracking.
• Transmitter Power Supply: 14.8 V (at 20 mA) to 26.4 V (at 0 mA). Output current limit is 27 mA.
• 2-Wire / 4-Wire Setting: Selectable per channel via setting pin.
• Drift due to temperature: ±16 μA per 10°C ambient change.
• Current Consumption: 310 mA (5V DC) and 450 mA (24V DC).
• Weight: 0.2 kg, lightweight for easy installation.
• External Connection: Pressure clamp terminal, KS cable, or MIL connector cable.
• HART Communication: Available for smart device integration.

Frequently Asked Questions (FAQ)

• Q: Is this AAI141 module brand new? A: Yes, we supply only brand new, original Yokogawa modules.
• Q: Do you have the AAI141-S00 in stock? A: Yes, we maintain ample stock for quick shipment.
• Q: What is the typical lead time? A: We ship within 5 days after order confirmation.
• Q: Which carriers do you use? A: We use FedEx, UPS, and DHL for reliable delivery.
• Q: Can I return the module if it doesn't fit? A: Yes, we support 30-day returns for unused items.
• Q: Does it support HART protocol? A: Yes, the AAI141 includes HART communication capability.
• Q: What is the input resistance when powered off? A: It is 500 kΩ or higher.
