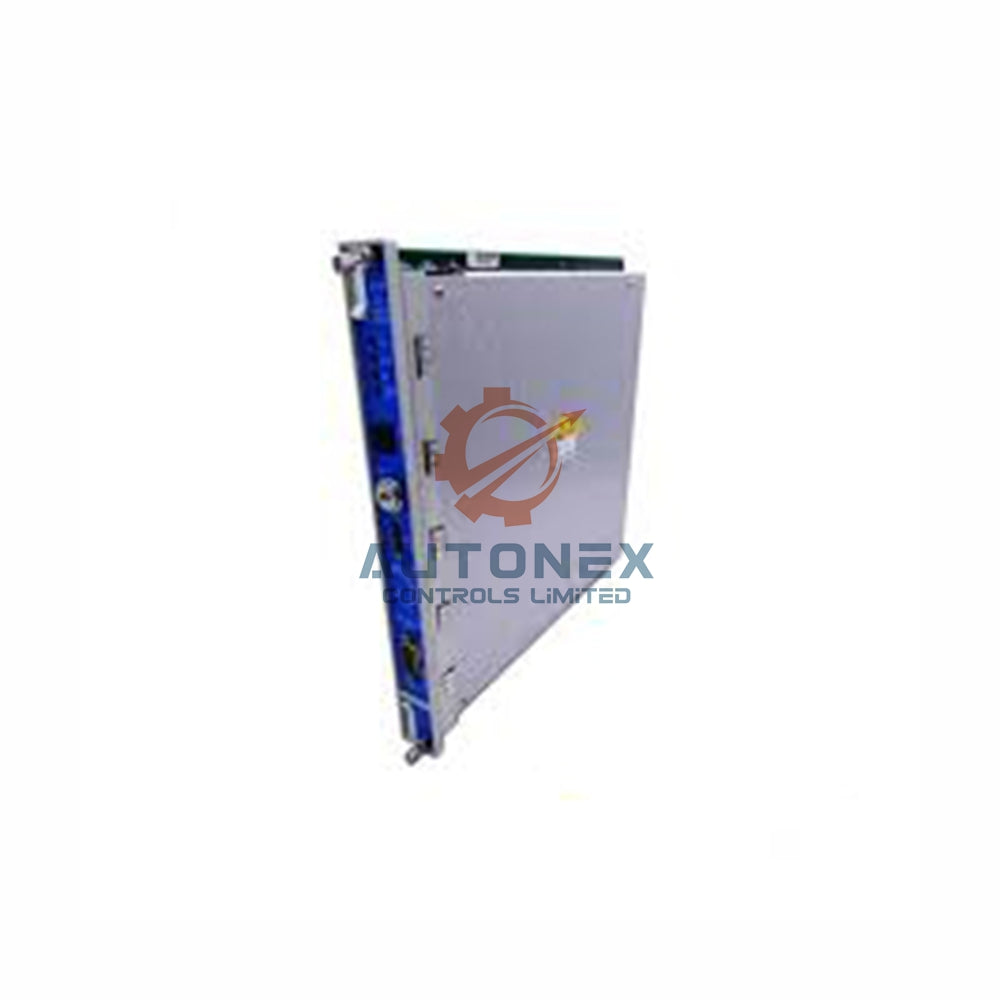

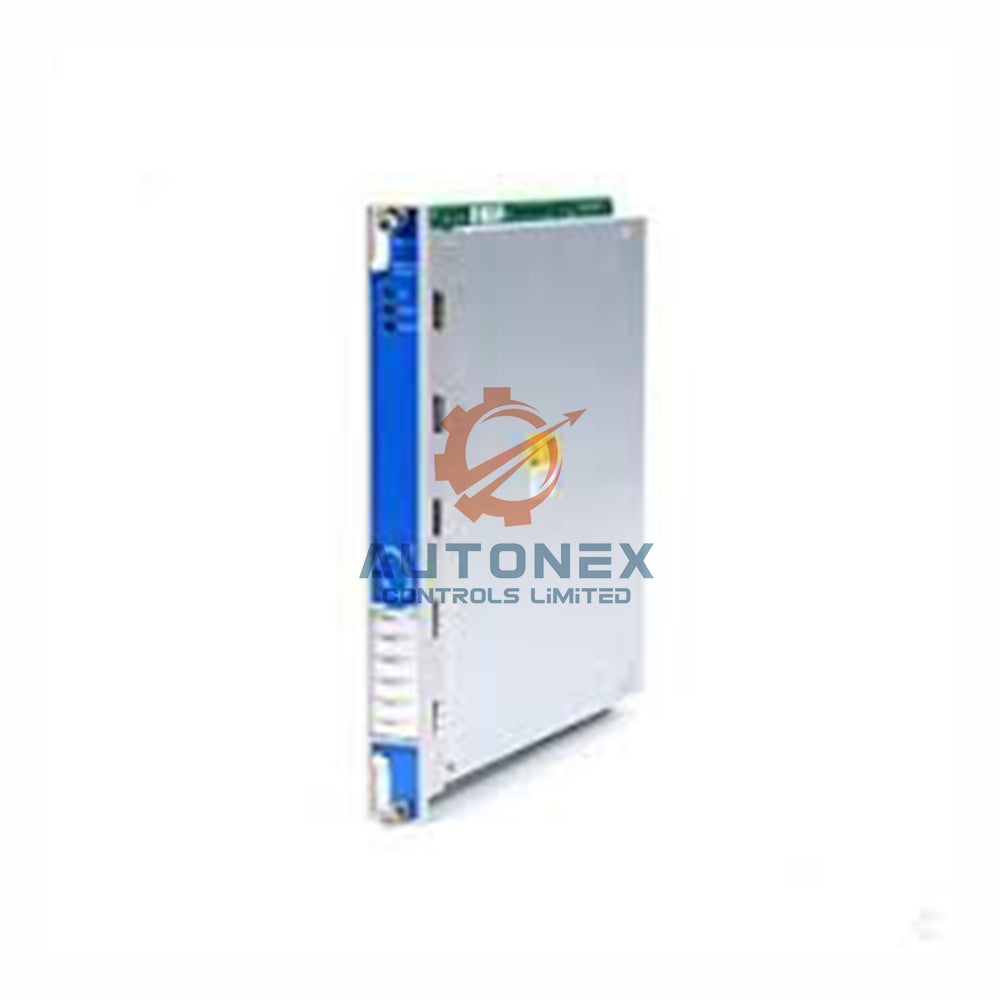

3500/94M-04-00-02 Bently Nevada VGA Display Unit

Bently Nevada 3500/94M-04-00-02 VGA Display Module – Industrial Monitoring Solution

Key Technical Specifications of 3500/94M VGA Display Unit

• Brand: Bently Nevada
• Model No.: 3500/94M-04-00-02
• Product Type: VGA Display Module
• Display Size and Mounting: 10" display, independent mount
• KVM Extender and Display Router Box Cables: None (00)
• Agency Approval Option: Multi (CSA/ATEX/IECEx) – only for 10" display (02)
• Weight (module): 0.73 kg (1.6 lb)
• Total system weight including I/O module: 1.07 kg

Power, Inputs and Outputs – Clear Communication

• Power consumption: 4.6 watts maximum
• High-speed network: Monitors status, data and values
• RS232 port (I/O): Touch controller data transmission
• OK LED: Indicates proper operation of the 3500/94M module
• TX/RX LED: Shows communications between other system modules
• VGA port (I/O): Analog red, green, blue and sync signals to the display
• Front Port: 24 Vdc power out, VGA signal out, and touch commands in

Environmental Limits – Built for Tough Conditions

• Operating Temperature: -20°C to 65°C (-22°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95% non-condensing
• Anti-interference ability: Complies with EN 61000-6-2 and EN 61000-6-4 EMC standards
• Electrical Safety: CSA C22.2 61010-1, UL EN 61010-1, Directive 2014/35/EU
• RoHS compliant: Directive 2011/65/EU

Physical Characteristics and Dimensions – Rack Ready

• 3500/94M VGA Display Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in)
• I/O Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• Rack Space – Monitor Module: 1 full-height front slot
• Rack Space – I/O Module: 1 full-height rear slot

Display Monitor Options – Advantech Integration

• Advantech 10" Display (ANA-D3510-100-A1): 10" diagonal LCD with LED backlight
• Industrial hardened: Yes, for continuous duty
• Mounting Styles: Face mount, 19" rack mount, panel mount, independent mount
• Power Supply: 24 Vdc included (range 10 Vdc to 28 Vdc)
• Inrush Current: 3.5 A @ 24 V (< 500 µs) | Operating Current: < 500 mA
• Temperature Rating: -20°C to 65°C (-4°F to 149°F)
• Touch Interface: GFG Resistive Touch Screen
• Agency Approvals: CE, UL, CUL, Class I Div 2, ATEX/IECEx
• IP rating: Designed for IP54

Compatible 15" Advantech Display (FPM-8151) – Alternative Option

• Manufacturer: Advantech – Model FPM-8151 (15" diagonal)
• Type: LCD with LED backlight, industrial hardened
• Mounting: 19" rack mount or panel mount
• Power: 24 Vdc (range 12 Vdc to 24 Vdc), Inrush 2.62 A @ 24 V
• Operating Current: < 500 mA | IP65 front protection
• Temperature range: 0°C to 60°C (32°F to 140°F) – needs heated enclosure below 0°C
• Touch Interface: Resistive | Agencies: CE, UL, Class I Div 2
• Weight: 8.5 kg (18.75 lb) shipping

KVM Extender and Environmental Restrictions

• KVM Extender Mounting: Shelf top | Power input: 12 Vdc and 5 Vdc
• Agencies: UL certification for North America only
• Temperature range (KVM): 0ºC to 45ºC (32ºF to 113ºF)
• Humidity (KVM): 80% non-condensing
• Class I Division 2: KVM Extender Receiver approved for hazardous areas in North America
• KVM Transmitter: Not certified for hazardous usage; install in safe area or approved enclosure
• NEMA 4X: Not approved for this KVM unit

Firmware, Software and Hardware Requirements – For Full Functionality

• The 3500/94M requires the 3500/22 Transient Data Interface (TDI) module.
• Required firmware versions: 3500/94M Firmware 4.06 Rev. C, 3500/22 Firmware Rev 1.71
• Software requirements: Rack Config Rev 5.6, Op Display Rev 2.21, Data Acquisition Rev 1.22

Frequently Asked Questions (FAQ) about 3500/94M-04-00-02

• Q: Is this module brand new original?
  A: Yes, we provide 100% new original Bently Nevada 3500/94M-04-00-02 modules.
• Q: What is the operating temperature range for this display?
  A: The 10" display works from -20°C to 65°C as per the 3500/94M spec sheet.
• Q: Does this module support hazardous area approvals?
  A: Yes, the 3500/94M-04-00-02 includes Multi approval (CSA/ATEX/IECEx) for the 10" display.
• Q: What power supply does the display need?
  A: The Advantech 10" display uses 24 Vdc (acceptable range 10 Vdc to 28 Vdc).
• Q: Do you have the 3500/94M in stock?
  A: Yes, we keep the 3500/94M-04-00-02 in stock and ship within 5 days.
• Q: Which couriers do you use for delivery?
  A: We ship with FedEx, UPS, or DHL for global fast delivery.
• Q: Can I return the module if it doesn't fit my system?
  A: Yes, we support a 30-day return policy from the delivery date.
• Q: Does this module require a TDI module?
  A: Yes, the 3500/94M needs the 3500/22 TDI module for proper operation.
• Q: What is the humidity tolerance for the main unit?
  A: The module withstands 95% humidity non-condensing without failure.
