3500/15 133300-01 DC Power Input Module Bently Nevada

Bently Nevada 3500/15 133300-01 Low Voltage DC Power Input Module

Core Technical Specifications

• Manufacturer: Bently Nevada (Made in U.S.A.)
• Model: 3500/15 133300-01 – Low Voltage DC Power Input Module
• Input Voltage Range: 20 to 30 Vdc (nominal DC operation)
• Full Rack Current Draw: 11.0 A (maximum load capacity)
• Protection: Under-voltage causes no harm; over-voltage opens the PIM fuse to safeguard equipment

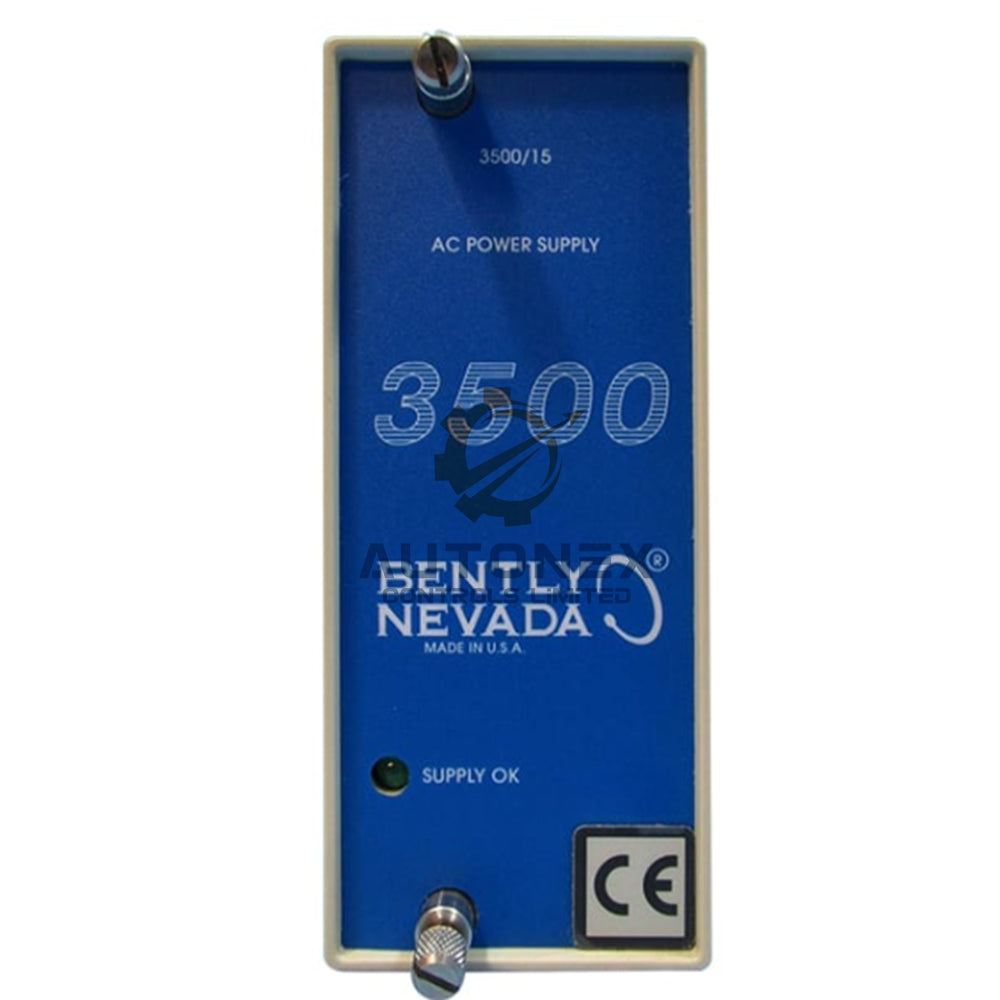

• Front Panel LED: Supply OK LED indicates proper operational status

Physical Dimensions & Rack Integration

• Dimensions (H x W x D): 120.7 mm x 25.4 mm x 114.3 mm (4.75 x 1.0 x 4.5 inches)
• Weight: 0.34 kg (0.75 lb) – lightweight for easy handling
• Rack Space: Occupies a special half-height slot located directly behind its associated power supply
• Redundancy: Supports dual power supplies; each supply has its own dedicated PIM slot
• Minimum Loading: No minimum rack load is required for operation

Environmental & Hazardous Area Approvals

• Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F) – reliable in extreme conditions
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95% non-condensing for high-moisture environments
• cNRTLus (Hazardous Locations): Class I, Zone 2 (AEx/Ex nA nC ic IIC T4 Gc) and Class I, Division 2 (Groups A, B, C, D); T4 @ -20°C to +65°C
• ATEX/IECEx: II 3 G Ex nA nC ic IIC T4 Gc / Ex ec nC ic IIC T4 Gc; T4 @ -20°C to +65°C

Certifications & Compliance

• FCC: Complies with Part 15 Rules – accepts and does not cause harmful interference
• EMC: EN 61000-6-2 (Immunity) & EN 61000-6-4 (Emissions) for industrial environments
• Electrical Safety: EN 61010-1 per LV Directive 2014/35/EU
• RoHS: Compliant with Directive 2011/65/EU
• Maritime: DNV GL and ABS certifications for ships, offshore units, and steel vessels

Frequently Asked Questions (FAQ)

• Does this PIM work with any Bently Nevada power supply? Yes, the 3500/15 133300-01 is designed for low voltage DC power supplies in the 3500 series rack systems.
• What happens if the input voltage exceeds 30 Vdc? An over-voltage condition opens the fuse on the PIM, protecting the rest of the system.
• Can I use this module in hazardous areas? Absolutely – it carries cNRTLus Class I, Zone 2 and ATEX/IECEx certifications for gas group IIC, T4.
• Is this a genuine new unit? Yes, we supply only brand new, original Bently Nevada 3500/15 133300-01 modules with full traceability.
• How quickly can you ship? We ship within 5 days via FedEx, UPS, or DHL – all orders are processed promptly.
• What is the operating temperature range? The module operates from -30°C to +65°C, with T4 rating from -20°C to +65°C for hazardous locations.
