3500/15 129486-01 Bently Nevada High Voltage DC Power Supply

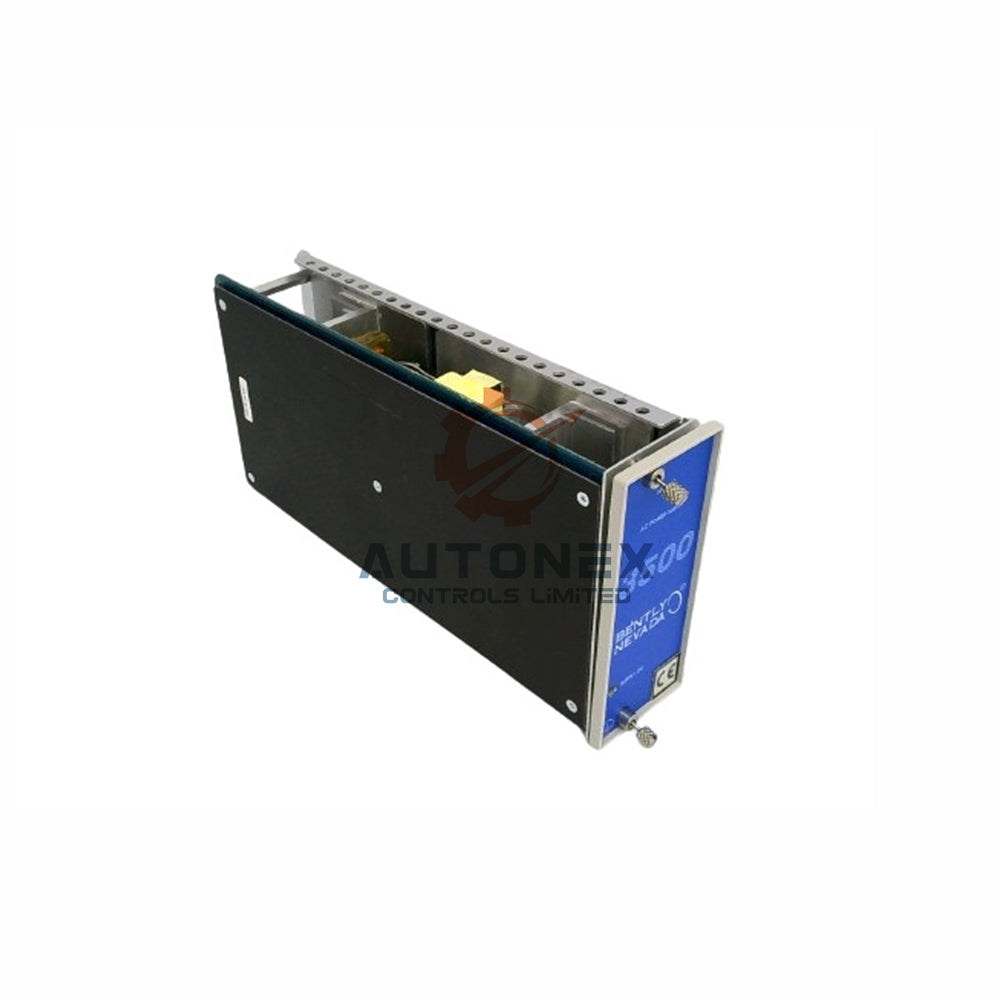

Bently Nevada 3500/15 129486-01 Legacy High Voltage DC Power Supply Module

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/15 129486-01
• Type: Legacy High Voltage DC Power Supply Module
• Input Voltage: 88 to 140 Vdc
• Full Rack Current Draw: 2.5 A (maximum)
• Front Panel LED: Supply OK – indicates normal operation
• Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95% non-condensing
• Dimensions (H x W x D): 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
• Weight: 1.39 kg (3.06 lb)
• Rack Space: Two half-height slots on the left side of the rack
• Minimum Loading: No minimum rack load required

Installation and Mounting

• Mount the 3500/15 129486-01 in either of the two dedicated half-height slots.
• You can install one or two power supplies for redundant operation.
• Ensure the input voltage stays within the 88–140 Vdc range for proper function.
• The module fits standard Bently Nevada racks with no extra loading requirements.
• Connect the High Voltage DC Power Input Module (PIM) as per the system layout.
• Verify the Supply OK LED turns on after installation to confirm normal status.

Package Contents

• 1 x 3500/15 129486-01 Legacy High Voltage DC Power Supply Module
• 1 x High Voltage DC Power Input Module (PIM) – included with the supply
• No additional cables or mounting hardware are included in the package.

Shipping and Logistics

• We ship all orders via FedEx, UPS, or DHL for reliable delivery.
• Orders typically dispatch within 5 business days after purchase confirmation.
• We keep this item in stock – ready for immediate shipment.
• All units are brand new and original from Bently Nevada.
• We offer a 30-day return policy for unused items in original condition.

Frequently Asked Questions (FAQ)

• Q: Is this module compatible with older Bently Nevada racks?
  A: Yes, the 3500/15 129486-01 fits standard Bently Nevada racks using two half-height slots.
• Q: Can I use two power supplies simultaneously?
  A: Absolutely. You can install two units for redundant power, ensuring system reliability.
• Q: What happens if the input voltage drops below 88 Vdc?
  A: An under-voltage condition does not damage the supply or the PIM, but the unit may not operate correctly.
• Q: Does this power supply work in high-temperature environments?
  A: Yes, it operates reliably from -30 °C to +65 °C, suitable for harsh industrial settings.
• Q: Do you have this item in stock?
  A: Yes, we maintain stock of the 3500/15 129486-01 and ship within 5 days.
• Q: What is the maximum current draw for a full rack?
  A: The maximum current draw is 2.5 A for a full rack configuration.
