330909-00-60-70-02-05 Bently Nevada 3300 NSv Probe Armored

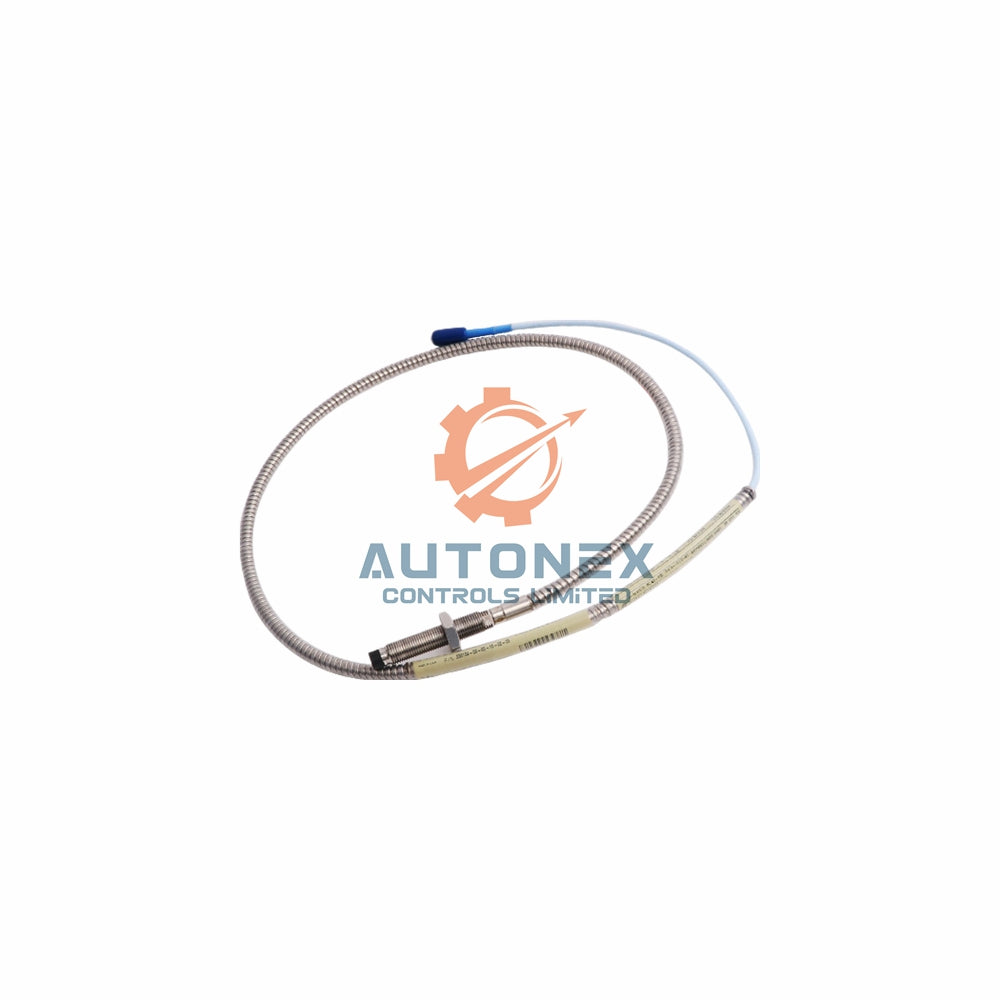

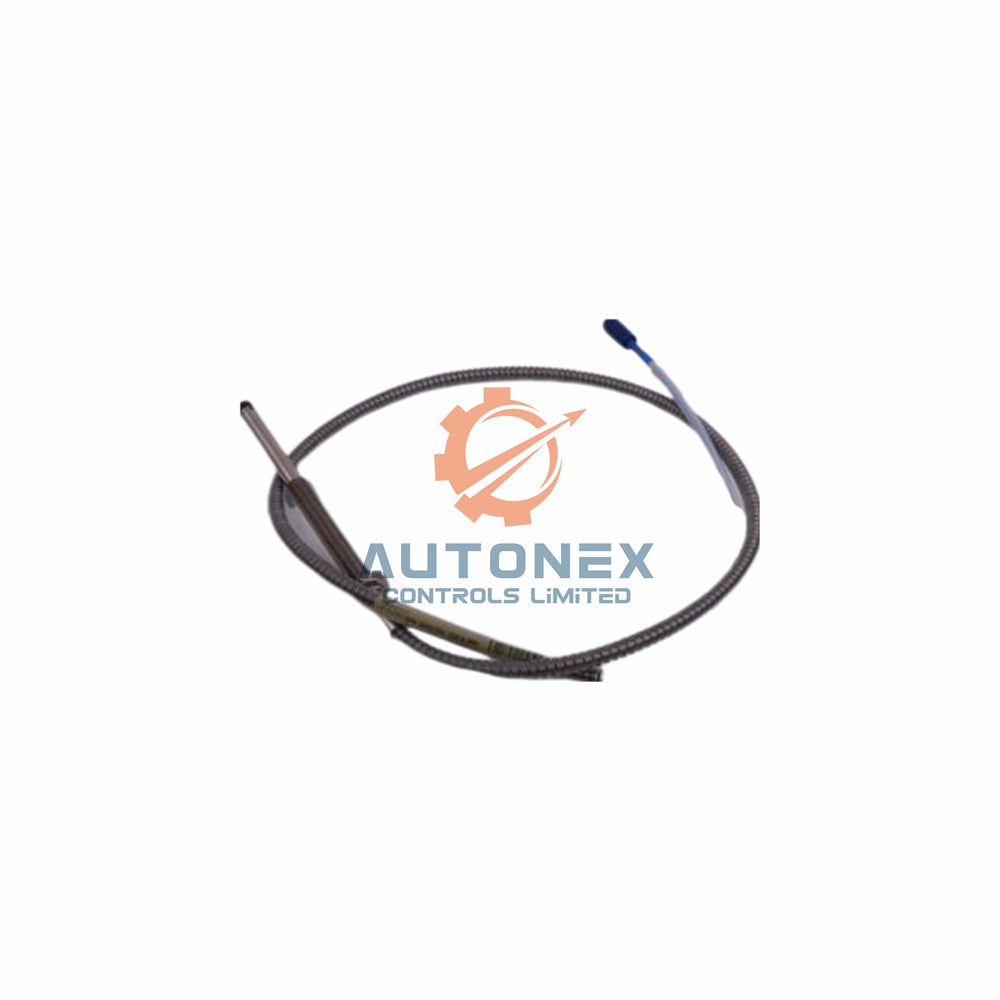

Bently Nevada 3300 NSv Proximity Probe – Model 330909-00-60-70-02-05

• Manufacturer: Bently Nevada (Baker Hughes).
• Probe Type: 3300 NSv Proximity Probe with armored cable.
• Full Model: 330909-00-60-70-02-05.
• Thread Size: 3/8-24 UNF for secure installation.
• Unthreaded Length: 0.0 inches (standard).
• Overall Case Length: 6.0 inches.
• Total Length: 7.0 meters (23.0 feet) – armored cable.

Key Technical Specifications

• Probe DC Resistance: 5.9 ± 0.9 ohms (center to outer conductor at 7m).
• Temperature Range: -52°C to +177°C (-62°F to +351°F) for both operation and storage.
• Pressure Seal: Viton O-ring design; not pressure tested before shipment.
• Cable Type: 75 Ω coaxial, FEP insulation, standard for 7m length.
• Connector: Miniature coaxial ClickLoc (standard cable, option 02).
• Approvals: Multiple agency approvals (option 05).

Installation & Torque Guidelines

• Maximum case torque: 33.9 N•m (300 in•lb) for 3/8-24 or M10x1 cases.
• Recommended case torque: 11.3 N•m (100 in•lb).
• First three threads torque (max): 22.6 N•m (200 in•lb).
• Recommended for first threads: 7.5 N•m (66 in•lb).
• Maximum thread engagement: 0.563 inches for 3/8-24.
• Avoid prolonged exposure below -34°C (-30°F) to protect the pressure seal.

Environmental & Physical Data

• Probe weight: Approx. 14 to 150 g (0.5 to 5.3 oz).
• Case material: AISI304 stainless steel.
• Tip material: Polyphenylene sulfide (PPS).
• Storage temperature: Same as operating range (-52°C to +177°C).
• Sustained low temperatures may affect the seal integrity.

Package Contents

• 1 x 330909-00-60-70-02-05 3300 NSv probe with armored cable.
• Miniature coaxial ClickLoc connector (standard type).
• Installation instruction sheet (standard document).
• No calibration certificate or warranty card in the package.

Shipping & Delivery

• We ship via FedEx, UPS, or DHL – choose your preferred carrier.
• Orders dispatch from our warehouse within 5 business days.
• We stock genuine, new 330909-00-60-70-02-05 probes.
• We accept returns within 30 days for unused items in original packaging.

Frequently Asked Questions (FAQ)

• Is this a genuine Bently Nevada 3300 NSv probe?
  Yes, we supply 100% new, original 330909-00-60-70-02-05 probes from Bently Nevada.
• What is the cable length and type?
  The total length is 7.0 meters (23 feet) of FEP insulated, 75 Ω coaxial cable.
• Can I use this probe in high-temperature steam turbines?
  The 3300 NSv operates from -52°C to +177°C; avoid prolonged exposure below -34°C.
• What thread size does this probe use?
  It uses a 3/8-24 UNF thread with a maximum engagement of 0.563 inches.
• Do you have this model in stock?
  Yes, we keep the 330909-00-60-70-02-05 in stock for immediate dispatch.
• How do I install the probe correctly?
  Follow the torque values: 11.3 N•m recommended for the case, 7.5 N•m for the first three threads.
• What is the connector type?
  It features a miniature coaxial ClickLoc connector (standard cable option).
• What approvals does this probe carry?
  This model has multiple agency approvals (option 05).
