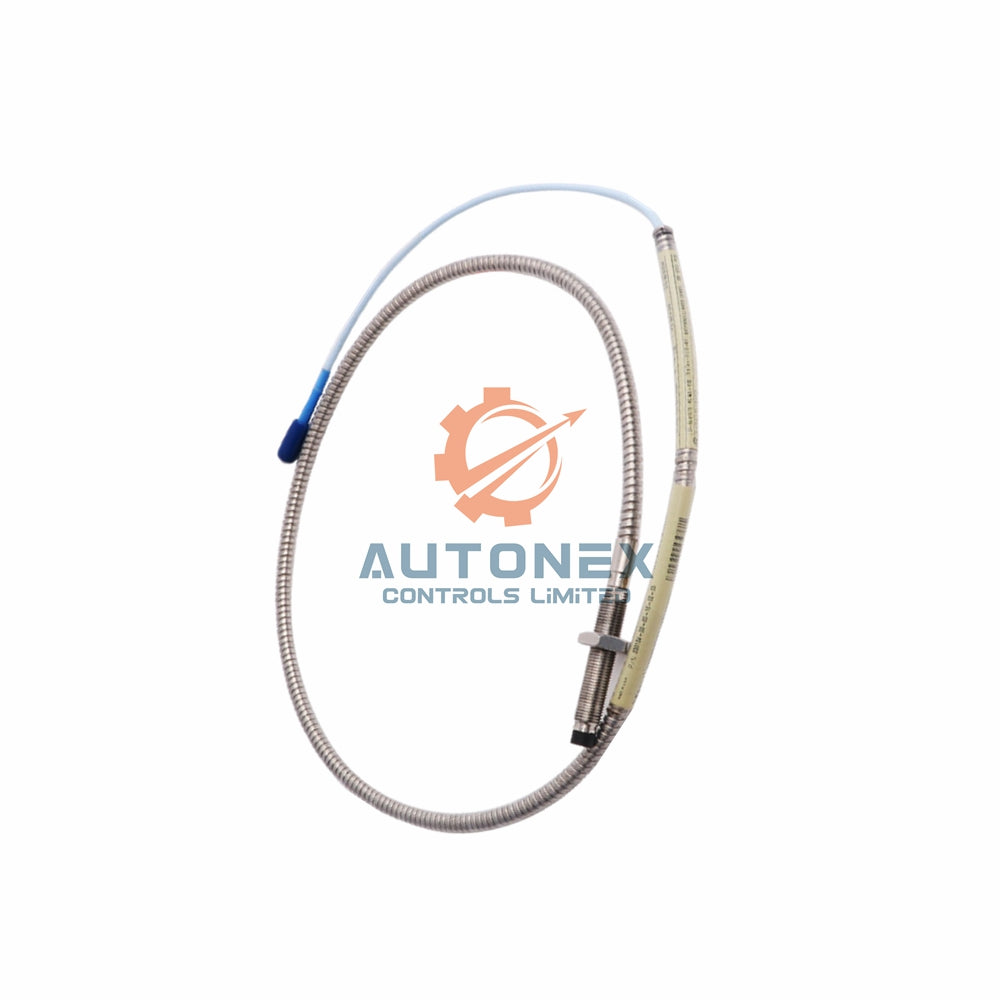

330909-00-28-10-02-00 Bently Nevada NSv Proximity Probe

Bently Nevada 330909 NSv Proximity Probe – Technical Overview

• Brand & Model: Bently Nevada – 330909-00-28-10-02-00 (3300 NSv Probes).
• Thread Size: 3/8-24 UNF with armor, first three threads engagement limit 0.563 in.
• Unthreaded Length: 0.0 in (Option 00).
• Overall Case Length: 2.8 in (Option 28).
• Total Length: 1.0 meter (39 in, Option 10).
• Connector & Cable: Miniature coaxial ClickLoc connector, standard cable (Option 02).
• Agency Approval: Not required (Option 00).

Probe Materials & Construction

• Case Material: AISI304 stainless steel (SST).
• Tip Material: Polyphenylene sulfide (PPS) – excellent chemical resistance.
• Cable Type: 75 Ω coaxial FEP insulated cable, available in 0.5, 1, 5, or 7 metre lengths.
• DC Resistance (RPROBE): 4.2 ± 0.5 ohms (for 1.0 m length).

Electrical & Environmental Specifications

• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: Same range -52°C to +177°C.
• Pressure Seal: Viton O-ring design for differential pressure sealing.
• Note: Sustained exposure below -34°C (-30°F) may reduce pressure seal life.
• Probe Weight: Approx. 14 to 150 g (0.5 to 5.3 oz).

Torque & Installation Guidelines

• Maximum Torque (3/8-24 case): 33.9 N•m (300 in•lb).
• Recommended Torque (same): 11.3 N•m (100 in•lb).
• Max Torque (first three threads): 22.6 N•m (200 in•lb).
• Recommended (first three): 7.5 N•m (66 in•lb).
• Follow these torque values to avoid damaging the probe case or threads.

What’s in the Box

• One 330909-00-28-10-02-00 probe assembly with armor.
• Pre-attached 1.0 metre FEP coaxial cable with ClickLoc connector.
• Installation and torque reference card.
• No additional mounting accessories included.

Shipping & Logistics

• We ship via FedEx, UPS, or DHL – you choose at checkout.
• All orders dispatch within 5 business days from our warehouse.
• Tracking number provided immediately after shipment.

Frequently Asked Questions

• Is this probe brand new and original? – Yes, every 330909 unit is 100% new and genuine Bently Nevada.
• Do you have stock available? – Yes, we maintain ready inventory for this model.
• How long does delivery take? – We dispatch within 5 days; transit time depends on your location and chosen carrier.
• What is the return policy? – We support 30-day returns for unused items in original packaging.
• Can I use this probe in high-vibration areas? – Yes, the 3300 NSv series is specifically designed for continuous machine monitoring.
• Does the cable length affect resistance? – Yes, the specified DC resistance (4.2 ± 0.5 Ω) applies to the 1.0 m total length option.
