330908-00-46-10-02-00 3300 NSv Extra Long Probe | Bently Nevada

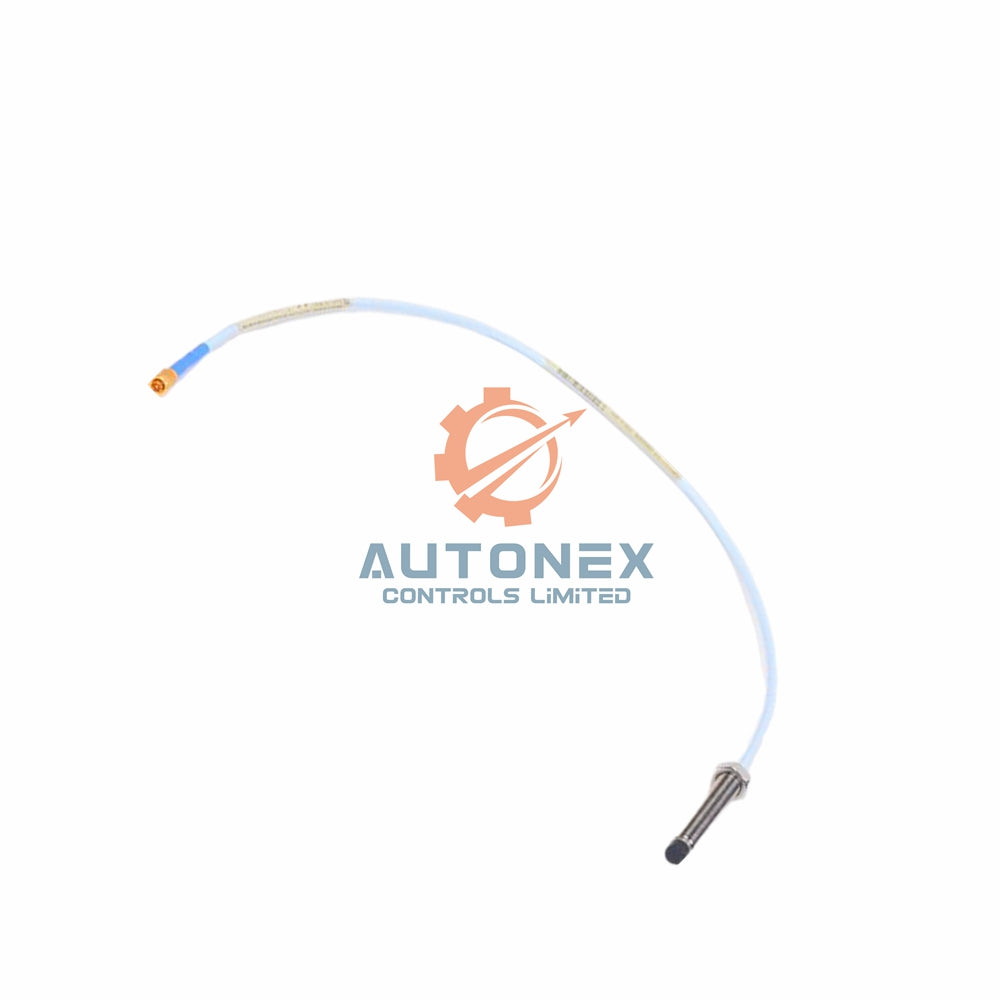

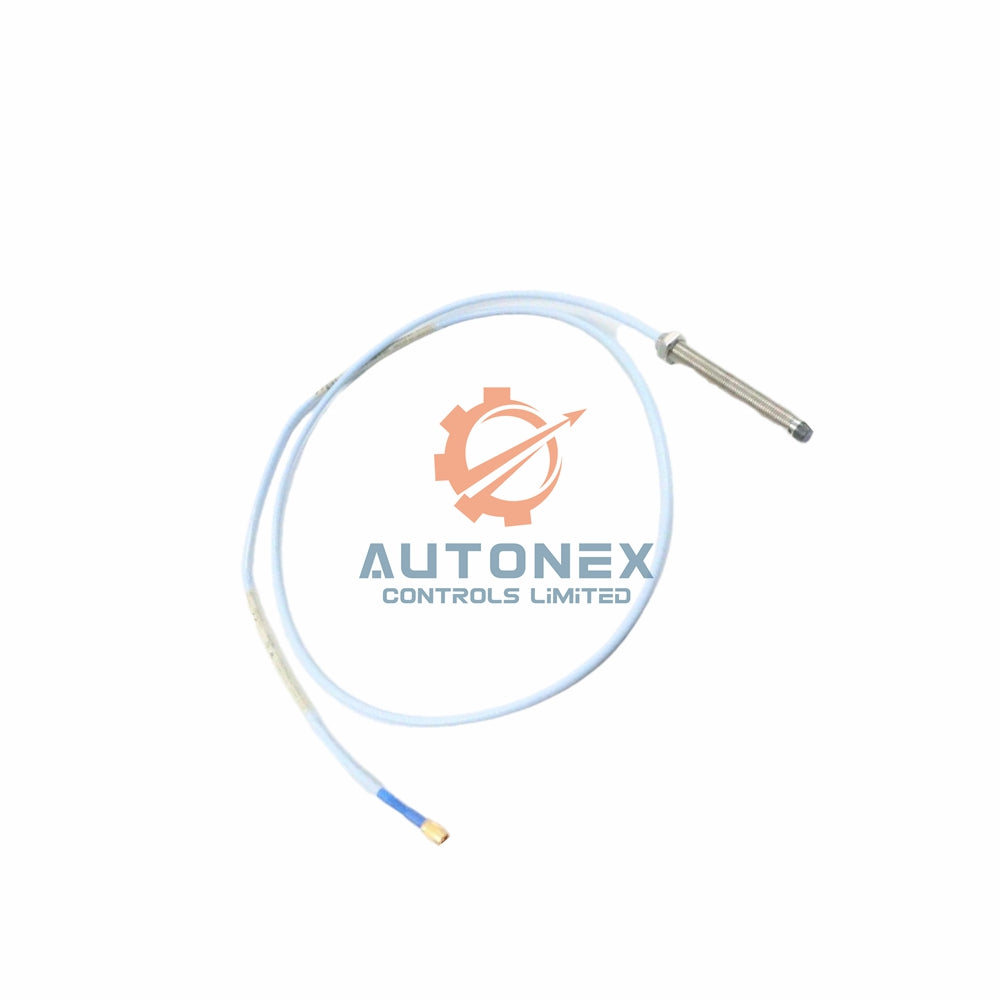

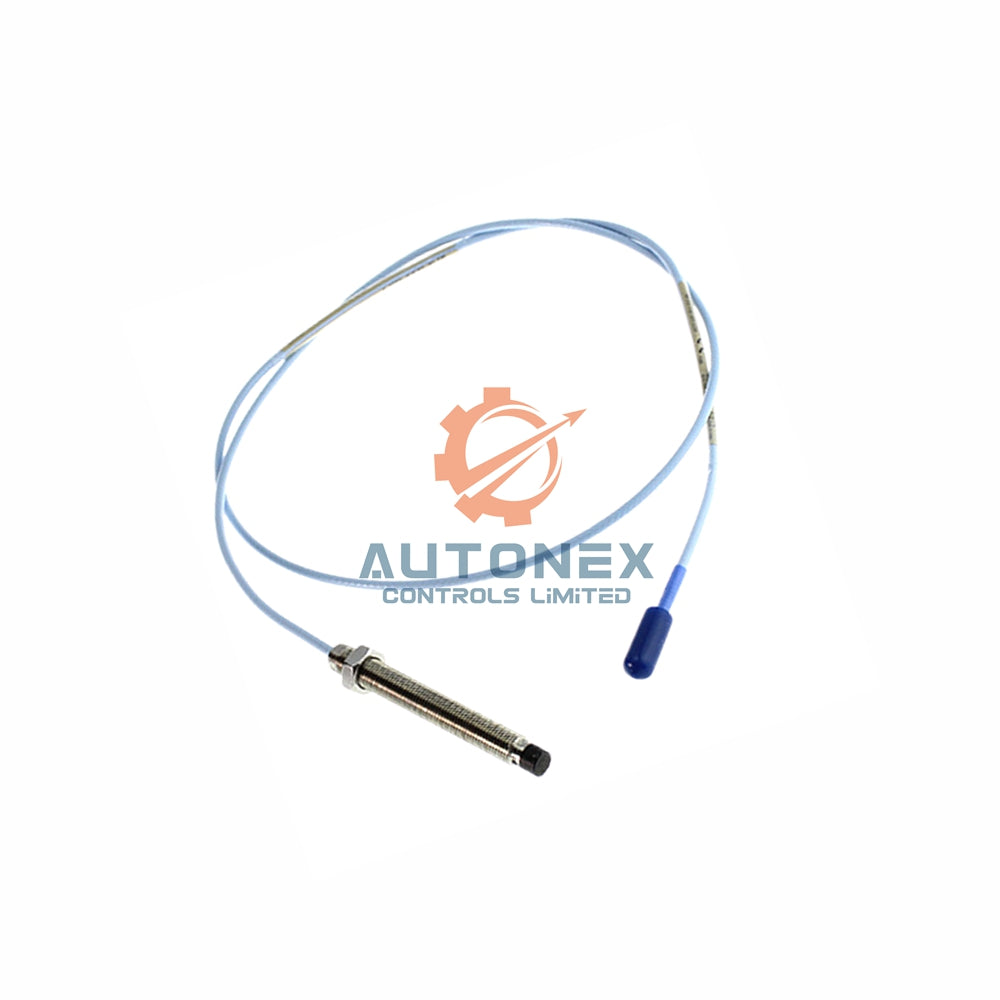

Bently Nevada 3300 NSv Extra Long 4.6" Vibration Probe – Maximum Reach

Key Technical Specifications – Brand & Model Details

• Brand: Bently Nevada (USA manufacturer).
• Model number: 330908-00-46-10-02-00 (full ordering code).
• Series: 3300 XL NSv Proximity Transducer System.
• Probe category: Ultra-compact eddy current vibration probe.
• Probe size: 4.6 inches long with 3/8-24 UNF thread.
• Housing material: stainless steel construction.
• Temperature range: -60°F to +350°F (no performance degradation).
• Connector type: ClickLock connector for secure attachment.
• Cable length: 1 meter (39 inches) pre-attached, flexible cable.
• Thread style: fully threaded body, maximum installation depth 0.56 inches.
• Recommended torque: 100 in-lb.
• Weight range: 0.5 oz to 5.3 oz depending on cable and configuration.
• Approvals code: 00 – no special approvals required for standard use.

Model Number Breakdown – Understand Your Configuration

• 330908-00-46-10-02-00 – Each segment defines a key feature.
• 00: Fully threaded probe design.
• 46: 4.6-inch probe body length (extra long reach).
• 10: 1-meter (39-inch) cable length.
• 02: ClickLock connector type.
• 00: No additional certifications needed.

Environment & Performance Highlights

• The 330908-00-46-10-02-00 probe operates without linearity drift across the full temperature range.
• Stainless steel construction resists corrosion and mechanical stress.
• This sensor meets industrial vibration monitoring standards.
• Its extra long 4.6-inch design reaches deep cavities where standard probes cannot go.
• Maximum immersion depth of 0.56 inches prevents mechanical interference.
• We recommend tightening the probe to 100 in-lb for stable readings.
• The pre-attached 1m cable eliminates extra connectors and reduces failure points.
• Broad temperature tolerance from -60°F up to +350°F ensures reliable outdoor or high-heat use.

Installation Steps – Simple and Fast

• Screw the probe into the mounting hole. Do not exceed 0.56 inches of thread engagement.
• Use a torque wrench to tighten the probe to exactly 100 in-lb.
• Connect the ClickLock connector to the extension cable or monitor system.
• Verify cable routing to avoid sharp bends or tension on the wire.
• Perform a quick system check after installation.

Typical Applications

• Large industrial machines with deep mounting cavities.
• Equipment requiring access through thick housing walls.
• Hard-to-reach spots behind structural obstacles.
• Power plant turbines and generators.
• Heavy compressors and large gearboxes.

Why Choose This Extra Long 4.6" Model

• The extra long 4.6-inch body reaches where normal sensors cannot go.
• Standard short probes simply cannot access these deep mounting holes.
• This probe eliminates the need for custom mounting adapters or extensions.
• You get the same Bently Nevada reliability in a maximum reach form factor.
• The strong metal body withstands vibration and physical stress without breaking.

What's Included in the Box

• 1 x 330908-00-46-10-02-00 Bently Nevada vibration probe (fully threaded, 4.6" length).
• 1 x pre-attached 1-meter (39-inch) cable with ClickLock connector.
• No calibration certificate or warranty card inside the package.
• No 12-month warranty statement printed – contact support for policy.

Shipping & Logistics – Fast Delivery Options

• We ship using FedEx, UPS, and DHL depending on your location.
• All probes are brand new and original, no refurbished units.
• We keep 3300 NSv models in stock for immediate dispatch.
• We ship within 5 business days after order confirmation.
• 30-day return policy applies for unused items in original packaging.

Frequently Asked Questions (FAQ)

• Q: Is the 330908-00-46-10-02-00 probe brand new and original?
  A: Yes, every probe is 100% brand new and original from Bently Nevada. We never sell used or counterfeit units.
• Q: What is the recommended torque for this extra long 4.6" probe?
  A: We recommend 100 in-lb (inch-pounds). Do not over-tighten beyond the 0.56-inch maximum insertion depth.
• Q: Do you have the 3300 NSv extra long model in stock?
  A: Yes, we maintain ample stock. Most orders ship within 5 days.
• Q: What cable length comes with this model?
  A: The 330908-00-46-10-02-00 includes a 1-meter (39-inch) pre-attached cable.
• Q: Can I use this probe in freezing environments?
  A: Absolutely. The operating range starts at -60°F and extends to +350°F.
• Q: Which shipping carriers do you use?
  A: We use FedEx, UPS, and DHL for reliable global delivery.
• Q: What is the return policy?
  A: You may return unused items within 30 days from delivery for a full refund.
• Q: Is the cable replaceable?
  A: The cable is factory-attached. For replacement, please contact technical support.
• Q: Does this probe require external signal conditioning?
  A: It works with standard 3300 XL proximity systems. Refer to the datasheet for matching drivers.
• Q: Why choose the 4.6" model over shorter ones?
  A: The extra long body reaches deep mounting holes that standard sensors cannot access.

Download PDF file here: 3300 XL NSv Proximity Transducer System Datasheet - 147385
