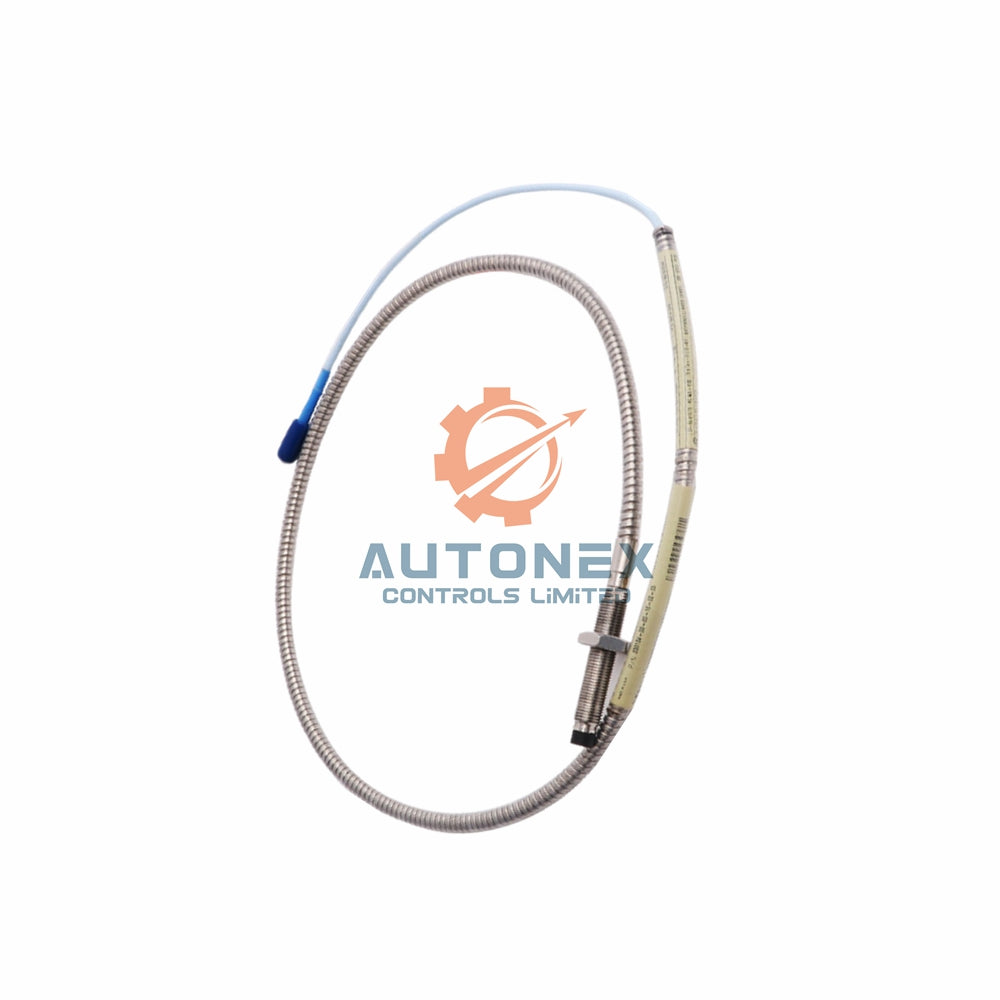

330904-05-14-05-02-00 Bently Nevada 3300 NSv Probe

330904-05-14-05-02-00 3300 NSv Proximity Probe – Bently Nevada

• Brand & Model: Bently Nevada 330904-05-14-05-02-00 (3300 NSv Probe).
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils).
• Recommended Gap Setting: 1.0 mm (40 mils) for standard operation.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with interchangeability error included.
• Deviation from Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 m of field wiring.
• Probe DC Resistance (RPROBE): 4.0 ± 0.5 ohms for the 0.5 m length.
• Extension Cable Resistance: Center conductor 0.220 Ω/m; Shield 0.066 Ω/m.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.

Technical Specifications & Environmental Ratings

• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS) for robust performance.
• Probe Case Material: AISI 304 stainless steel (SST).
• Pressure Sealing: Viton O-ring design seals differential pressure effectively.
• Minimum Target Size: 8.9 mm (0.35 in) diameter; recommended 13 mm (0.5 in).
• Thread Engagement: M10x1 with a maximum length of 15 mm.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without stainless steel armor.

Installation & Torque Guidelines

• Recommended Mounting Torque: Finger tight; maximum 0.56 N•m (5 in•lb).
• Connector-to-Connector Torque (M10x1): Recommended 7.5 N•m (66 in•lb); Maximum 22.6 N•m (200 in•lb).
• Thread Engagement Limits: M10x1 with a maximum engagement of 15 mm.
• Field Wiring: Use three-conductor shielded triad cable, 0.2 to 1.5 mm² (16-24 AWG).
• Maximum Field Wiring Length: 305 meters (1000 feet) between the Proximitor sensor and monitor.
• Probe Cable: 75 Ω coaxial, FEP insulated, total length 0.5 meter.

Package Contents, Delivery & Support

• Condition: New & Original in factory packaging.
• Package Includes: 3300 NSv probe, ClickLoc connector, and standard cable.
• Shipping Carriers: FedEx, UPS, DHL for global delivery.
• Dispatch Time: Ships within 5 business days from our warehouse.
• Returns: 30-day return policy for customer satisfaction.
• Stock Status: Available for immediate order.

Frequently Asked Questions (FAQ)

• Is the 330904-05-14-05-02-00 compatible with the 3300 RAM series? Yes, it is mechanically and electrically interchangeable with the previous 3300 RAM probe.
• What is the linear range for this model? The linear range spans 1.5 mm (60 mils), starting at 0.25 mm (10 mils) from the target.
• What is the recommended gap setting for the 3300 NSv probe? The recommended gap is 1.0 mm (40 mils) for most applications.
• What type of field wiring does this probe require? We recommend three-conductor shielded triad cable, up to 305 meters in length.
• What is the frequency response of the 330904-05-14-05-02-00? It delivers 0 to 10 kHz (+0, -3 dB) with up to 305 m of field wiring.
• What is the operating temperature range? The probe operates from -52°C to +177°C (-62°F to +351°F).
• Is this item in stock? Yes, we have this model available in our warehouse.
