330904-00-09-10-02-05 Bently Nevada 3300 NSv Probe

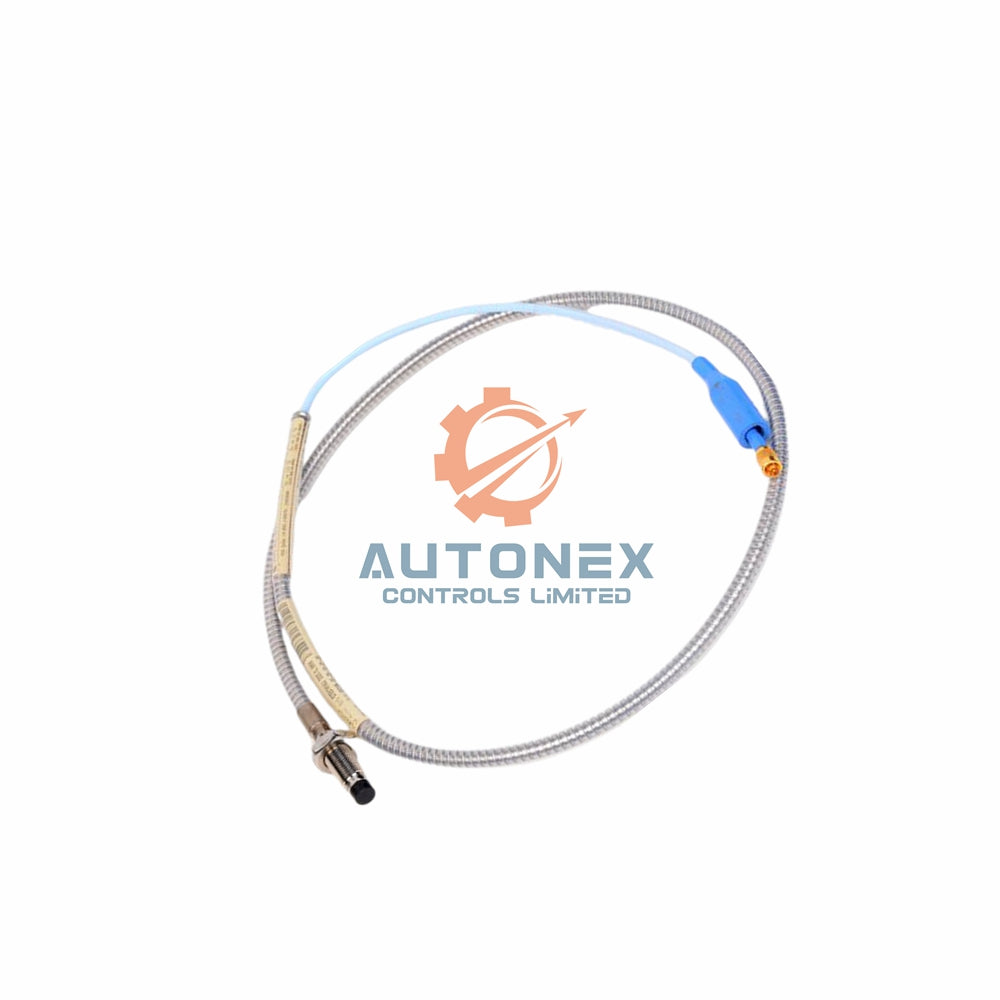

Bently Nevada 330904-00-09-10-02-05 NSv Proximity Probe

• Brand & Model: Bently Nevada, 330904-00-09-10-02-05 (3300 NSv Probe, M8x1 thread, armored)
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils), nominal output -1 to -13 Vdc
• Recommended Gap: 1.0 mm (40 mils) for standard operation
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with interchangeability error +12.5% / -20%
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz, +0, -3 dB typical (up to 305 m field wiring)
• Target Size: Minimum 8.9 mm diameter; recommended 13 mm diameter
• Probe Tip Material: Polyphenylene sulfide (PPS); Case: AISI 304 stainless steel
• Cable: 75 Ω coaxial FEP insulated, total length 1.0 meter (39 in) with miniature coaxial ClickLoc connector
• Probe DC Resistance (RPROBE): 4.2 ± 0.5 ohms (center to outer conductor)
• Extension Cable Resistance: Center 0.220 Ω/m; Shield 0.066 Ω/m
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Maximum Pressure Seal: Viton O-ring (not pressure tested before shipment)
• Recommended Torque: Finger tight; Maximum 0.56 N•m (5 in•lb)
• Connector-to-Connector Torque (M8x1): Max 7.3 N•m (65 in•lb); Recommended 5.1 N•m (45 in•lb)
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without armor
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG), recommend three-conductor shielded triad, max 305 m

Frequently Asked Questions

• Is this probe a genuine Bently Nevada product? Yes, it is brand new and original from Bently Nevada in factory packaging.
• Do you have this model in stock? Yes, we have the 330904-00-09-10-02-05 available for same-day processing.
• How long does shipping take? We dispatch within 5 days; express delivery via FedEx/UPS/DHL takes 2-5 business days.
• Can I use this probe with older 3300 RAM extension cables? Yes, it is mechanically and electrically interchangeable with 3300 RAM probes.
• What is the maximum operating temperature? The probe works from -52°C to +177°C (-62°F to +351°F).
• What is the recommended gap setting? We recommend 1.0 mm (40 mils) for standard applications.
• What is the frequency response with long field wiring? It maintains 0-10 kHz with up to 305 meters of field wiring.
• Do you accept returns? Yes, we accept returns within 30 days of delivery for unused items.
