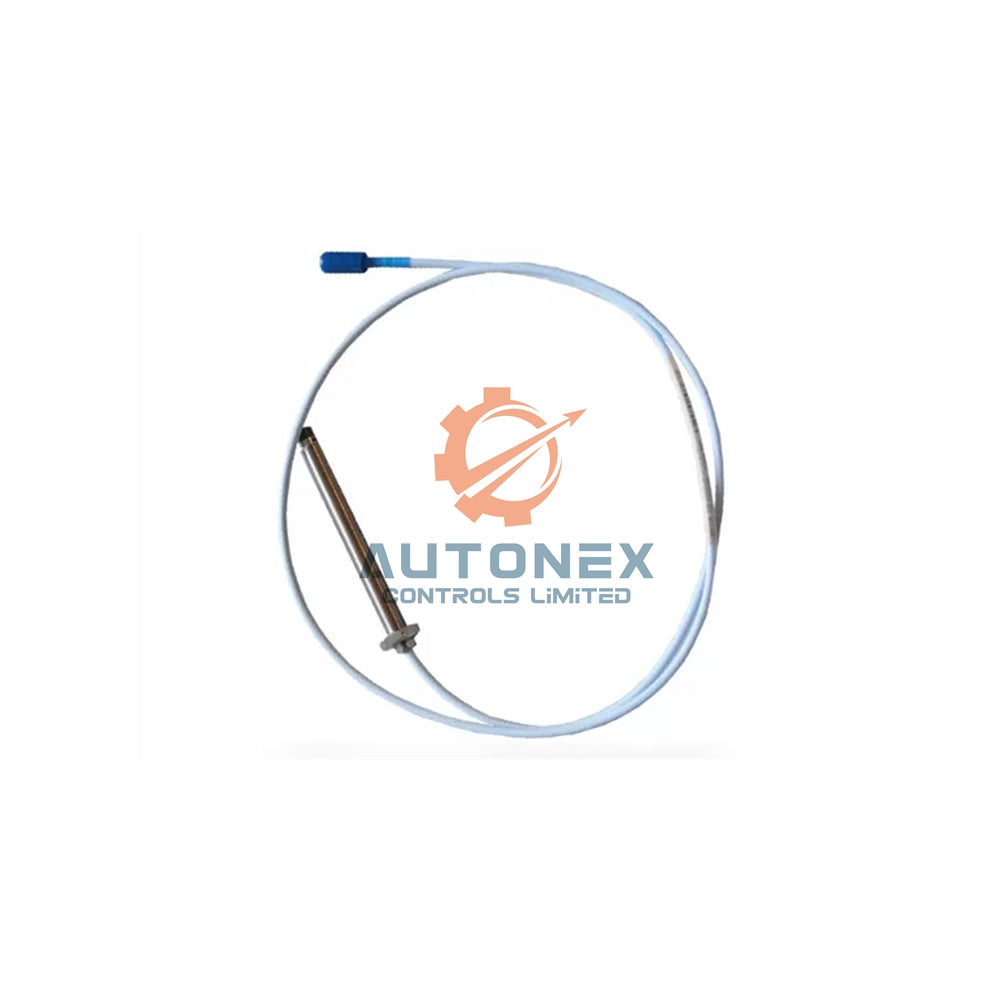

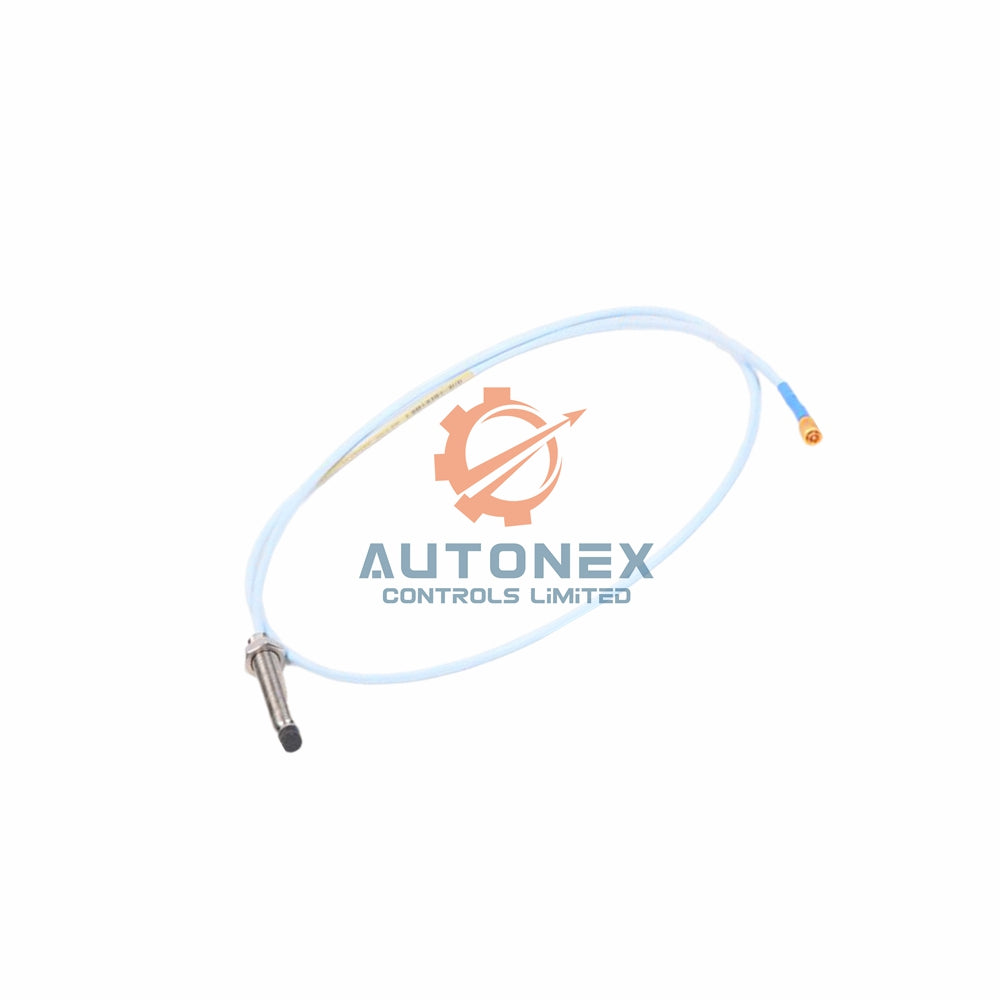

330901-00-60-10-01-00 Bently Nevada 3300 NSv Long Probe

330901-00-60-10-01-00 3300 NSv Proximity Probe by Bently Nevada

Key technical specifications

• Measurement system: 3300 NSv series, eddy-current principle. The 330901-00-60-10-01-00 delivers precise vibration and position signals.
• Sensitivity: Standard 7.87 V/mm (200 mV/mil) with excellent linearity across the full sensing range.
• Frequency response: 0 to 10 kHz typical, capturing both static gap changes and dynamic events.
• Resolution: Infinite, due to the non-contact eddy-current method; no moving parts to wear.
• Temperature range: Probe operates from -52 °C to +177 °C (-62 °F to +351 °F). Extended storage possible. Avoid prolonged use below -34 °C to protect seals.
• Environmental tolerance: Stainless steel case AISI 304 resists corrosion. PPS tip withstands up to 200 °C continuously.
• Immunity to interference: 75 Ω coaxial cable with FEP insulation maintains signal integrity in noisy environments.
• DC resistance (1.0m): 4.2 ± 0.5 ohms measured center conductor to outer shield, ensuring consistent performance.

Mechanical and material highlights

• Base thread: 1/4-28 UNF (no armor) fits standard industrial mounts. This fine thread allows precise axial adjustment.
• Unthreaded length: 0.0 inches ( -00 option ) – threads start immediately at the case, ideal for tight spots where space is limited.
• Case length: 6.0 inches ( -60 option ) – longer body provides extra reach for deep machinery access.
• Total probe length: 1.0 meter (39 inches) -10 option , with integral 75 Ω coaxial cable.
• Connector type: Small ClickLoc with protector (type 01) – rated for 600+ connection cycles. Protector adds durability in harsh environments.
• Case material: AISI 304 stainless steel, minimum tensile strength 505 MPa, offering ruggedness while maintaining precise dimensions.
• Tip material: Polyphenylene sulfide (PPS) – a strong plastic that handles continuous exposure up to 200 °C.
• Cable construction: 75 Ω coaxial, FEP-insulated, 3.5 mm thick for easy routing. Standard lengths include 0.5 m, 1.0 m, 5.0 m, and 7.0 m options.

Frequently asked questions

• Is this probe brand new and original? Yes, every 330901-00-60-10-01-00 is a brand new, genuine Bently Nevada product in sealed factory packaging.
• What is the lead time for this item? We have this 6.0-inch case model in stock. We usually ship within 5 working days after receiving your order.
• Which couriers do you use for shipping? We ship via FedEx, UPS, or DHL depending on your location. All shipments are fully trackable.
• Can I return this probe within 30 days? Yes, we offer a 30-day return window for unopened items in original condition. Contact us for a return authorization.
• What makes the 6.0-inch case length (-60) different? The 6.0-inch case allows you to reach much deeper into machinery casings or through very thick housings. It is the longest standard option in the 3300 NSv family.
• Does this probe work with my existing 3300 XL extension cable? Yes, the Small ClickLoc connector (type 01) is fully compatible with all 3300 XL extension cables and drivers.
• What is the significance of the Viton O-ring? The Viton O-ring creates a pressure-tight seal when installed in a threaded hole, preventing process fluid leakage. It withstands high temperatures and aggressive media.
• What does "no extra tests needed for general use" mean? The approval code -00 indicates this probe meets standard industrial requirements without special agency certifications, suitable for most applications.

For complete electrical and mechanical drawings, we strongly recommend downloading the official datasheet. It contains full system specifications and calibration information.

Download 3300 XL NSv Proximity Transducer System Datasheet (PDF)
