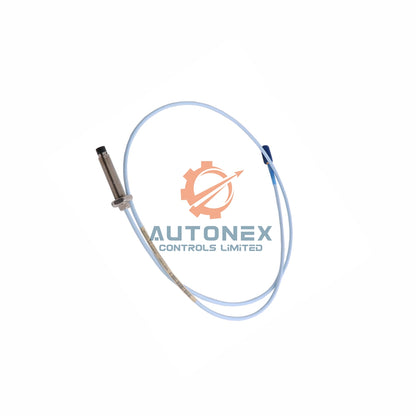

330901-00-60-05-02-05 3300 NSv Transducer - 0.5m Cable

330901-00-60-05-02-05 3300 NSv Proximity Probe: Industrial Monitor

What the Numbers Mean

• 330901: Base probe with 1/4-28 UNF thread, no armor for standard installations
• 00: No extra length without threads; unthreaded portion measures 0.0 inches
• 60: Case length extends to 6.0 inches for deeper mounting requirements
• 05: Total probe length equals 0.5 meters (20 inches) from tip to connector
• 02: Small coaxial ClickLoc connector with standard cable for secure connections
• 05: Passes multiple safety checks ensuring reliable industrial operation

Materials Used

• Case: AISI 304 stainless steel stays good for 1,000+ hours in salt spray testing
• Tip: PPS plastic works continuously up to 177°C and melts at 280°C for safety margin
• Cable: 75Ω coaxial with FEP cover measures 3mm thick, bends easily at 15mm radius, and holds 100N pull force

How It Works

• Resistance: DC resistance measures 4.0 ± 0.5 ohms for 0.5m length at 25°C from center to outer conductor
• Sensitivity: Standard output delivers 200 mV/mil showing small 0.001-inch changes clearly
• Speed: Frequency response covers 0-10 kHz catching fast machine vibrations and position shifts
• Linear range: Optimized for 2mm typical gap with the 3300 XL NSv system
• Resolution: High-resolution output maintains signal integrity in noisy environments

Durability Facts

• Twist Limit: Maximum torque reaches 7.3 N·m (65 in·lb); best performance at 5.1 N·m (45 in·lb)
• Thread Fit: Accepts mounting holes up to 0.375 inches (9.5mm deep) with 1/4-28 thread
• Weight: Ranges from 14-150g (0.5-5.3 oz) making installation light and straightforward
• Pressure sealing: Viton O-ring handles differential pressure between tip and case
• Temperature range: Operates from -52°C to 177°C for extreme environment flexibility

Frequently Asked Questions

• Is the 330901-00-60-05-02-05 probe brand new?
  All probes are brand new and original from Bently Nevada in factory-sealed anti-static packaging.
• What is the delivery time for this 3300 NSv probe?
  We maintain stock of this model. We ship within 5 working days after order confirmation.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL based on your preference at checkout.
• Can I return this probe within 30 days?
  Yes, we offer a 30-day return policy for unused items in original condition.
• What does the 60 case length mean for installation?
  The 6.0-inch case length suits deeper mounting holes or applications requiring extended probe reach.
• Does this probe work with existing 3300 XL systems?
  Yes, the 330901-00-60-05-02-05 integrates fully with all 3300 XL NSv monitors and extension cables.
• What is the cable bend radius?
  The FEP coaxial cable bends easily at 15mm radius, allowing flexible routing in tight machine spaces.
• Can this probe handle high vibration environments?
  Yes, with 10 kHz frequency response and rugged construction, it performs reliably in high-vibration applications.

For complete electrical, mechanical, and installation specifications, download the official 3300 XL NSv Proximity Transducer System Datasheet. This document contains full system details and performance curves.

Download PDF: 3300 XL NSv Datasheet – 147385
