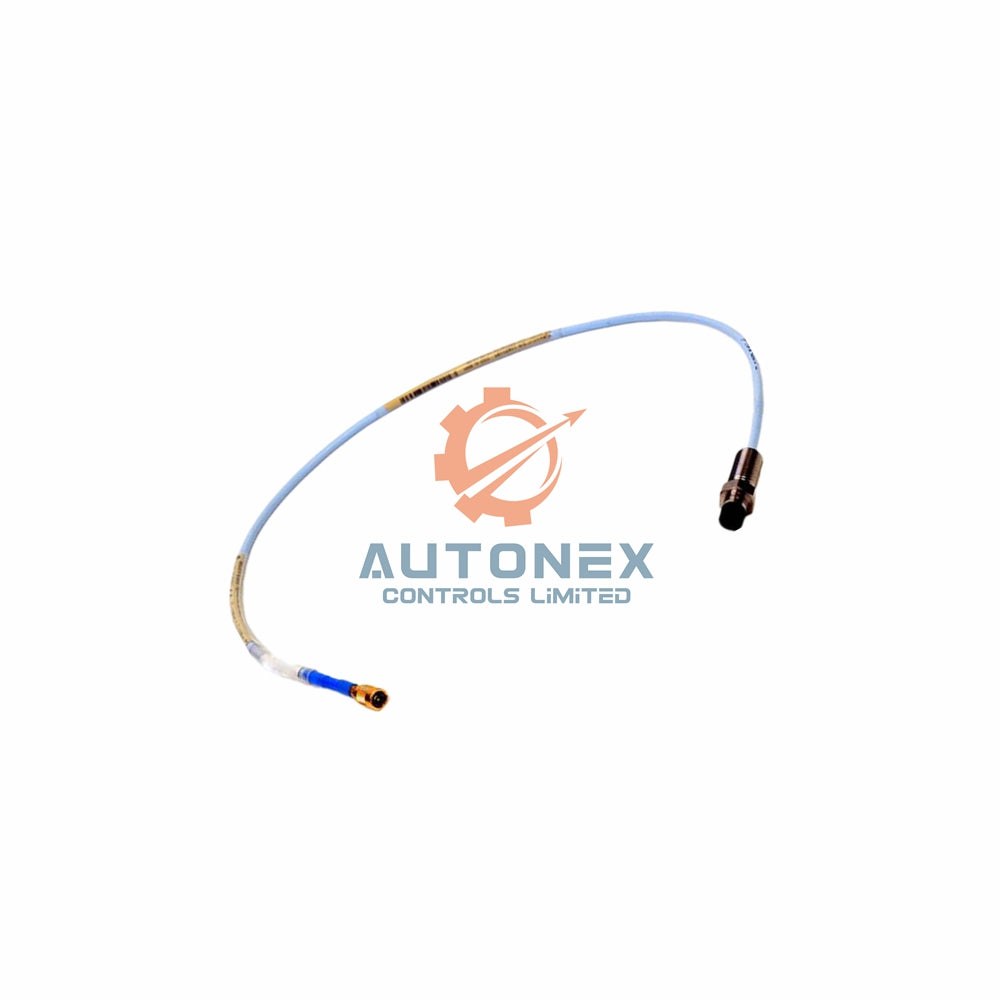

330901-00-40-05-02-CN Bently Nevada 3300 NSv Proximity Probe

330901-00-40-05-02-CN 3300 NSv Proximity Probe: Simple & Strong for Factories

What Each Part of the Model Number Means

• 330901: Base probe with 1/4-28 UNF thread, no armor for standard industrial mounting
• 00: No extra smooth length; unthreaded portion measures 0.0 inches
• 40: Case size extends to 4.0 inches long for versatile installation options
• 05: Total probe length equals 0.5 meters (20 inches) from tip to connector
• 02: Small coaxial ClickLoc connector with standard cable ensures secure signal transmission
• CN: Passes country-specific safety tests for regional compliance requirements

What It's Made Of

• Case: AISI 304 stainless steel stays good for 1,000+ hours in salt spray tests, resisting rust and wear
• Tip: PPS plastic works continuously up to 177°C and melts at 280°C for excellent thermal safety margin
• Cable: 75Ω coaxial with FEP cover measures 3mm thick, bends easily at 15mm radius, and holds 100N pull force

How It Works Electrically

• Resistance: DC resistance measures 4.0 ± 0.5 ohms for 0.5m length tested at 25°C from center to outer conductor
• Sensitivity: Standard output delivers 200 mV/mil showing tiny 0.001-inch changes with excellent clarity
• Speed: Frequency response covers 0-10 kHz catching fast machine vibrations and position shifts accurately
• Linear range: Optimized for 2mm typical gap with the 3300 XL NSv system
• Interference rejection: Double-shielded construction protects against EMI and RFI

How Strong It Is

• Twist Limit: Maximum torque reaches 7.3 N·m (65 in·lb); best performance at 5.1 N·m (45 in·lb) for optimal reliability
• Thread Fit: Accepts mounting holes up to 0.375 inches (9.5mm deep) with standard 1/4-28 thread
• Weight: Ranges from 14-150g (0.5-5.3 oz) making installation light and straightforward for technicians
• Pressure sealing: Viton O-ring handles differential pressure between tip and case
• Temperature range: Operates from -52°C to 177°C for extreme environment flexibility

Frequently Asked Questions

• Is the 330901-00-40-05-02-CN probe brand new?
  All probes are brand new and original from Bently Nevada in factory-sealed anti-static packaging.
• What is the delivery time for this 3300 NSv probe?
  We maintain stock of this model. We ship within 5 working days after order confirmation.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL based on your preference at checkout.
• Can I return this probe within 30 days?
  Yes, we offer a 30-day return policy for unused items in original condition.
• What does the CN approval mean for this probe?
  The CN suffix indicates this 330901-00-40-05-02-CN passes specific country safety tests required for regional installations.
• Does this 4.0-inch case work with existing 3300 XL systems?
  Yes, the 330901-00-40-05-02-CN integrates fully with all 3300 XL NSv monitors and extension cables.
• What is the minimum bend radius for the cable?
  The FEP coaxial cable bends easily at 15mm radius, allowing flexible routing in tight machine compartments.
• Can this probe handle high vibration environments?
  Yes, with 10 kHz frequency response and rugged stainless construction, it performs reliably in high-vibration factory applications.
• What temperature range does this probe support?
  It operates from -52°C to 177°C, making it suitable for both cold storage and high-heat machinery areas.

For complete electrical, mechanical, and installation specifications, download the official 3300 XL NSv Proximity Transducer System Datasheet. This document contains full system details and performance curves.

Download PDF: 3300 XL NSv Datasheet – 147385
