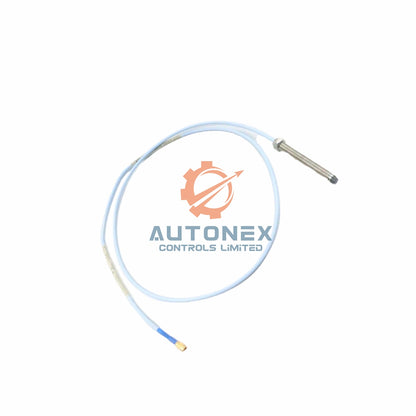

330901-00-20-05-01-00 Bently Nevada 3300 NSv Proximity Probe

330901-00-20-05-01-00 Bently Nevada 3300 NSv Proximity Probe Datasheet

Detailed Model Configuration and Materials

• Base Model 330901: This represents a 3300 NSv probe featuring standard 1/4-28 UNF mounting threads without armor. It uses an unthreaded length of 0.0 inches (00) to accommodate tight installation spots.
• Physical Dimensions: The 330901-00-20-05-01-00 includes a 2.0-inch case length (20) for a compact body. Its total length (05) measures 0.5 meters, providing a short cable run for close-coupled system setups.
• Connector Type: This configuration uses a Small ClickLoc connector with a protective backshell (01). It integrates a 75 Ohm FEP-insulated cable for consistent signal transmission.
• Material Construction: The probe case features AISI 304 stainless steel for excellent corrosion resistance. The probe tip utilizes high-temperature PPS plastic, capable of withstanding up to 200°C.

Technical Specifications and Performance Stats

• Electrical Characteristics: The 330901-00-20-05-01-00 exhibits a DC resistance of 4.0 ± 0.5 ohms between the center and outer conductor. It operates with a 75 Ohm coaxial cable that features a 3.5mm diameter for easy routing.
• Mechanical Limits: Maximum recommended installation torque is 7.3 N·m, with a safe installation torque of 5.1 N·m for the 1/4-28 threads. The maximum thread engagement should not exceed 0.375 inches.
• Environmental Tolerance: This 3300 NSv probe resists rust and corrosion due to its stainless steel case. The robust design ensures reliable performance under typical industrial vibration monitoring conditions.

Frequently Asked Questions (FAQ)

• What is the exact model number for this probe?
  The specific model number is 330901-00-20-05-01-00, which is a Bently Nevada 3300 NSv series proximity probe with a 0.5-meter cable.
• What are the key specifications of the 330901-00-20-05-01-00 ?
  This 3300 NSv probe features a 1/4-28 UNF thread, a 2.0-inch case length, and a 75 Ohm FEP cable. It offers a maximum torque spec of 7.3 N·m.
• What materials does Bently Nevada use for this probe?
  The 330901-00-20-05-01-00 utilizes an AISI 304 stainless steel case and a PPS plastic tip capable of handling high temperatures.
• Do you have the 330901-00-20-05-01-00 in stock?
  Yes, we have this model in stock as a new and authentic unit. We maintain inventory for the Bently Nevada 3300 NSv series.
• How quickly can you ship the 330901-00-20-05-01-00 ?
  We typically dispatch orders within 5 days. We ship globally using FedEx, UPS, and DHL for reliable delivery.
• What is your return policy for this proximity probe?
  We accept returns on this new item within 30 days of receipt, provided it remains in its original condition.
• Where can I download the datasheet?
  You can download the full product datasheet for the 3300 XL NSv system here: 3300 XL NSv Proximity Transducer System Datasheet - 147385. Please review this document for detailed specifications.
