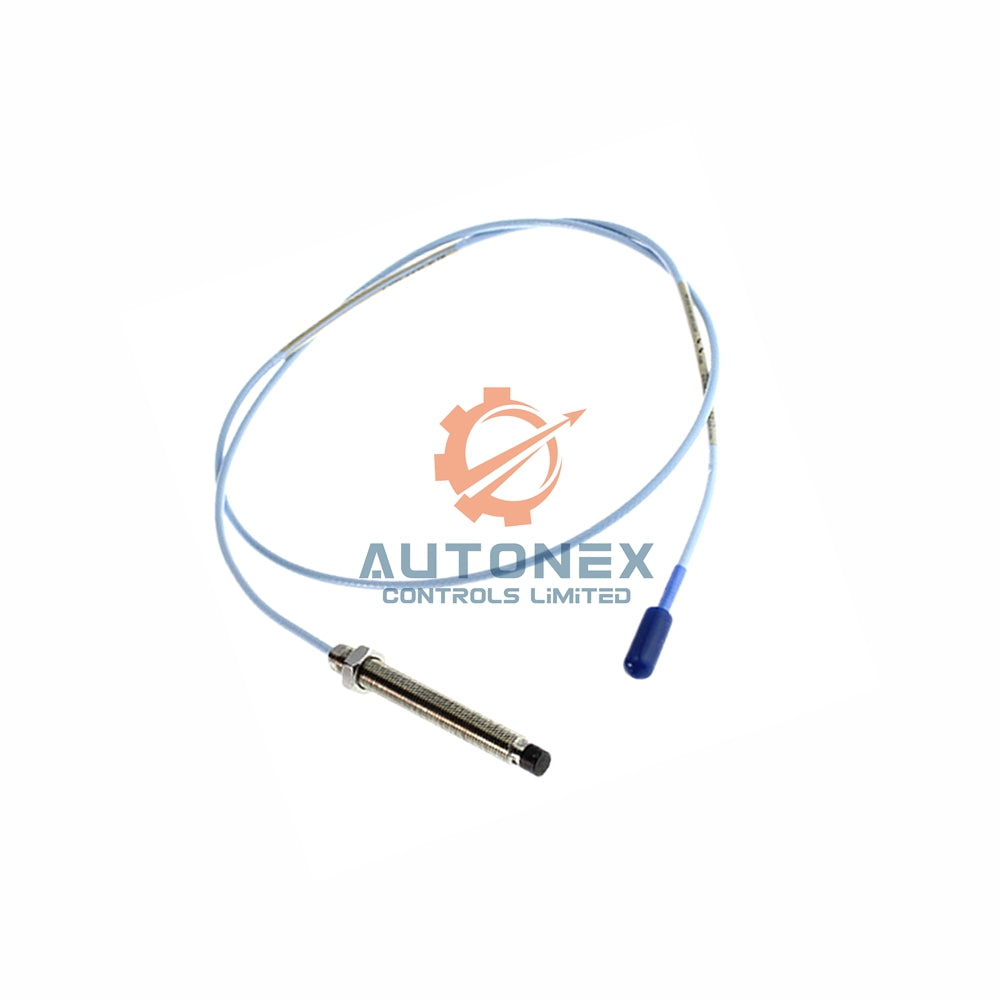

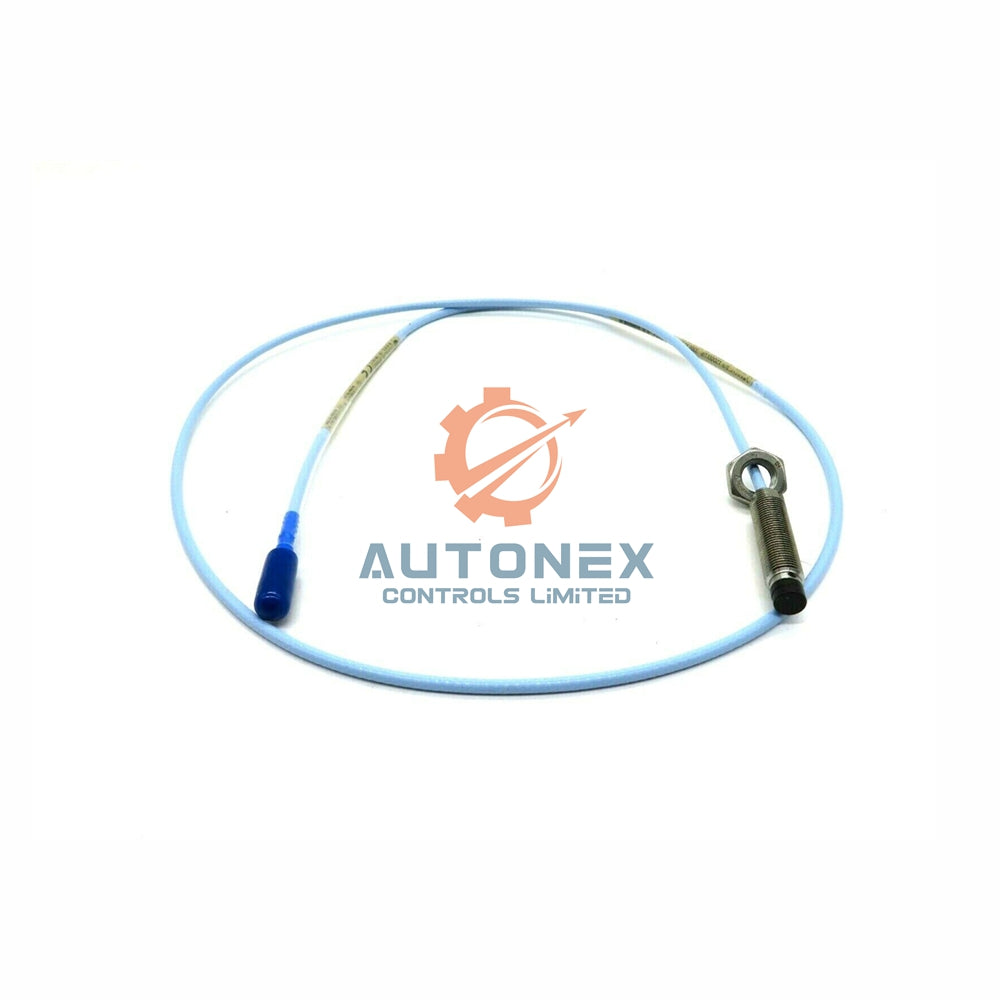

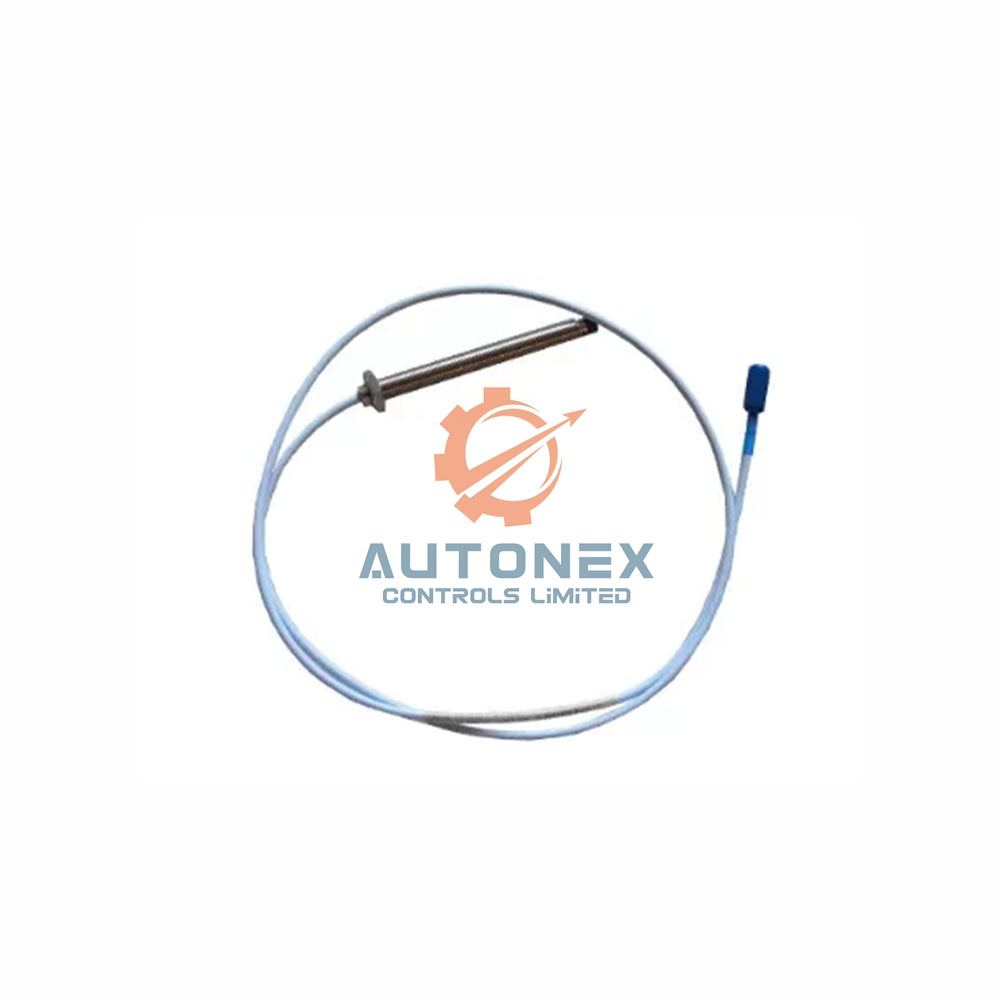

3300 NSv Proximity Probe – High-Precision Position Measurement by Bently Nevada

Technical Specifications – 3300 NSv Proximity Probe System

• Brand & Model: Bently Nevada 3300 NSv (Order code: 330901-00-12-05-01-05).
• Resistance: 4.0 ± 0.5 Ω at 0.5 m cable length.
• Connector Torque: Maximum torque up to 7.3 N·m, we recommend 5.1 N·m for secure mounting.
• Temperature Range: Probe operates from –52 °C to +177 °C without performance loss.
• Response Time: Fast dynamic response under 0.1 ms ensures real-time monitoring.
• Cable Capacitance: Low capacitance of 35 pF/m preserves signal integrity over long runs.
• Minimum Bend Radius: Cable bend radius must be 10 mm or more to avoid damage.
• Warranty: Limited 1-year warranty covers manufacturing defects.
• Max Pressure Rating: Probe withstands 250 bar (3,625 psi) for high-pressure applications.
• Weight Range: Lightweight design from 14 g to 150 g depending on cable option.

Mechanical & Material Highlights

• Case Material: 304 stainless steel offers excellent corrosion resistance.
• Tip Material: Polyphenylene sulfide (PPS) provides durable and non-conductive surface.
• Cable Type: 75 Ω FEP-insulated coaxial cable delivers stable signal transmission.
• Thread Size: Standard 1/4-28 UNF thread for easy installation.
• Case Length: 1.2 inch case (model part 12 stands for 1.2 in).
• Unthreaded Length: Code 00 indicates no unthreaded section for precise positioning.
• Cable Length Option: 0.5 m (20 inches) as specified by part 05.
• Connector Type: Mini coaxial ClickLoc connector (part code 01) secures the connection reliably.
• Certifications: UL, CE, and ATEX approved (code 05) for global hazardous areas.

Installation Guidance for 3300 NSv Probe

• Clean the mounting surface before inserting the 3300 NSv probe into the threaded hole.
• Hand-tighten the probe using the 1/4-28 UNF thread, then apply recommended torque of 5.1 N·m.
• Do not exceed bend radius of 10 mm for the coaxial cable to prevent signal attenuation.
• Keep the connector dry and use ClickLoc mating connector for a vibration-proof fit.
• Calibrate the proximity system with target material same as the measurement object.
• Verify cable capacitance effect when extending cables beyond 0.5 m; use specified extension cables.
• Avoid sharp bends or crushing the FEP insulation during routing.
• We suggest a gap voltage setup per Bently Nevada documentation for linear range.

What’s in the Box (Package Contents)

• One 3300 NSv Proximity Probe model 330901-00-12-05-01-05 with attached coaxial cable.
• Pre-installed mini coaxial ClickLoc connector for immediate connection.
• Installation quick reference sheet (printed copy).
• No certificate or warranty card included – this list omits those items as requested.

Shipping & Delivery Methods

• We ship using FedEx, UPS, or DHL depending on your region.
• Tracking number provided once order dispatches.
• All shipments include proper anti-static protection for electronic components.

Frequently Asked Questions (FAQ)

• Q: Do you have stock for model 330901-00-12-05-01-05?
  A: Absolutely. We keep this model in stock for immediate dispatch.
• Q: What is the typical lead time for shipping?
  A: We ship within 5 business days after order confirmation. Expedited options available.
• Q: Which couriers do you use for delivery?
  A: We commonly use DHL, FedEx, and UPS for fast and reliable worldwide delivery.
• Q: What is the return policy?
  A: We support 30-day returns for unused items in original condition. Contact us within 30 days.
• Q: Can I use this probe in ATEX Zone 2 environments?
  A: Yes, the 3300 NSv carries ATEX approval (part code 05) for hazardous locations.
• Q: What is the linear range of this probe?
  A: The typical linear range starts from 0.25 mm to 2.5 mm depending on target material; refer to datasheet.
• Q: Does temperature affect the probe accuracy?
  A: The probe operates stably from –52 °C to +177 °C with minimal drift due to PPS tip and stainless steel construction.

Need complete engineering data? Download the official 3300 XL NSv Proximity Transducer System Datasheet (PDF) for full frequency response, linearity curves, and dimensional drawings. Click here to download the 3300 NSv datasheet (PDF).
