330880-28-15-048-00-02 Bently Nevada Transducer

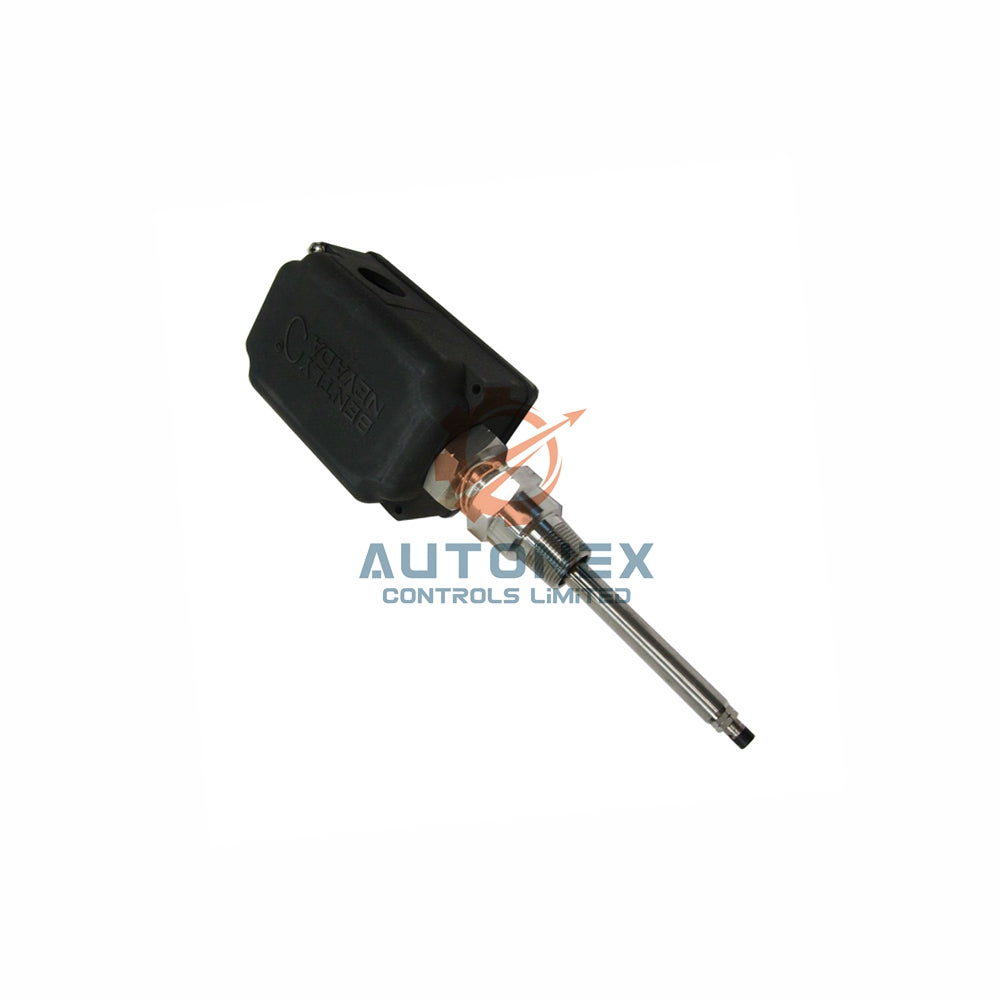

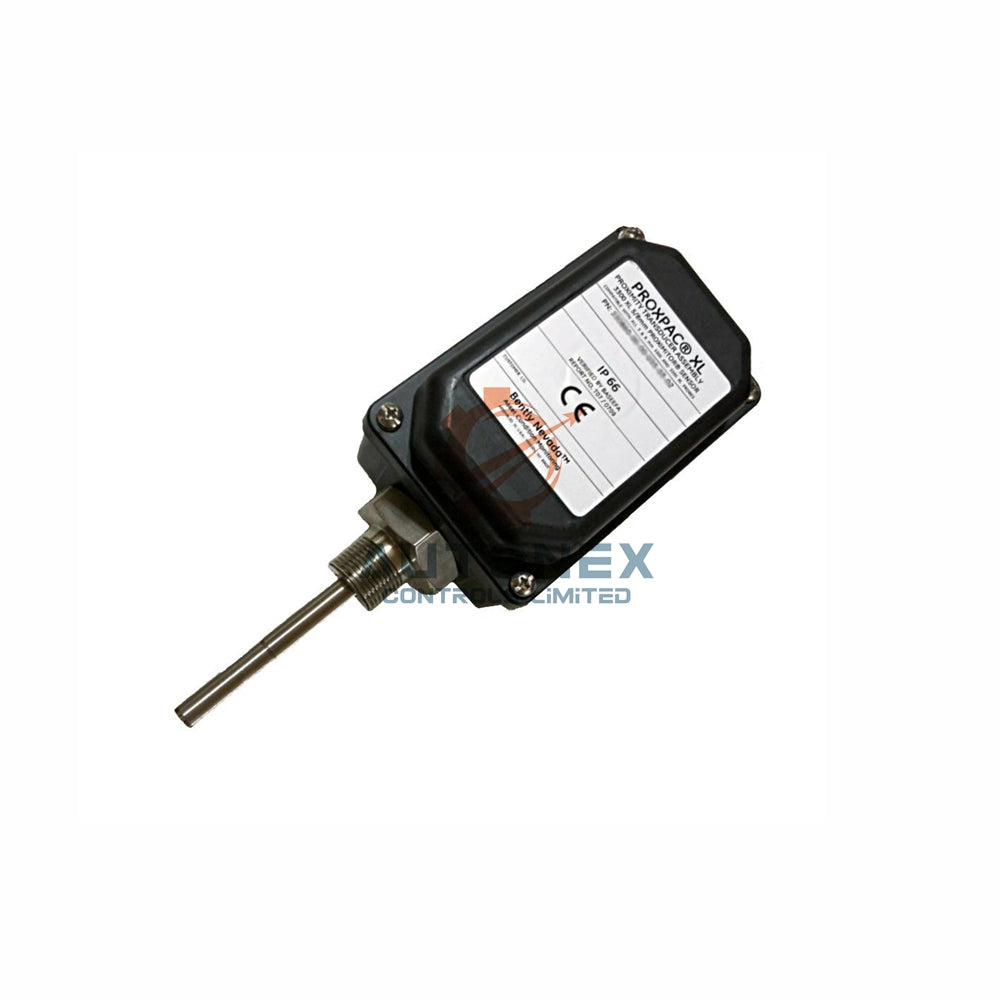

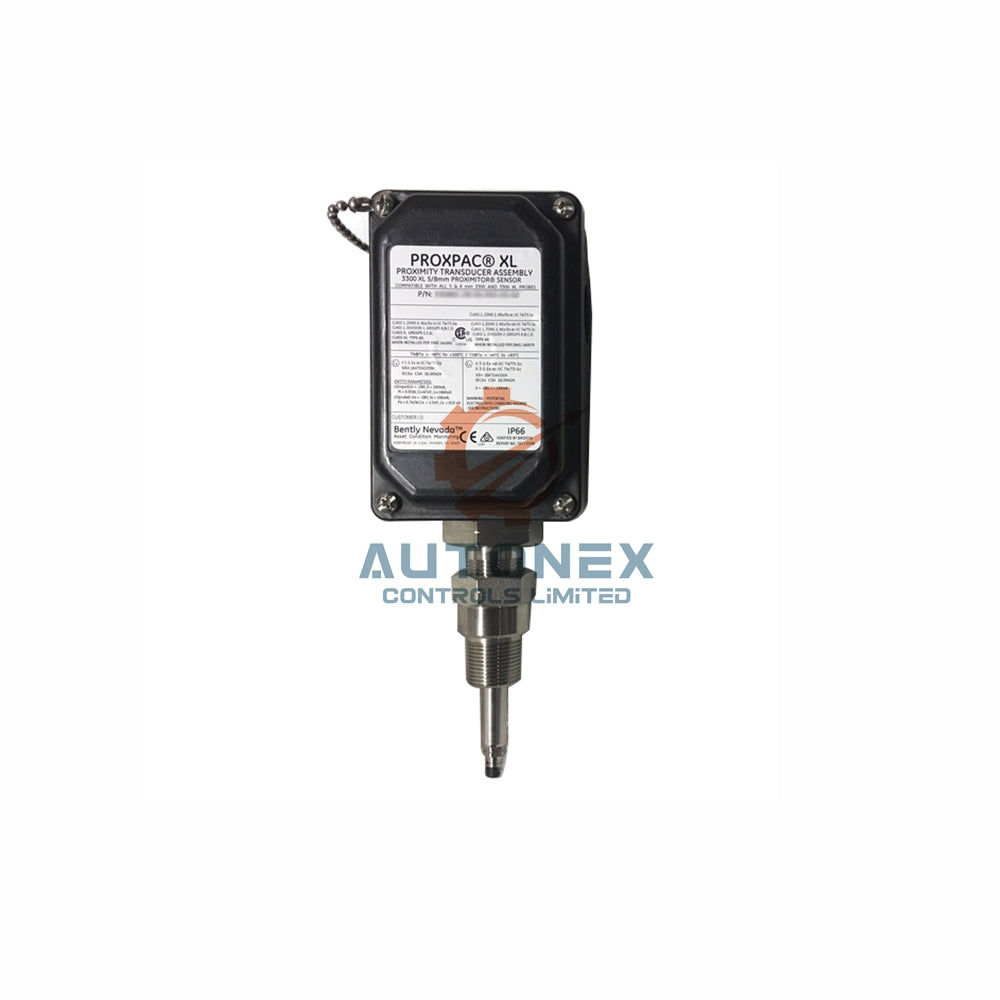

Bently Nevada 330880-28-15-048-00-02 PROXPAC XL Proximity Transducer

Technical Specifications

• Brand: Bently Nevada
• Model: 330880-28-15-048-00-02
• Series: PROXPAC XL Proximity Transducer
• Category: Eddy Current Proximity Transducers
• Probe and Approvals Option: 28 = 3300 XL 8 mm probe with Multiple Approvals
• Standoff Adapter Option (B Dimension): 15 = 1.5 in
• Probe Penetration Option (C Dimension): 048 = 48 mm
• Fittings Option: 00 = No fittings; two plugs and two washers
• Mounting Thread Option: 02 = 3/4-14 NPT
• Weight: 1.44 kg (3.2 lbm) typical
• Housing Rating: IP66 verified by BASEEFA report T07/0709
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Probe Cable: 1 metre, 75 Ω triaxial, FEP insulated
• Probe Connector: Gold-plated brass ClickLoc connector
• Probe Tensile Strength: 330 N (75 lb) between probe cable and case, maximum
• Housing Material: UV resistant, glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve Material and Retaining Chain: AISI 304 stainless steel
• Outer Sleeve and Retaining Screws: AISI 303 stainless steel
• Sleeve O-Ring Material: Neoprene
• Grounding Liner and Retaining Plate: AISI 304 stainless steel
• Vibration Isolation Material: Extra soft cellular silicone
• Recommended Torque: Retaining nut 29.5 N·m (260 in·lb); probe sleeve locknut 39.3 N·m (350 in·lb)
• Housing Strength: Supports 912 N (205 lbf) placed 38 mm from the unsupported end
• Housing Impact Strength: Withstands 4 Joule impacts at -39°C and 115°C; CSA verified 7 Joule impact at room temperature
• Probe Operating Temperature: -51°C to +177°C (-60°F to +350°F)
• Low Temperature Caution: Exposure below -34°C (-29°F) may cause premature pressure seal failure
• Power Requirement: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum; -23 Vdc to -26 Vdc with barriers
• Supply Sensitivity: Less than 2 mV output change per volt input change
• Output Resistance: 50 Ω
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); maximum 305 metres (1,000 feet) between Proximitor Sensor and monitor
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils), approximately -1 Vdc to -17 Vdc
• Recommended Gap Setting: 1.27 mm (50 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% from 0°C to +45°C
• Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) with components at 0°C to +45°C
• Frequency Response: 0 to 10 kHz: +0, -3 dB with up to 305 metres of field wiring
• Minimum Target Size: 15.2 mm (0.6 in) diameter flat target
• Minimum Shaft Diameter: 50.8 mm (2.0 in)

Installation Guide

• Verify the 3/4-14 NPT mounting thread matches your machine housing port.
• Set the standoff adapter to the 1.5 inch B dimension before tightening.
• Confirm the probe penetration reaches 48 mm for correct target positioning.
• Apply the recommended torque of 29.5 N·m to the retaining nut.
• Apply the recommended torque of 39.3 N·m to the probe sleeve locknut.
• Set the recommended gap at 1.27 mm (50 mils) for a stable signal.
• Use 3-conductor shielded triax cable for field wiring up to 305 metres.
• Respect the -51°C to +177°C operating range for reliable readings.
• Avoid exposure below -34°C to protect the pressure seal.

Package List

• 1 × Bently Nevada 330880-28-15-048-00-02 PROXPAC XL proximity transducer
• 1 × 3300 XL 8 mm probe with 1 metre cable (pre-installed)
• 1 × Standoff adapter (1.5 in)
• 1 × Mounting hardware set (two plugs and two washers)
• 1 × Protective shipping box

Shipping and Support

• We keep this transducer in stock for immediate order processing.
• We ship within 5 days after payment confirmation.
• We use FedEx, UPS, and DHL for global delivery.
• We support 30-day returns for eligible orders.
• We provide new original products only.

FAQ

• Q: What is the linear range of this transducer?
  A: The linear range is 2 mm (80 mils) from 0.25 mm to 2.3 mm.
• Q: What is the recommended gap setting?
  A: The recommended gap setting is 1.27 mm (50 mils).
• Q: What is the incremental scale factor?
  A: The ISF is 7.87 V/mm (200 mV/mil) ±5% from 0°C to +45°C.
• Q: What is the frequency response?
  A: The frequency response is 0 to 10 kHz: +0, -3 dB.
• Q: What is the mounting thread size?
  A: The mounting thread is 3/4-14 NPT.
• Q: What is the probe operating temperature range?
  A: The probe operates from -51°C to +177°C (-60°F to +350°F).
• Q: What is the housing rating?
  A: The housing carries an IP66 rating verified by BASEEFA.
• Q: What is the minimum shaft diameter?
  A: The minimum shaft diameter is 50.8 mm (2.0 in).
• Q: How fast do you ship?
  A: We ship within 5 days using FedEx, UPS, or DHL.
• Q: Can I return the product?
  A: Yes, we support 30-day returns for eligible orders.
