330876-03-90-01-05 3300 XL 50mm Probe Bently Nevada

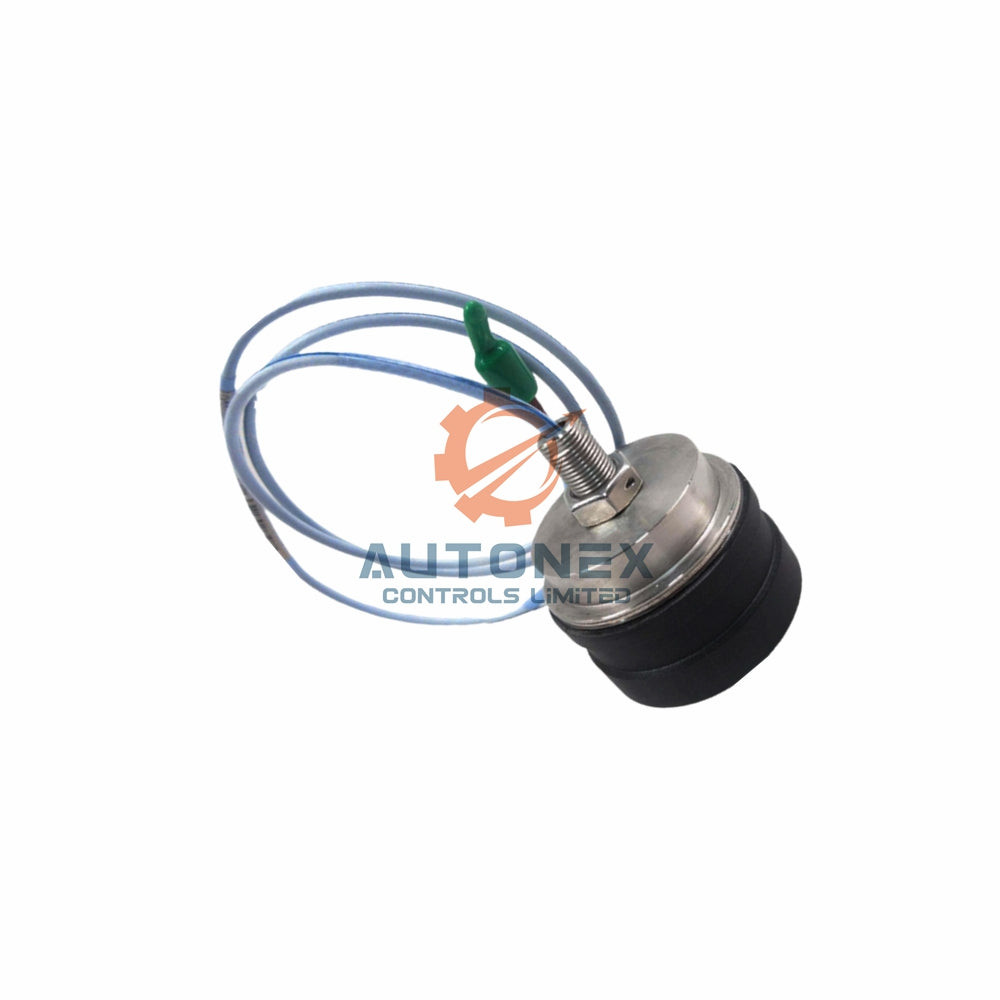

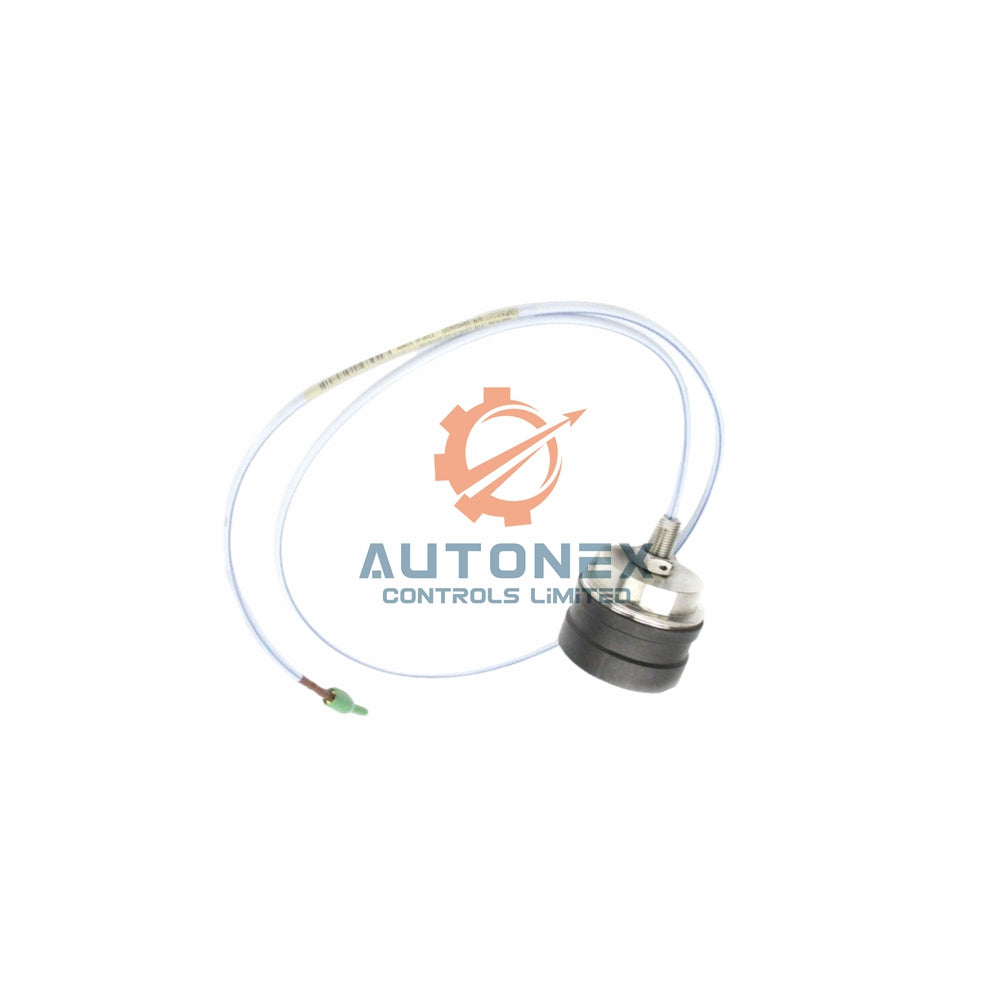

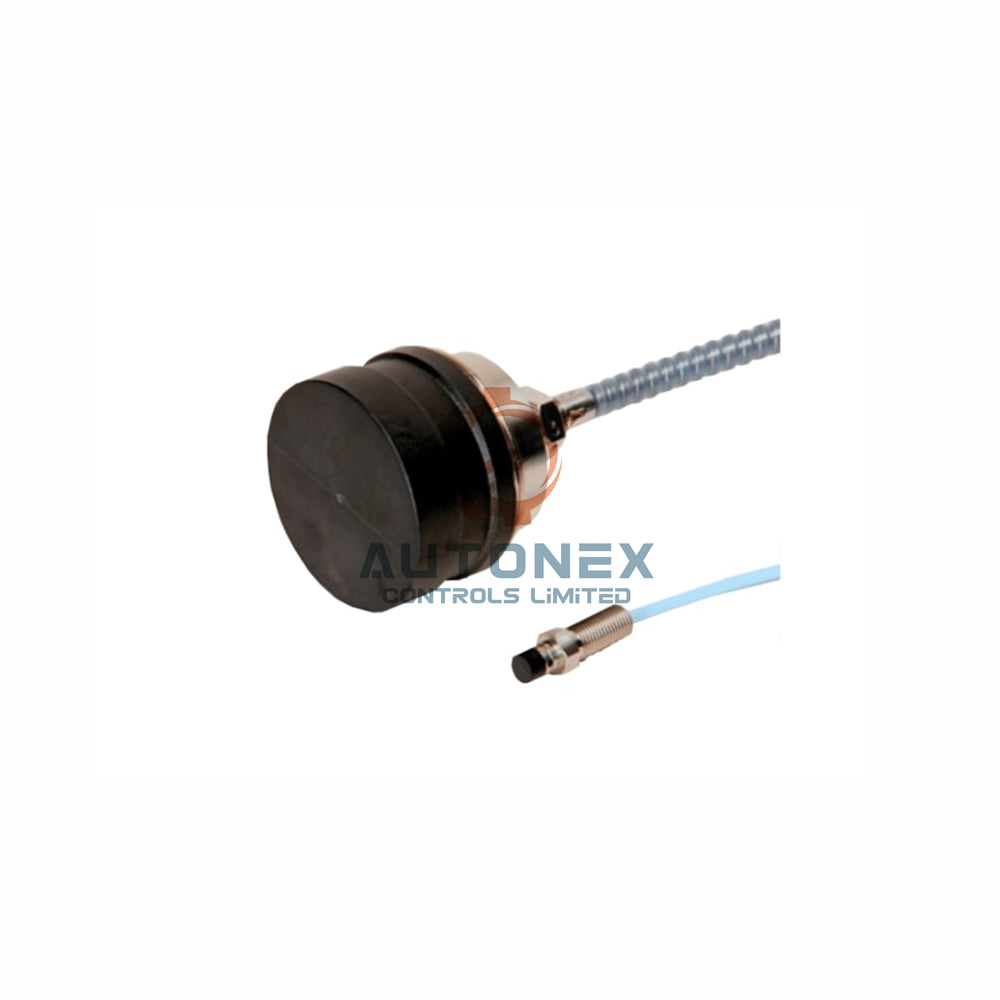

3300 XL 50 mm Proximity Probe – Model 330876-03-90-01-05 by Bently Nevada

Key Technical Specifications

• Brand & Model: Bently Nevada – 330876-03-90-01-05 (3300 XL 50 mm Proximity Probe).
• Probe Case Type (-03): Smooth 1.99 inch diameter, side exit design.
• Total Length Option (-90): 9.0 meters (29.5 feet) probe cable.
• Armor Option (-01): High Temperature FluidLoc cable with armor.
• Agency Approval Option (05): Multiple approvals for global use.
• Operating & Storage Temperature (continuous): -35°C to +200°C (-31°F to +392°F).
• Short-term Temperature Capability: +250°C (+482°F) for less than 24 hours.
• Probe DC Resistance (9.0 m length): 8.9 ± 1.1 Ω from center to coaxial conductor.
• Probe Tip Material: Polyphenylene Sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable Specification: 75 Ω triaxial PFA-insulated FluidLoc cable (1, 5 or 9 meter options).
• Probe Case Thread: 1/2-20 English threads.
• Maximum Length of Thread Engagement: 0.750 inch (19.05 mm).
• Overall Case Diameter: 1.99 inches for both straight exit and side exit versions.

Design Features for Harsh Environments

• High Temperature FluidLoc Cable: Standard on all 50 mm probes for moisture protection.
• Special High-Temperature ClickLoc Connectors: Standard on both probe and extension cable.
• Connector Protectors & Installation Tool: Each probe and cable includes protectors and a disposable tool to keep connectors free of contamination.
• Removable Collar on ClickLoc Connector: Facilitates routing the probe cable through tight clearances.
• Front and Rear Seals: Combine with FluidLoc cable to block moisture from entering the probe tip.
• Case Styles Available: Straight exit with 1/2-20 English or M14x1.5 metric threads, plus locknut with predrilled safety wire holes.
• Side Exit Mounting: Two 1/4-20 mounting holes in the rear of the probe case.

Frequently Asked Questions (FAQ)

• Q: Is the 330876-03-90-01-05 probe brand new and original?
  A: Yes, we supply only new and original Bently Nevada 3300 XL 50 mm proximity probes in factory packaging.
• Q: Do you have this 3300 XL 50 mm probe in stock?
  A: Yes, we have ample stock of the 330876-03-90-01-05 and other 3300 XL series probes.
• Q: How quickly can you ship this probe?
  A: We process and ship all orders within 5 business days via FedEx, UPS, or DHL.
• Q: What is the maximum continuous operating temperature?
  A: The probe operates continuously from -35°C to +200°C (-31°F to +392°F).
• Q: Can the probe survive short-term temperature spikes?
  A: Yes, it withstands intermittent temperatures up to +250°C (+482°F) for less than 24 hours.
• Q: What cable type does the 3300 XL 50 mm probe use?
  A: It uses a 75 Ω triaxial PFA-insulated High Temperature FluidLoc cable with armor.
• Q: Does this probe include connector protectors?
  A: Yes, each probe and extension cable comes with connector protectors and a disposable installation tool.
• Q: What is the probe case diameter?
  A: The overall case diameter equals 1.99 inches for both straight exit and side exit versions.
• Q: What thread type does the straight exit version have?
  A: It uses 1/2-20 English threads. Metric M14x1.5 is also available upon request.
• Q: What is your return policy?
  A: We accept returns within 30 days of delivery for unused items in original packaging.
