330730-080-02-05 Bently Nevada 3300 XL Extension Cable

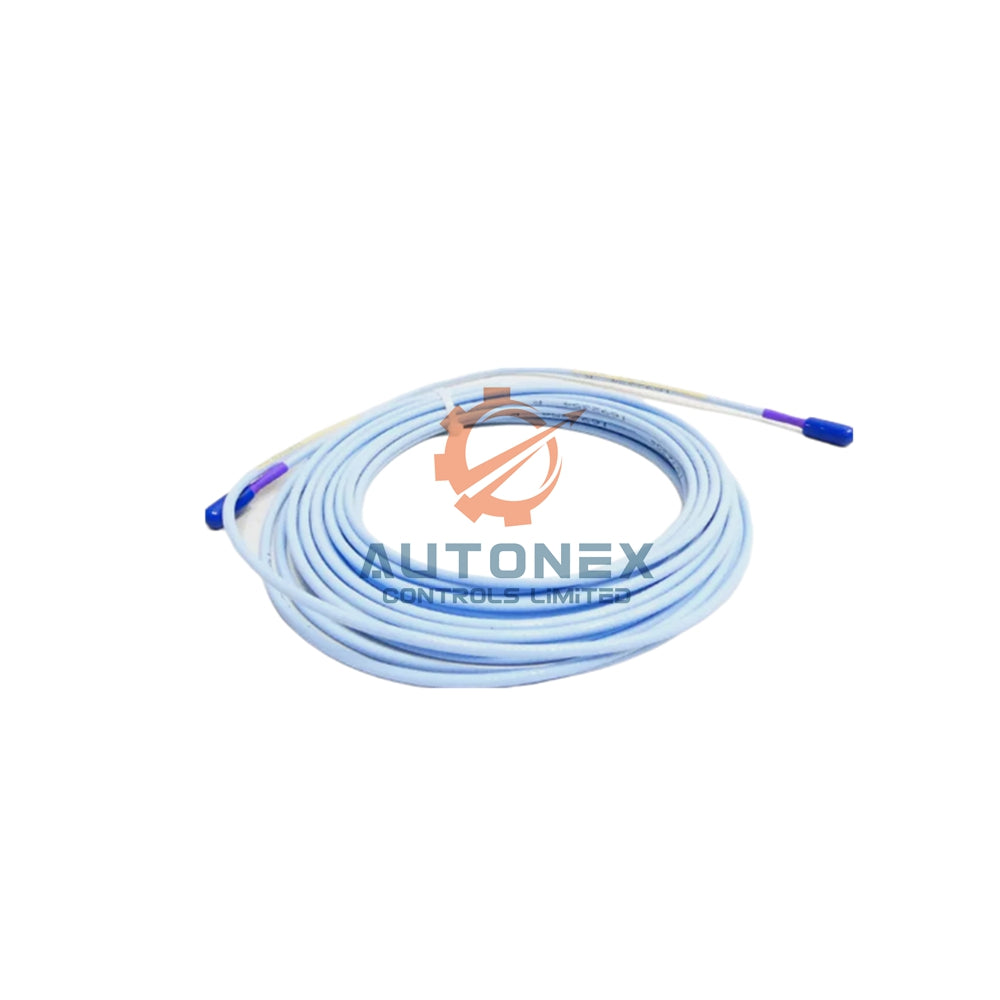

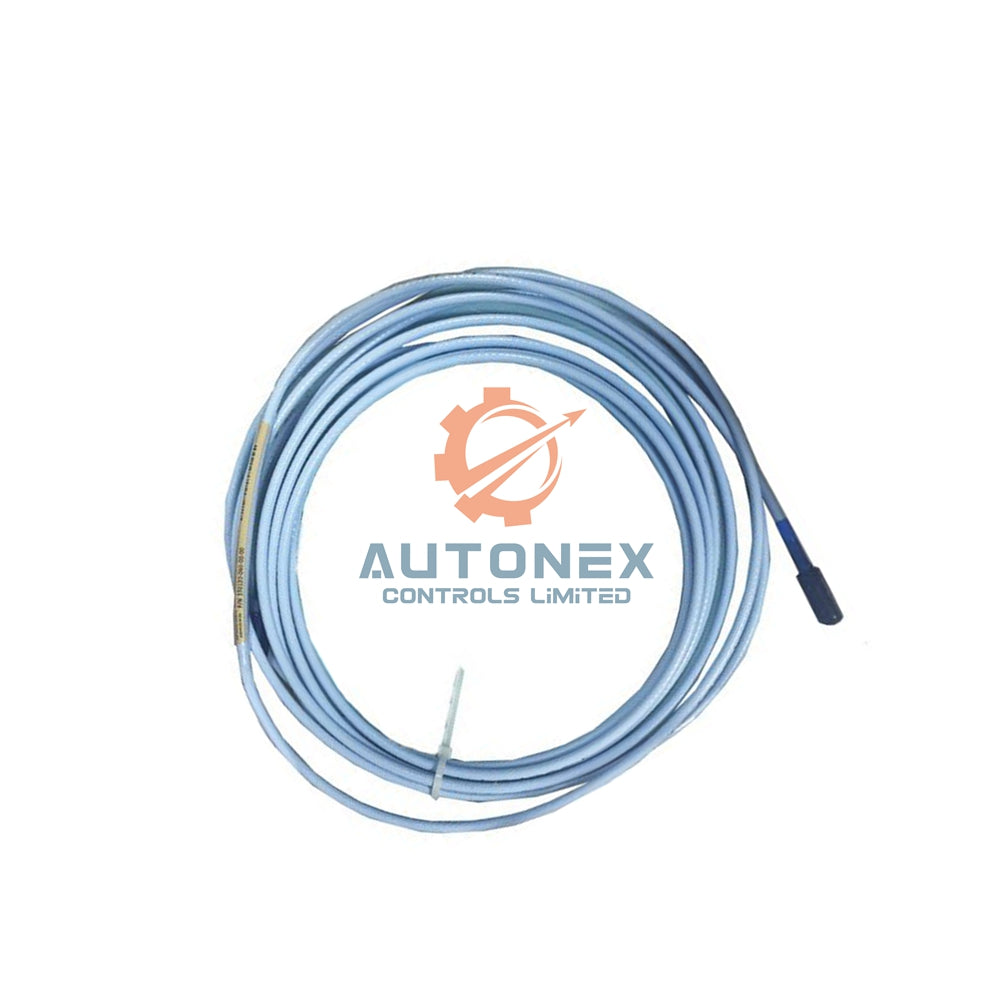

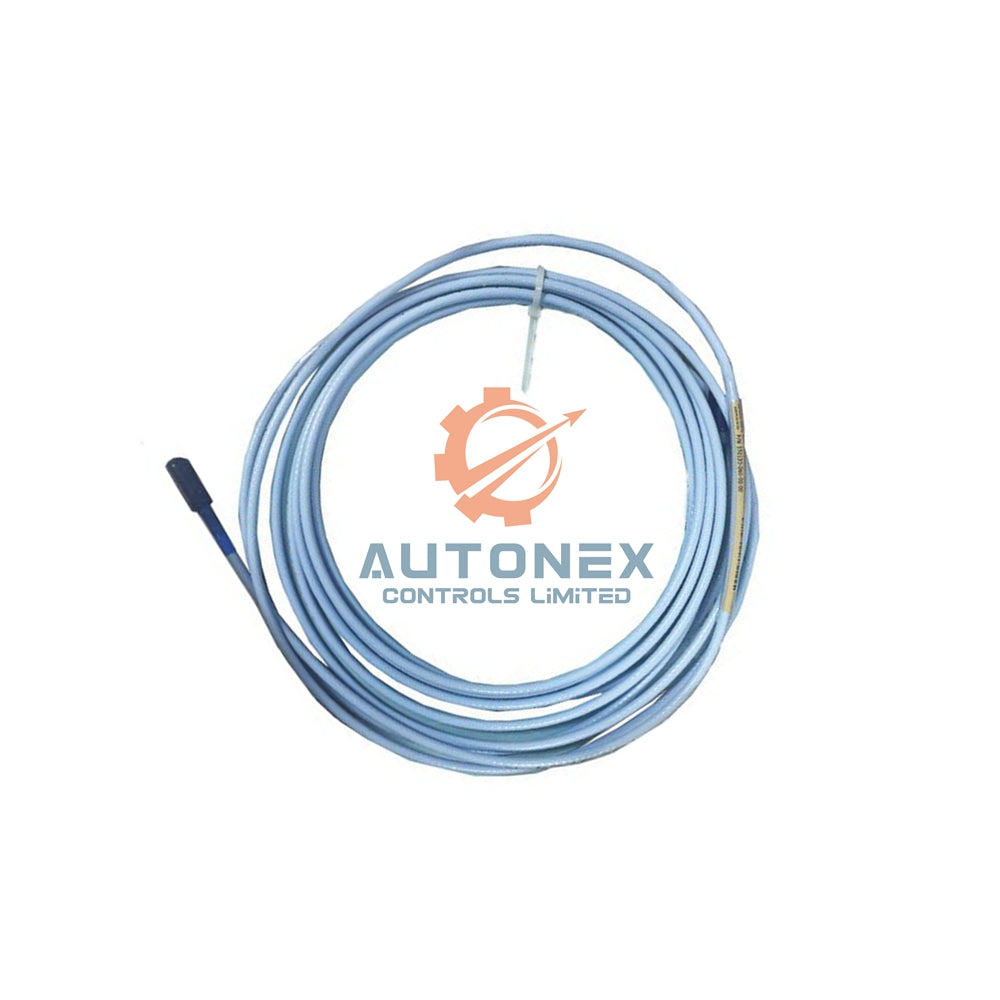

Bently Nevada 330730-080-02-05 3300 XL 11 mm Extension Cable

Key Technical Specifications

• Brand & Model: Bently Nevada, 330730-080-02-05, 3300 XL 11 mm Extension Cable.
• Cable Length: 8.0 metres (26.2 feet) for flexible installation distances.
• Connector Type: Standard cable with a connector protector (Option 02).
• Agency Approvals: Multiple approvals (Option 05) for global compliance.
• Capacitance: Typical value of 69.9 pF/m (21.3 pF/ft).
• Cable Material: 75 Ω triaxial with FEP insulation for durability.
• Optional Armor: Flexible AISI 302 SST with an FEP outer jacket.
• Temperature Range: Operating and storage from -51°C to +177°C (-60°F to +351°F).
• DC Resistance (8.0m): Center conductor resistance at 2.0 ± 0.5 ohms. Coaxial conductor resistance at 0.6 ± 0.2 ohms.
• Linear Range: 4.0 mm (160 mils) starting from 0.5 mm (20 mils) off target.
• Recommended Gap Setting: 2.5 mm (100 mils) for optimal performance.
• Probe Tip Material: Polyphenylene sulfide (PPS) for robust sensing.
• Probe Case Material: AISI 304 stainless steel (SST) for corrosion resistance.
• Probe Cable Options: Available in total lengths of 1, 5, or 9 metres.
• Weight (Standard Cable): 45 g/m (0.5 oz/ft) for easy handling.
• Weight (Armored Cable): 140 g/m (1.5 oz/ft) for extra protection.
• Pull Strength: CableLoc design provides 330 N (75 lb) pull strength.
• Connector Type: Gold-plated brass ClickLoc connectors prevent loosening.

Frequently Asked Questions (FAQ)

• Is this a brand new original part? Yes, we supply only brand new original products.
• Do you have the 330730-080-02-05 in stock? Yes, we have this model in stock for immediate orders.
• What is your shipping time? We dispatch all orders within 5 business days.
• Which carriers do you use? We commonly use FedEx, UPS, and DHL for fast delivery.
• Can I return this cable? Yes, we support returns within 30 days of purchase.
• Is the cable compatible with other target materials? Factory calibration uses AISI 4140 steel. Other materials available upon request.
• Does the extended DSL range work with zener barriers? No, the extended DSL range does not apply when using zener barriers.
