330709-000-070-50-01-00 Bently Nevada 3300 XL 11 mm Probe

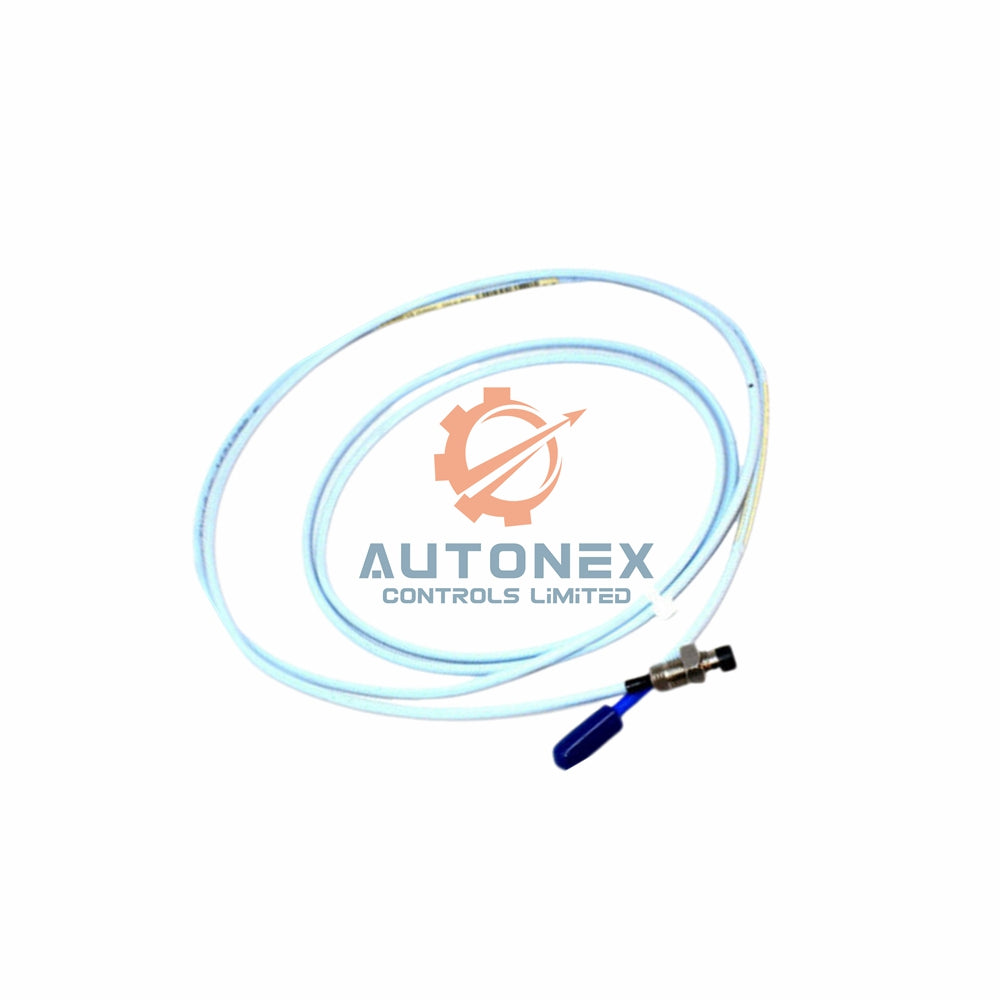

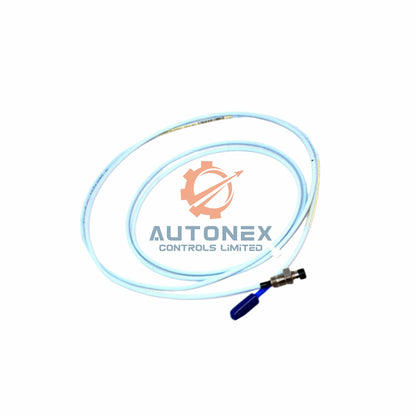

Bently Nevada 330709-000-070-50-01-00: 3300 XL 11 mm Proximity Probe

Technical Specifications

• Brand: Bently Nevada. Model: 330709-000-070-50-01-00. Type: 3300 XL 11 mm Proximity Probe.
• Unthreaded length option: 000 = 0 mm. Overall case length: 070 = 70 mm.
• Total length option: 50 = 5.0 meters. Probe DC resistance: 7.2 ± 0.8 ohms from center conductor to outer conductor.
• Recommended minimum target size (flat surface): 30.5 mm diameter. Recommended minimum shaft diameter: 152 mm (6.0 inches).
• Probe case material: AISI 304 stainless steel (SST). Cable specification: 75 Ω triaxial, FEP insulated.
• Probe case torque (M16x1.5): Maximum rated 63.3 N•m (560 in•lb). Recommended torque 21.1 N•m (187 in•lb).
• Connector-to-connector torque: Finger tight maximum 0.565 N•m (5 in•lb).
• Minimum bend radius (with or without SST armor): 25.4 mm (1.0 inch). Maximum thread engagement length: 24 mm.
• Operating and storage temperature range: -52°C to +177°C (-62°F to +351°F). Avoid exposing probe below -34°C to protect pressure seal.
• Cross-talk limitation: Requires proper target size for accurate readings. Use flat surface target ≥30.5 mm diameter.

Frequently Asked Questions (FAQ)

• Q: Is this probe a genuine Bently Nevada product?
  A: Yes, it is 100% brand new original from Bently Nevada, made in U.S.A. We never supply counterfeits.
• Q: What is the total probe length of 330709-000-070-50-01-00?
  A: The total length equals 5.0 meters (16.4 feet). Use it only with the five‑meter Proximitor Sensor.
• Q: What is the difference between connector option 01 and 02?
  A: Option 01 includes a connector protector for extra durability. Option 02 has a standard ClickLoc connector without protector.
• Q: What is the temperature limit for this probe?
  A: Standard operating range is -52°C to +177°C. See temperature classification table for EPL-specific ratings.
• Q: Do you have this item in stock?
  A: Yes, we have stock available. We ship within 5 days after order confirmation.
• Q: What is the return policy?
  A: We support 30‑day returns for unused items in original condition. Contact us before returning.
• Q: Which thread type does the probe case use?
  A: It uses an M16 x 1.5 thread with maximum engagement length of 24 mm. No armor included.
• Q: What is the minimum shaft diameter for proper use?
  A: Bently Nevada recommends a minimum 152 mm (6.0 inches) shaft diameter for best linearity.
• Q: What agency approval does this probe carry?
  A: Option 00 means no specific agency approval is required for this configuration.
