330708-00-10-90-12-00 Bently Nevada 3300 XL Armored Probe

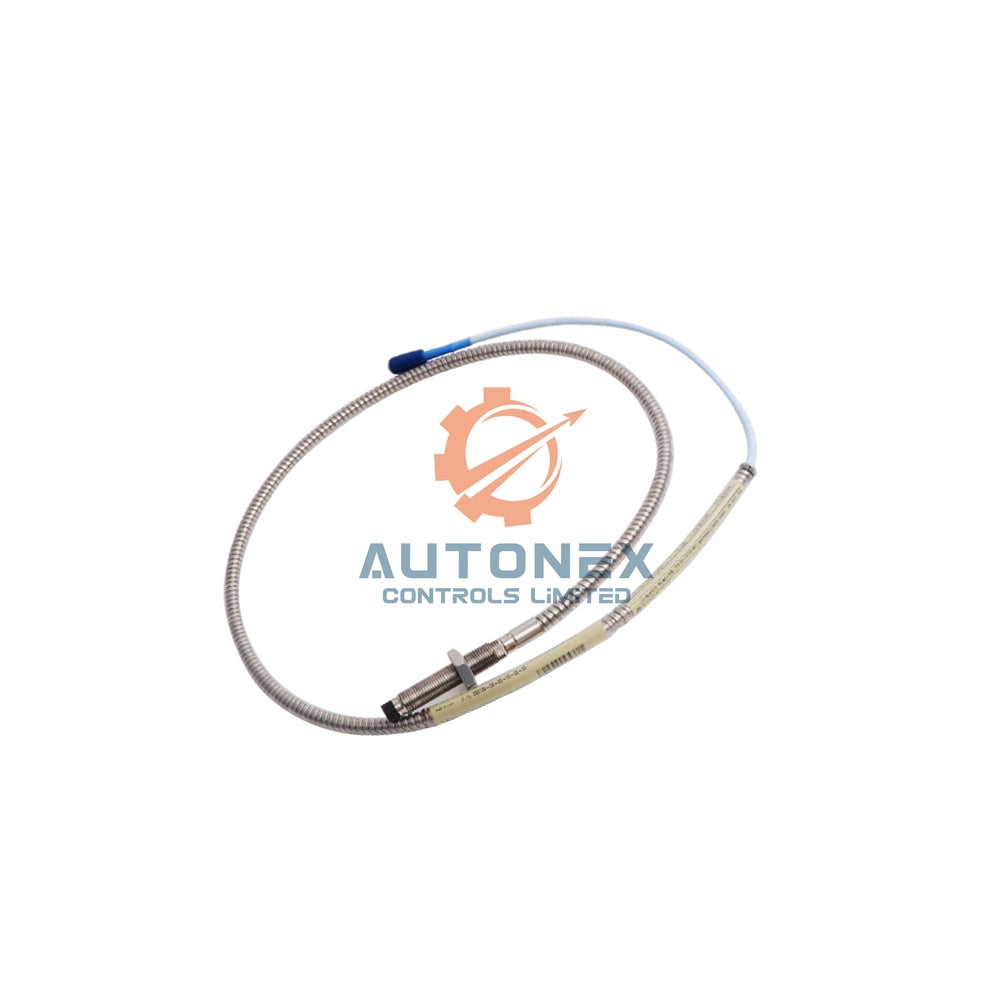

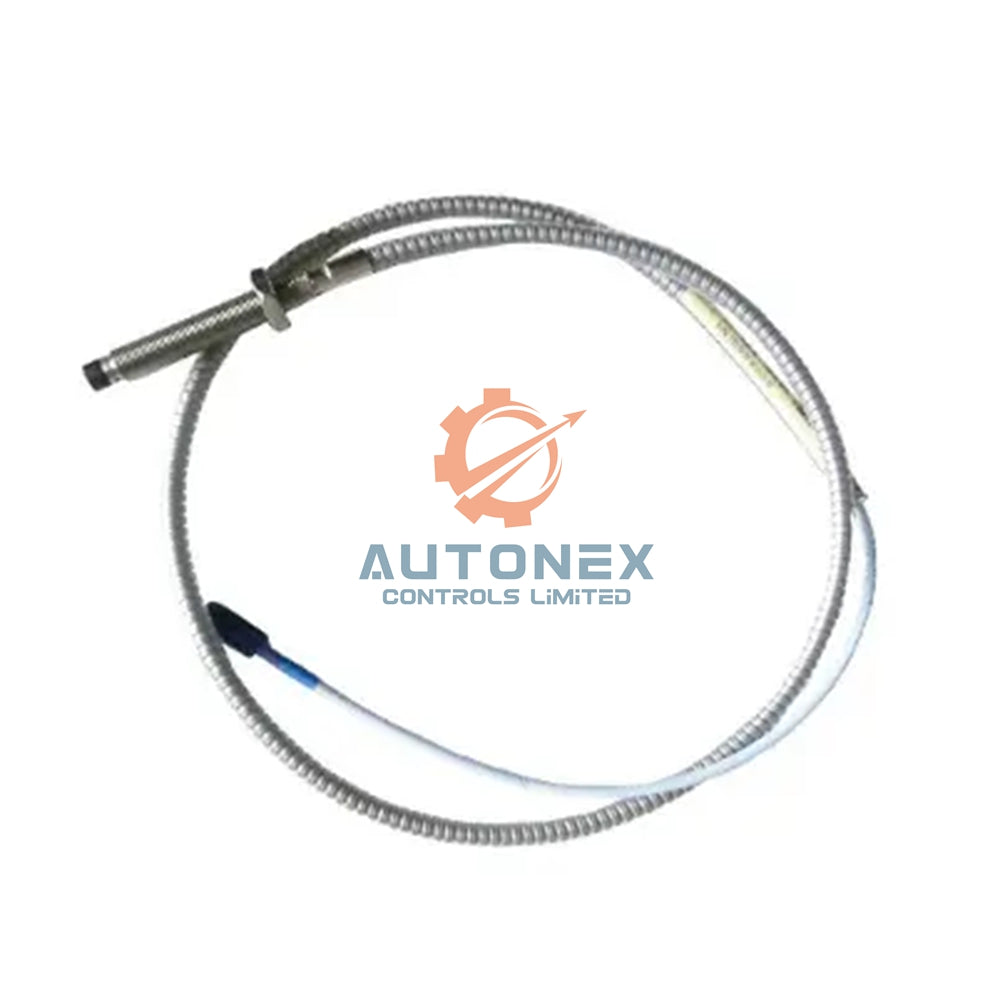

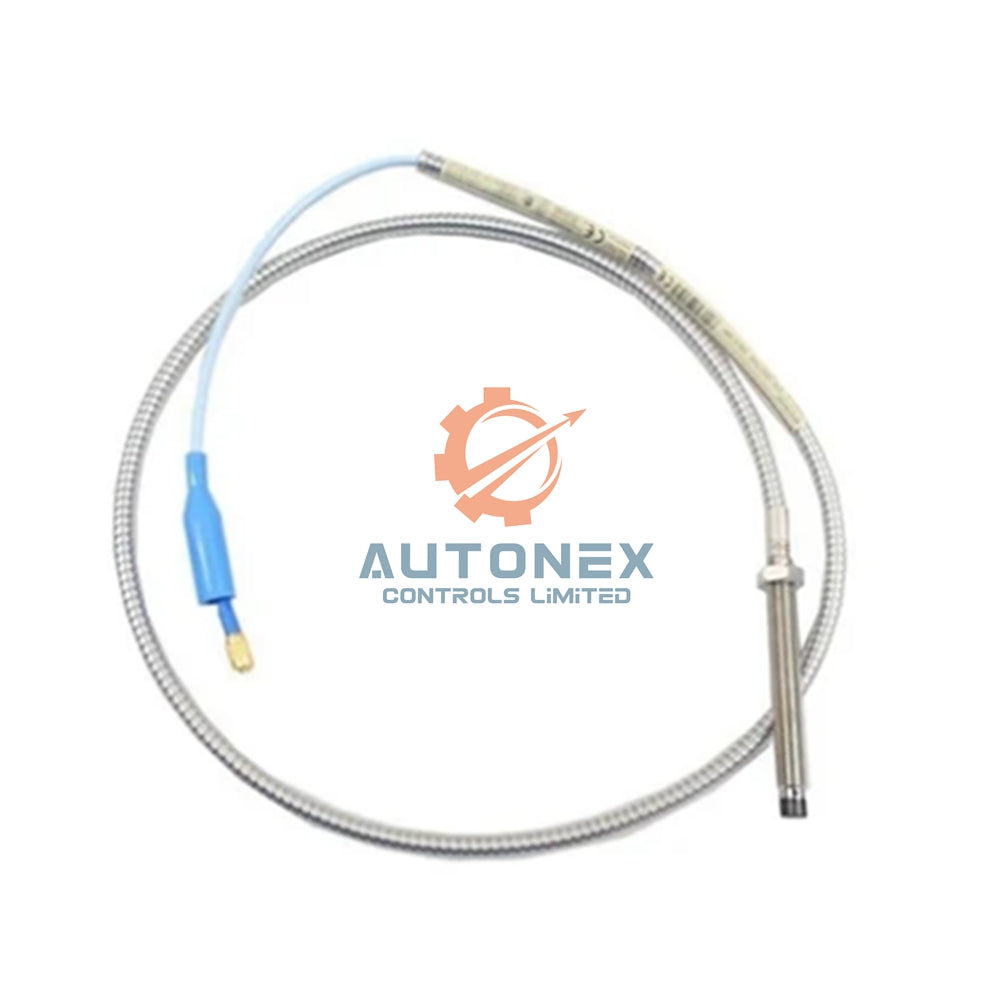

Bently Nevada 330708-00-10-90-12-00 3300 XL 11 mm Proximity Probe

• Brand & Model: Bently Nevada 330708-00-10-90-12-00 from the 3300 XL 11 mm Proximity Transducer System series.
• Tip Material: Polyphenylene sulfide (PPS). Case Material: AISI 304 stainless steel.
• Cable: 9.0 m (29.5 ft) of 75 Ω triaxial FEP with FluidLoc. Connector: Miniature ClickLoc.
• Temperature Range: –51°C to +177°C. Minimum drift: <0.01% per °C.
• Resistance: 5.9 ± 0.5 Ω (at 1 m). Dielectric strength: 1000 VAC for 1 second.
• Insulation resistance: >100 MΩ @ 500 VDC. Approval: Not required.
• Thread: 5/8-18 UNF with max engagement of 0.938 in. Alternate options: M16×1.5 (24 mm) or M14×1.5 (21 mm).
• Torque: Max 45.2 N·m. Recommended torque: 15.2 N·m. Bend radius: 25.4 mm (1.0 in).
• Seal Material: Viton O-ring. Weight: 0.17 kg.

Frequently Asked Questions (FAQ)

• Q: Is the Bently Nevada 330708-00-10-90-12-00 brand new and original?
  A: Yes, we only supply brand new and original Bently Nevada probes.
• Q: Do you have this model in stock?
  A: Yes, we have the 330708-00-10-90-12-00 in stock for quick dispatch.
• Q: How long does delivery take?
  A: We dispatch within 5 days. Shipping uses FedEx, UPS, or DHL for fast delivery.
• Q: What is the insulation resistance of this probe?
  A: The probe provides >100 MΩ insulation resistance at 500 VDC.
• Q: What is the dielectric strength rating?
  A: It offers 1000 VAC dielectric strength for 1 second.
• Q: Can I return the product?
  A: Yes, we support returns within 30 days from the delivery date.
• Q: Where can I download the full datasheet?
  A: You can download the PDF below for complete technical specifications.

Download the official datasheet here: 3300 XL 11 mm Proximity Transducer System Datasheet (PDF). This file contains detailed resistance, torque, drift, and temperature data.
