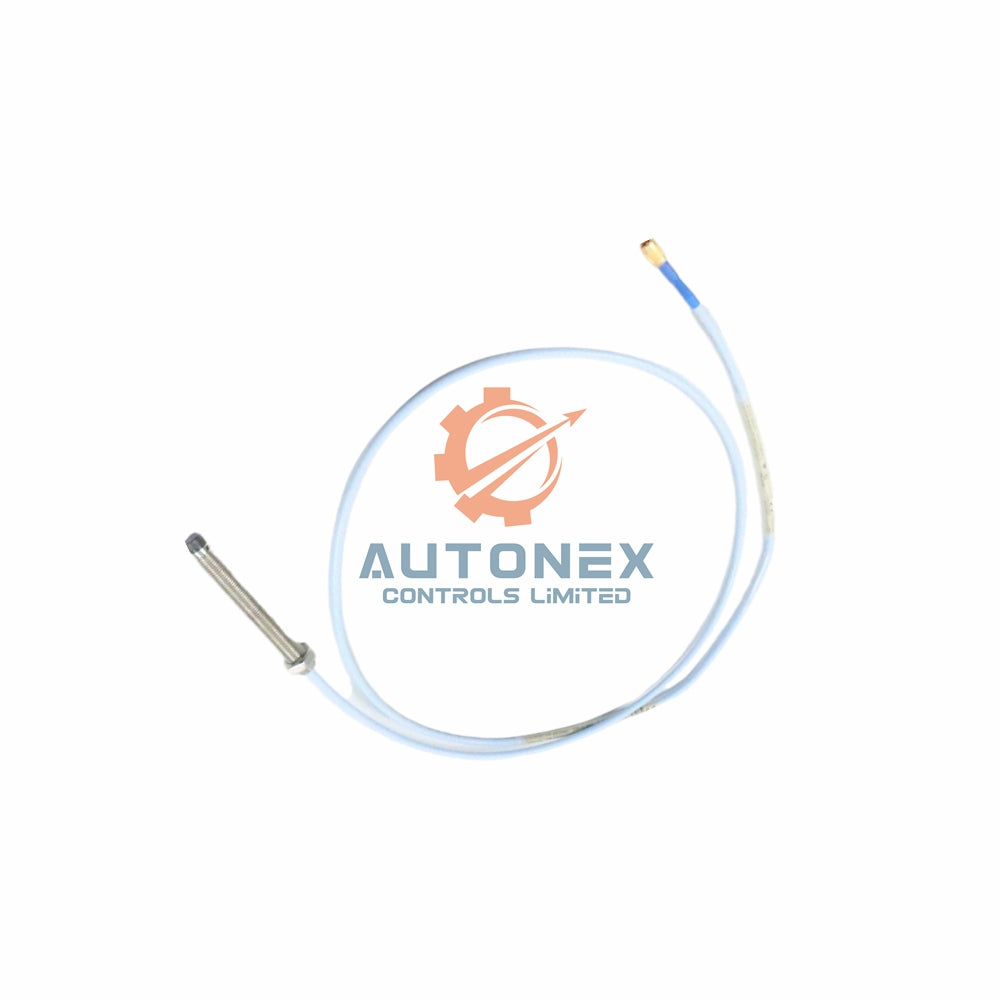

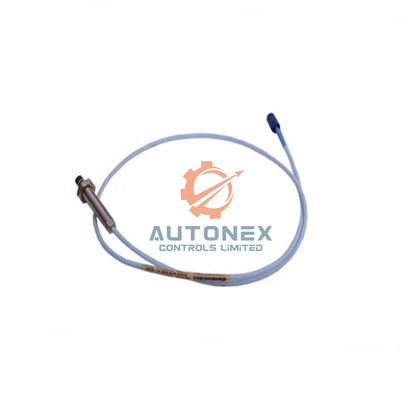

330707-00-10-90-02-05 Proximity Transducer 9m Cable Bently Nevada

3300 XL 11 mm Proximity Transducer System Product Overview

Key Technical Specifications

• Brand: Bently Nevada. Model: 330707-00-10-90-02-05. This system uses an 11 mm probe with 5/8-18 UNF thread and no armor.
• Operating temperature range: -52°C to +177°C (-62°F to +351°F). This applies to both operation and storage conditions.
• DC resistance (9 m cable): 8.5 Ω ± 1.1. The system uses a 75 Ω triaxial cable with FEP insulation.
• Minimum bend radius: 25.4 mm (1.0 in). The probe tip uses Polyphenylene sulfide (PPS) material.
• Case material: AISI 304 stainless steel (SST). The unthreaded length for this model is 0 inches.
• Shipping weight: 0.17 kg. The total cable length is 9.0 meters (29.5 feet).
• The 330707-00-10-90-02-05 has an overall case length of 1.0 inch. It uses a ClickLoc connector with standard cable.
• Humidity tolerance: 0-95% non-condensing. This model includes multiple agency approvals (code 05).

Frequently Asked Questions (FAQ)

• Is the 330707-00-10-90-02-05 a genuine Bently Nevada part?
  Yes, we supply only new and original 3300 XL series transducers.
• Do you have this model in stock?
  Yes, we keep the 330707-00-10-90-02-05 in stock and ready to ship.
• What is the maximum cable length for this system?
  The total cable length for this model is 9.0 meters (29.5 feet). Other lengths are available by request.
• Can I use this probe in a high-vibration environment?
  Yes, the AISI 304 SST case handles high vibration well.
• Does the probe work with metric threaded mounting holes?
  Yes, you can use M16×1.5 or M14×1.5 adapters for metric installations.
• What is the temperature limit for the cable?
  The FEP insulated cable supports the full -52°C to +177°C range.
• What approvals does this model have?
  Code 05 provides multiple agency approvals for global use.
• What is the humidity tolerance?
  The system operates reliably in 0-95% non-condensing humidity conditions.

Download PDF file here: 3300 XL 11 mm Proximity Transducer System Datasheet
