330707-00-10-50-02-00 No Armored Proximity Probe Bently Nevada

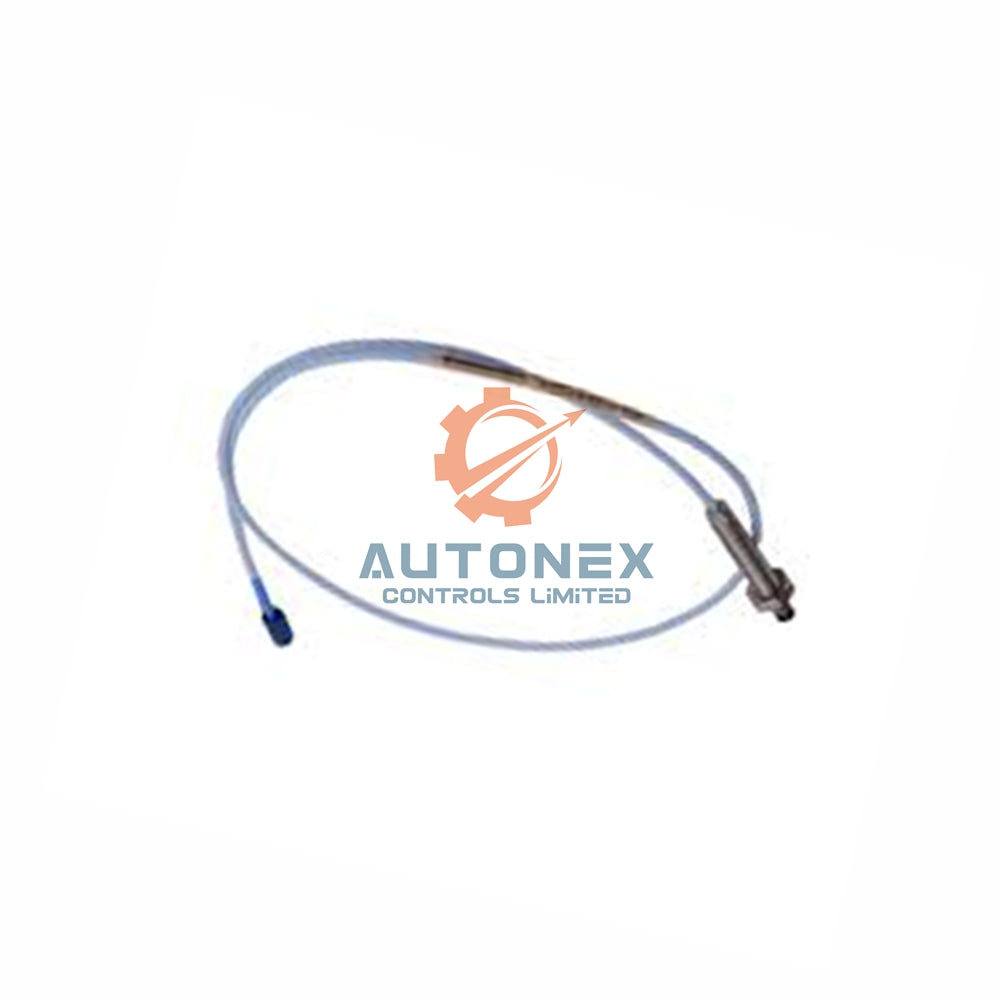

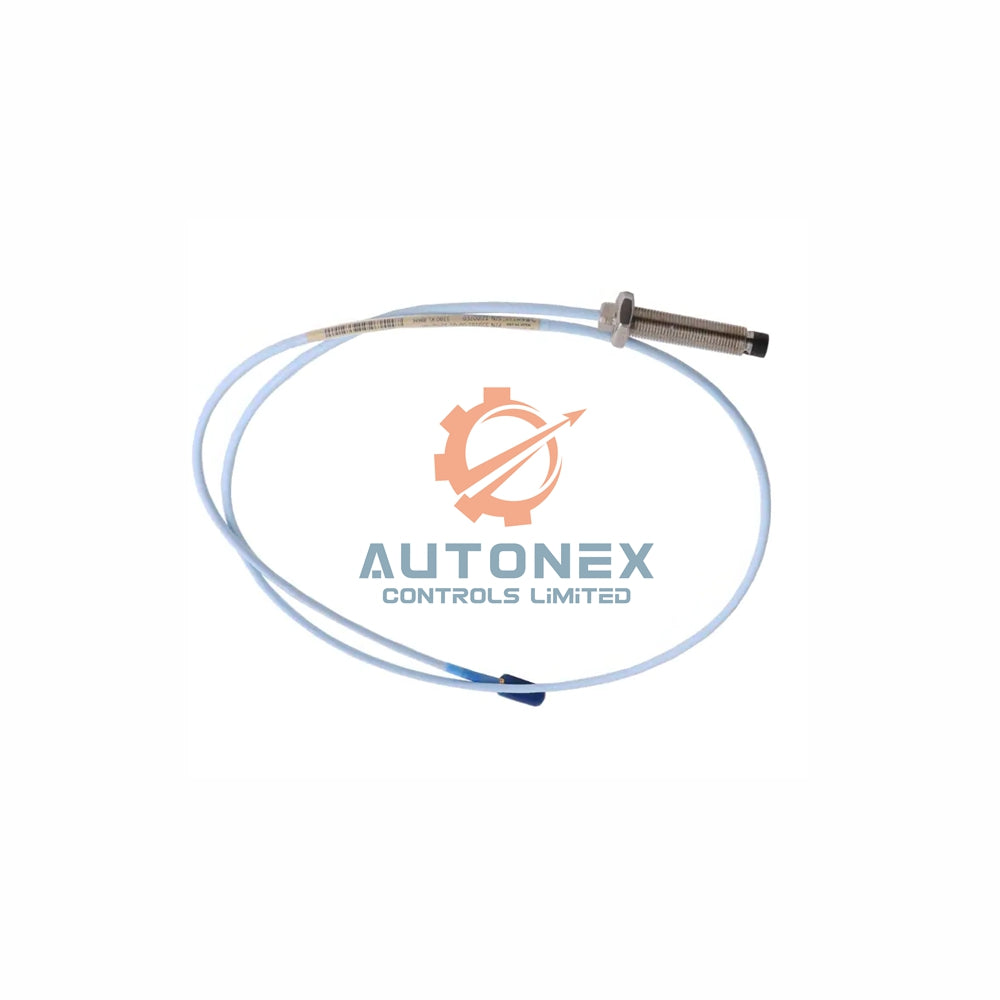

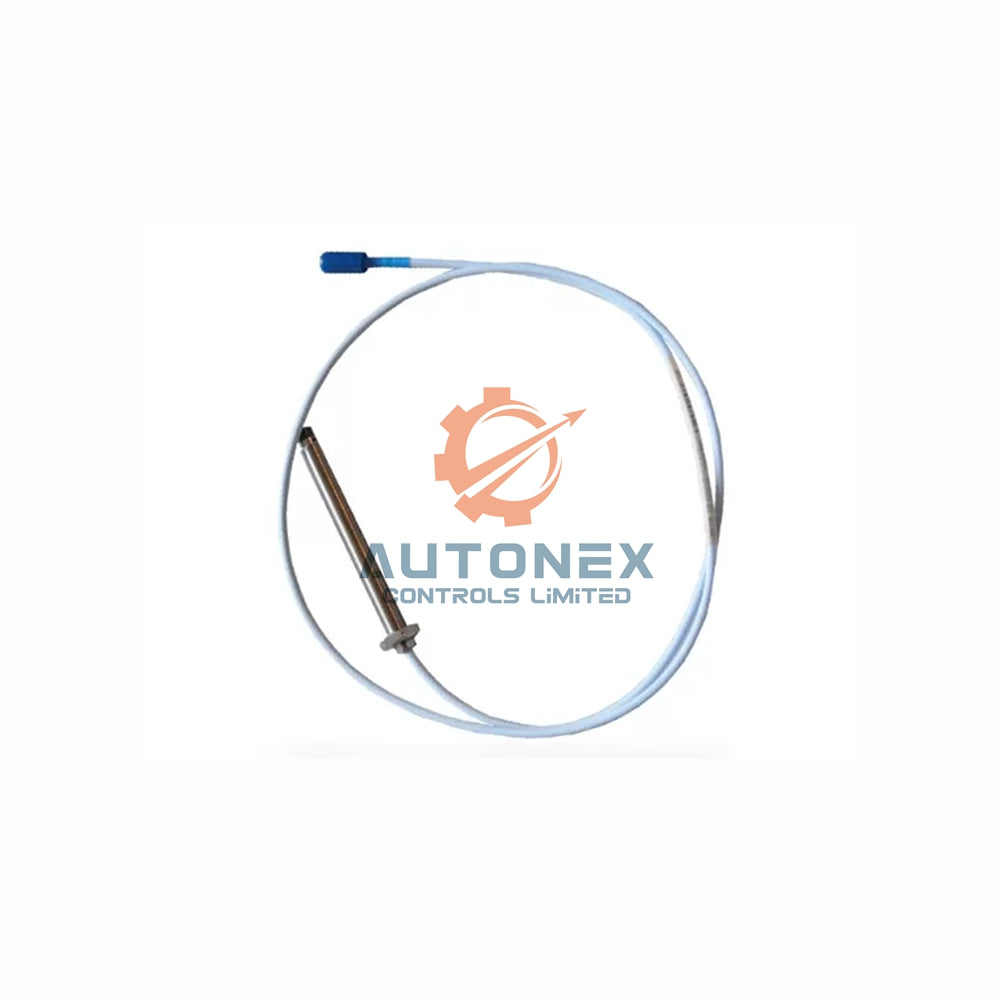

3300 XL 11 mm Proximity Probe – Model 330707-00-10-50-02-00

Technical Specifications

• Brand: Bently Nevada
• Model: 330707-00-10-50-02-00
• Unthreaded Length: 00 = 0 inches
• Case Length: 10 = 1.0 inch
• Cable Length: 50 = 5.0 meters (16.4 feet)
• Connector Type: 02 = Coaxial ClickLoc connector
• Approval Code: 00 = No special approvals

Material and Electrical Data

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω triaxial with FEP insulation
• DC Resistance at 5.0 m: 7.2 Ω ± 0.8
• Connector Max Torque: 0.565 N·m (5 in·lb)
• Case Max Torque: 45.2 N·m (400 in·lb)
• Recommended Case Torque: 15.2 N·m (133 in·lb)

Environmental and Mechanical Limits

• Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Minimum Bend Radius: 25.4 mm (1.0 inch)
• Max Thread Engagement: 0.750 inch for 1/2-20 UNF
• Shipping Weight: 0.17 kg
• Storage Life: 1 year
• Country of Origin: USA (COO available on request)

Frequently Asked Questions (FAQ)

• Q: Is the 330707-00-10-50-02-00 a brand new probe?
  A: Yes, we supply only brand new original Bently Nevada probes.
• Q: Do you have this 3300 XL 11 mm probe in stock?
  A: Yes, we keep the 330707-00-10-50-02-00 model in our warehouse.
• Q: Can I use this probe with a 9 m Proximitor sensor?
  A: No, you must use the 5 m Proximitor sensor with this 5 m cable version.
• Q: What is the maximum temperature for this probe?
  A: It operates from -51°C to +177°C continuously.
• Q: How should I store the probe before installation?
  A: Store in a dry place. The shelf life is 1 year from delivery.
• Q: Does this model include cable armor?
  A: Yes, the 330707-00-10-50-02-00 comes with armor for extra protection.

Download the full datasheet: 3300 XL 11 mm Proximity Transducer System Datasheet (PDF).
