330707-00-10-50-01-05 11mm Sensor Specs Bently Nevada

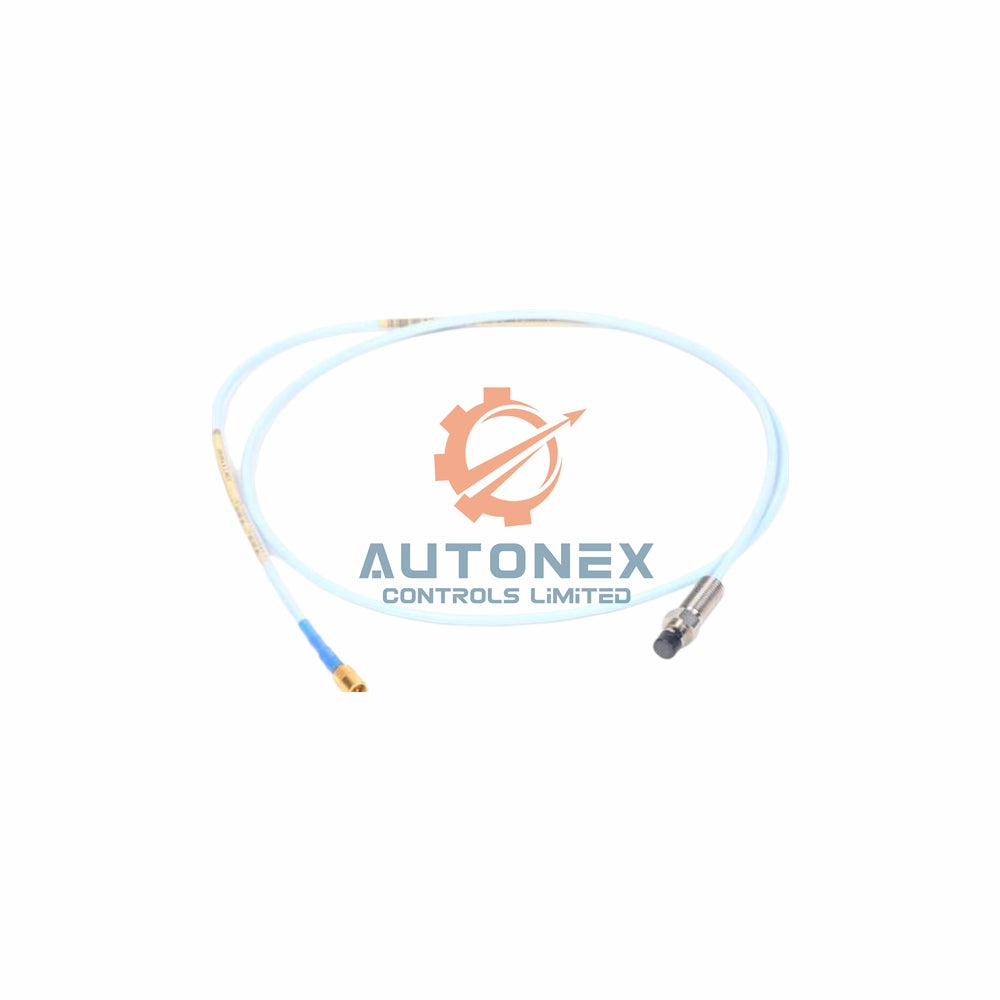

Bently Nevada 330707-00-10-50-01-05: 3300 XL 11 mm Probe Overview

• Model: 330707-00-10-50-01-05 belongs to the 3300 XL 11 mm Probe series from Bently Nevada.
• Thread type: 1/2-20 UNF with armor for secure installation. Alternate thread: M16×1.5 (24 mm).
• Case length: 1.0 inch and total length: 5.0 meters (16.4 feet).
• Cable style: Mini ClickLoc with protector, standard triaxial FEP cable at 75 Ω.
• Temperature range: -52 °C to +177 °C for harsh environments.
• Seal material: Viton O-ring ensures tight sealing against contaminants.
• Weight: only 0.17 kg, making it lightweight for easy handling.

Key Technical Specifications

• Resistance at 5 m cable: 7.2 Ω ± 0.8 Ω for consistent signal transmission.
• Thread engagement length: 0.750 inch for stable mounting.
• Recommended torque: 15.2 N·m; maximum torque 45.2 N·m.
• Connector torque: finger tight only, max 0.565 N·m to avoid damage.
• Minimum bend radius: 25.4 mm for cable protection.
• Case material: 304 stainless steel resists corrosion and wear.
• Tip material: PPS plastic offers excellent chemical resistance.
• Approvals: multiple industrial certifications (exact details on request).

Frequently Asked Questions (FAQ)

• Q: Is this item brand new and original?
  A: Yes, we supply only brand new, original Bently Nevada parts with full traceability.
• Q: Do you have stock for model 330707-00-10-50-01-05?
  A: We keep this model in stock for immediate shipment.
• Q: How long does delivery take?
  A: We dispatch within 5 working days via DHL, FedEx, or UPS.
• Q: What is the return policy?
  A: We support returns within 30 days from the delivery date.
• Q: Can I use this probe with a 8 mm Proximitor?
  A: No, the design works only with a 5 m Proximitor Sensor as noted.
• Q: What is the cable impedance?
  A: The triaxial FEP cable provides 75 Ω impedance for reliable signals.
• Q: Does the probe resist high temperatures?
  A: Yes, it operates from -52°C to +177°C without performance loss.

Download the official datasheet: 3300 XL 11 mm Proximity Transducer System Datasheet (PDF)
