330703-050-120-10-02-00 New Bently Nevada 3300 XL Probe

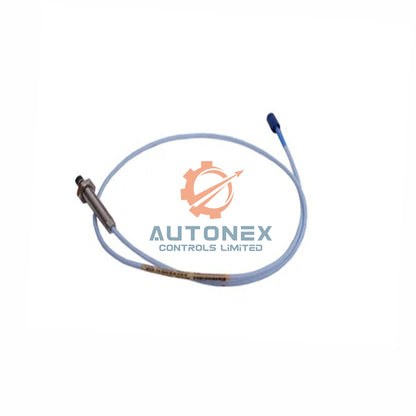

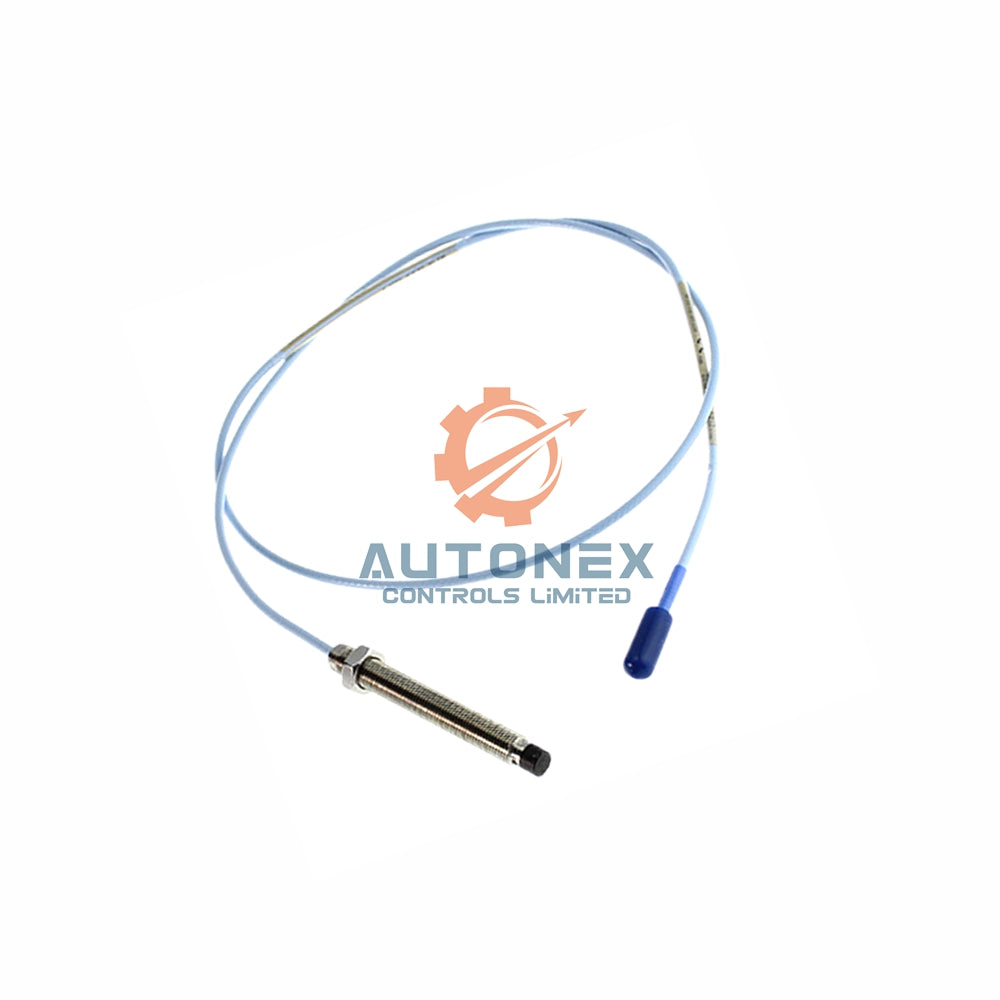

Bently Nevada 3300 XL 11 mm Proximity Probe – Full Model 330703-050-120-10-02-00

• Complete Model: 330703-050-120-10-02-00 – 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor. Manufactured by Bently Nevada.
• Unthreaded Length: 050 = 50 mm.
• Overall Case Length: 120 = 120 mm.
• Total Cable Length: 10 = 1.0 metre (3.3 feet).
• Connector & Cable Type: 02 = Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval: 00 = Not required.
• Probe DC Resistance (RPROBE): 5.9 ± 0.5 ohms for the 1.0 metre length.
• 60 Hz Magnetic Field Immunity (5 m system): Output voltage in mil pp/gauss – Gap 0.5 mm: 0.001; Gap 2.5 mm: 0.009; Gap 4.6 mm: 0.027.

Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable Specification: 75 Ω triaxial, FEP insulated cable. Available total lengths: 1, 5 or 9 meters.
• Probe Case Torque (Rated / Recommended): Maximum 63.3 N•m (560 in•lb) / Recommended 21.1 N•m (187 in•lb).
• Maximum Thread Engagement: 21 mm for M14x1.5.
• Temperature Range (Operating & Storage): -52°C to +177°C (-62°F to +351°F). Note: exposure below -34°C may affect the pressure seal.
• Temperature Classification (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).

Installation Guidelines

• Apply the recommended torque of 21.1 N•m (187 in•lb) for the M14x1.5 probe case.
• Never exceed the maximum rated torque of 63.3 N•m (560 in•lb).
• Keep thread engagement within 21 mm maximum.
• Store and operate the probe within the specified temperature limits.
• The 3300 XL series probe resists 60 Hz magnetic fields up to 300 Gauss.

Package Contents

• One 330703-050-120-10-02-00 proximity probe (1.0 metre total cable length).
• Probe with miniature coaxial ClickLoc connector and standard cable.
• Factory packing with original Bently Nevada labels and seals.
• No additional mounting hardware or accessories included.

Shipping & Return Policy

• Stock Status: New and original in factory packing. We keep this model in stock.
• Dispatch Time: Ships within 5 business days from order confirmation.
• Carriers: We use FedEx, UPS, or DHL for fast and trackable delivery.
• Returns: We accept returns within 30 days of receipt.

Frequently Asked Questions (FAQ)

• Q: What is the complete part number for this probe?
  A: The full part number is 330703-050-120-10-02-00. It is a Bently Nevada 3300 XL 11 mm probe.
• Q: Is this probe brand new and original?
  A: Yes, it is brand new, original, and in factory packing.
• Q: What cable length does this specific variant include?
  A: This configuration (option 10) has a total cable length of 1.0 metre (3.3 feet).
• Q: What are the unthreaded and overall case lengths for this model?
  A: This variant has a 50 mm unthreaded length and a 120 mm overall case length.
• Q: What is the recommended installation torque?
  A: Use 21.1 N•m (187 in•lb) for the M14x1.5 thread case.
• Q: Do you have this item in stock?
  A: Yes, we have the 330703-050-120-10-02-00 available for immediate shipment.
• Q: How long does delivery take?
  A: We dispatch within 5 days. Shipping via FedEx, UPS, or DHL takes 2-5 business days depending on your location.
