330701-00-24-50-02-05 | Bently Nevada Probe New Original Stock

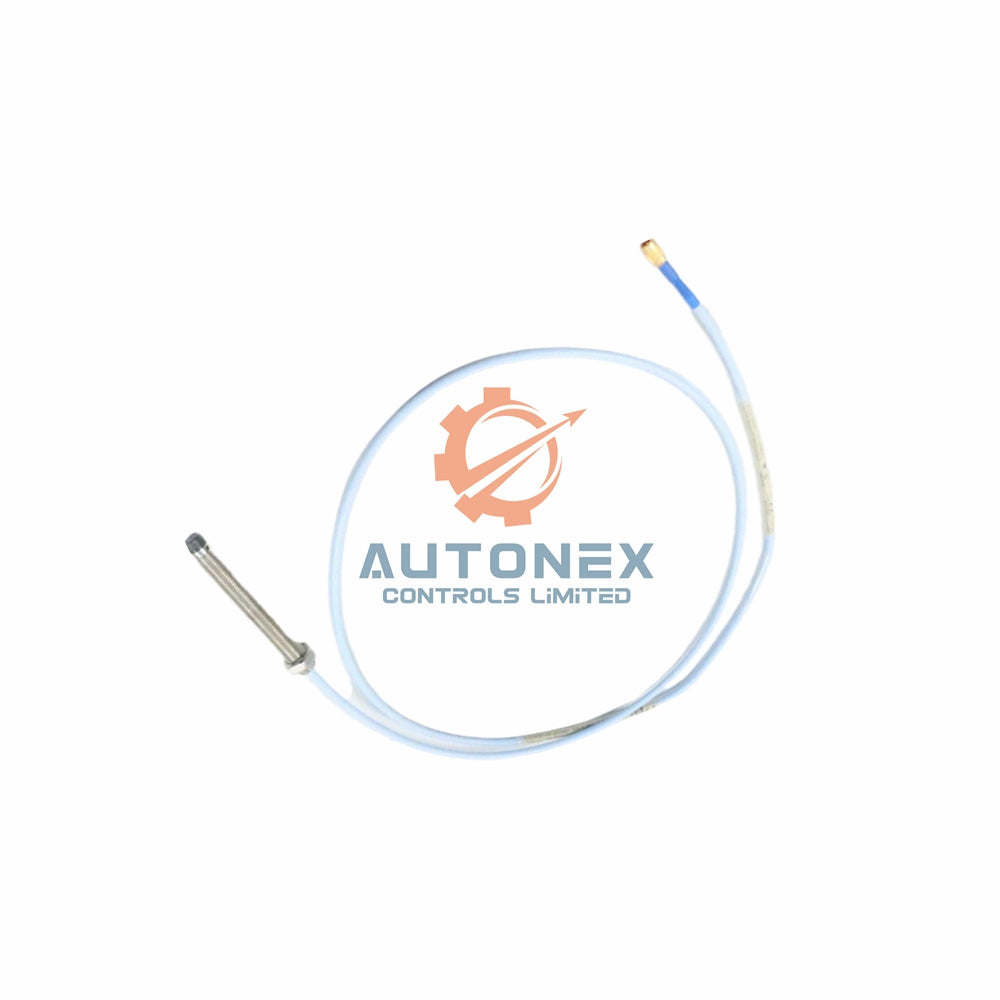

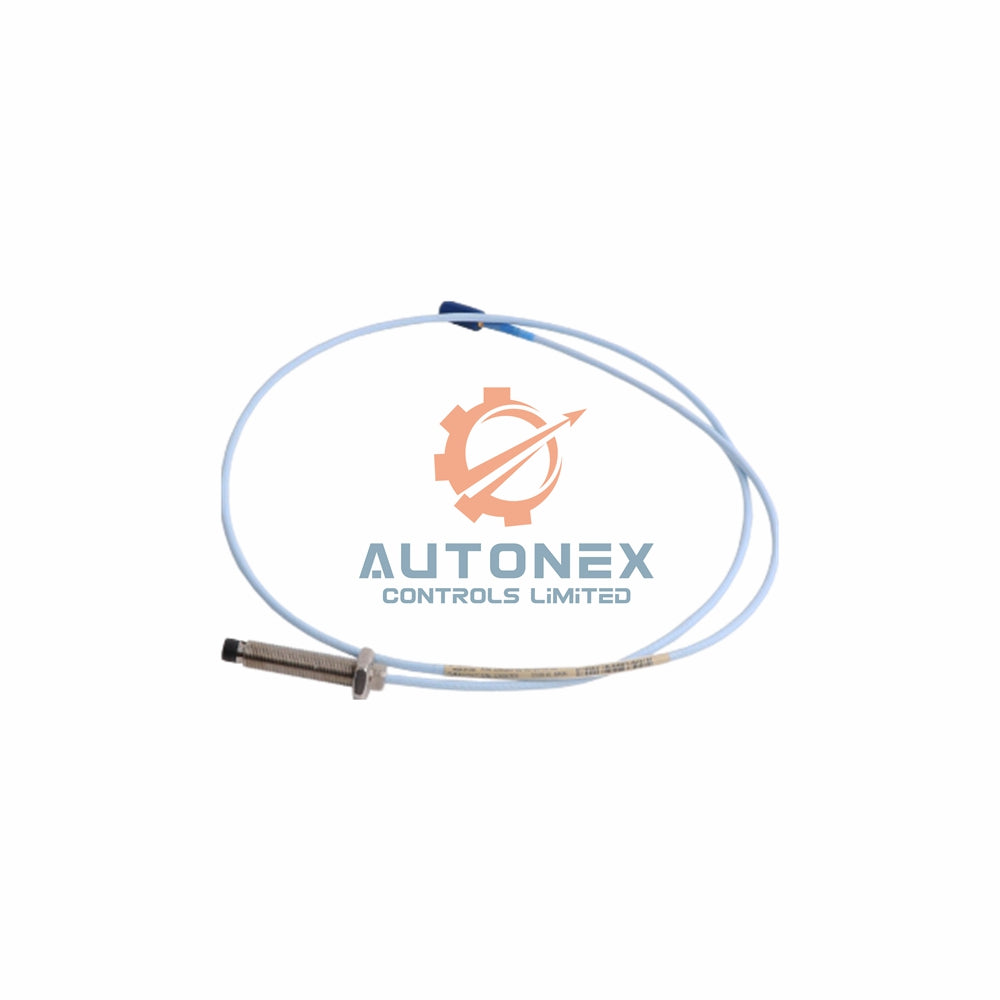

330701-00-24-50-02-05 - Bently Nevada 3300 XL 11 mm Proximity Probe

• Brand: Bently Nevada – Made in U.S.A. The 330701-00-24-50-02-05 uses proven 3300 XL 11 mm probe technology.
• Probe type: 3300 XL 11 mm Probe with 1/2-20 UNF thread and no armor. Unthreaded length option: 00 = 0 inch. Overall case length: 24 = 2.4 inches.
• Total length: 50 = 5.0 meters (16.4 feet). Important: Five meter probes work only with the five meter Proximitor Sensor.
• Connector and cable type: 02 = Miniature coaxial ClickLoc connector with standard cable. Agency approval: 05 = Multiple Approvals.
• Probe tip material: Polyphenylene sulfide (PPS). Probe case material: AISI 304 stainless steel (SST).
• Cable specification: 75 Ω triaxial, FEP insulated probe cable. Available total probe lengths: 1, 5 or 9 meters.
• Temperature range: -51°C to +177°C (-60°F to +351°F). Do not expose below -34°C to avoid pressure seal failure.
• Shipping weight: 0.17 kg. DC resistance for 5.0m length: 7.2 ± 0.8 ohms from center to outer conductor.

Technical Specifications – Core Parameters

• Brand & Model: Bently Nevada 330701-00-24-50-02-05 / 3300 XL 11 mm Proximity Probe.
• Measurement range: Non-contact proximity sensing; linear range depends on target material for 11 mm tip.
• Frequency response: DC to 10 kHz typical for 3300 XL series; ideal for vibration monitoring.
• Sensitivity: 7.87 mV/µm (200 mV/mil) for 3300 XL 11 mm probe system.
• Linearity: ±0.0254 mm (±1 mil) within specified range.
• Resolution: High resolution down to 0.25 µm with correct system calibration.
• Temperature range: -51°C to +177°C (-60°F to +351°F). Avoid prolonged use below -34°C.
• Environmental tolerance: FEP cable insulation resists chemicals and moisture. Triaxial design reduces electrical noise.
• Noise immunity: 75 Ω triaxial cable shields against RFI and EMI interference in industrial plants.
• Probe case thread: 1/2-20 UNF. Maximum thread engagement length: 0.750 inch.
• Torque (max rated): 45.2 N•m (400 in•lb) for 1/2-20 case. Recommended torque: 15.2 N•m (133 in•lb).

Frequently Asked Questions (FAQ)

• Q: Is the 330701-00-24-50-02-05 brand new and original?
  A: Yes, absolutely. We supply 100% new original Bently Nevada 3300 XL 11 mm probes. No used or counterfeit products.
• Q: What is the current stock availability?
  A: We have in stock large quantities of 330701-00-24-50-02-05. Ready to ship immediately after order confirmation.
• Q: How many days until you ship?
  A: We ship within 5 days from order placement. We use FedEx, UPS, or DHL for fast delivery.
• Q: Can I return this probe if it does not suit my system?
  A: Yes. We offer a 30-day return policy. Contact us for an RMA. The probe must be in original condition.
• Q: Why does the 5.0 meter probe require a specific Proximitor?
  A: The 5.0 meter cable length matches the five meter Proximitor Sensor only. Using other Proximitors will cause calibration errors.
• Q: What is the DC resistance for this 5.0m probe?
  A: The resistance from center conductor to outer conductor measures 7.2 ± 0.8 ohms.
• Q: Does the probe withstand high pressure?
  A: The Viton O-ring seals differential pressure. Bently Nevada does not pressure test before shipment. Contact our technical team for custom pressure seal tests.
• Q: What is the minimum bend radius for the cable?
  A: You can bend the cable to 25.4 mm (1.0 inch) minimum radius with or without SST armor. Avoid tighter bends.
• Q: Does the package include a calibration certificate?
  A: No, the package does not include certificates or a 12-month warranty document. We guarantee authenticity and performance.

Contact Information & Partner

• For inquiries, please email sales@nex-auto.com or call +86 153 9242 9628 (WhatsApp).
• Partner: NexAuto Technology Limited – https://www.nex-auto.com/

Need the 3300 XL 11 mm Proximity Probe 330701-00-24-50-02-05? Our team ships globally with stock ready. Contact us for bulk discounts or technical support.
