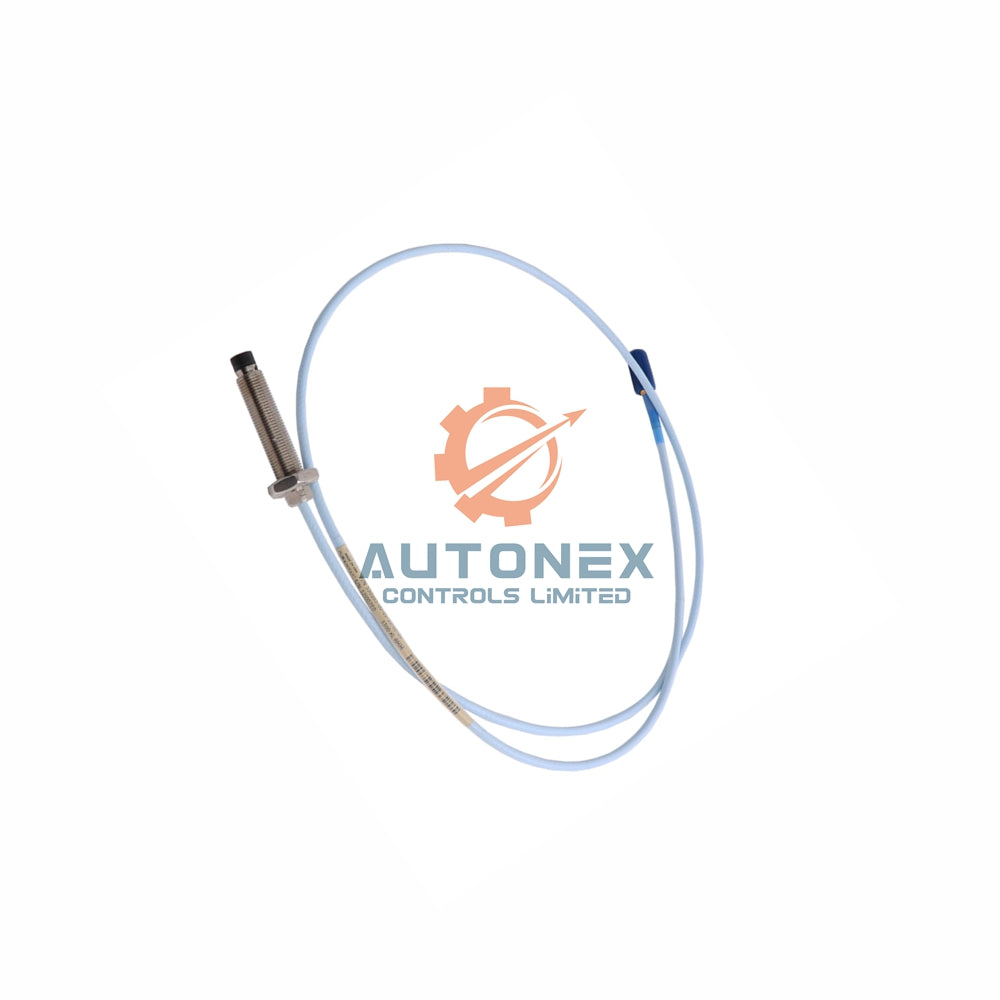

330701-00-24-10-01-00 | New Bently Nevada 11 mm Proximity Probe

330701-00-24-10-01-00 : Bently Nevada 3300 XL 11 mm Proximity Probe

• Manufacturer: Bently Nevada – a leader in condition monitoring systems.
• Model: 330701-00-24-10-01-00 – 3300 XL series, 11 mm probe diameter.
• Made in U.S.A. with premium materials and strict quality control.
• Probe type: 3300 XL 11 mm, 1/2-20 UNF thread, without armor.
• Unthreaded Length Option: 00 = 0 inches – simplifies mounting depth.
• Overall Case Length Option: 24 = 2.4 inches – compact and robust case.
• Total Length Option: 10 = 1.0 meter (3.3 feet) – ready to connect directly.
• Connector and Cable-Type Option: 01 = Miniature coaxial ClickLoc connector with connector protector and standard cable.
• Agency Approval Option: 00 = Not required – for standard industrial use.

Technical Specifications of 330701-00-24-10-01-00

• Probe Tip Material: Polyphenylene sulfide (PPS) – excellent thermal and chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST) – durable and corrosion-proof.
• Probe Cable: 75 Ω triaxial with FEP insulation, available in 1, 5, or 9 meters.
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Storage Temperature: same as operating: -51°C to +177°C.
• DC Resistance (RPROBE): For 1.0m length: 5.9 ± 0.5 ohms from center conductor to outer conductor.
• Probe Case Thread: 1/2-20 UNF, maximum thread engagement 0.750 inch.
• Maximum Torque for 1/2-20 case: 45.2 N•m (400 in•lb).
• Recommended Torque: 15.2 N•m (133 in•lb) – prevents overtightening damage.
• Connector Torque: Finger tight (recommended), maximum 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without SST armor.
• Alternative Metric Thread: M16x1.5, max engagement 24 mm.
• Pressure Seal: Viton O-ring seals differential pressure between tip and case.
• Temperature Warning: Exposing probe below -34°C (30°F) may cause premature pressure seal failure.

Frequently Asked Questions (FAQ)

• Q: Is 330701-00-24-10-01-00 a genuine Bently Nevada probe?
  A: Yes, it is a brand new original Bently Nevada 3300 XL 11 mm probe, made in U.S.A.
• Q: Do you have this probe in stock?
  A: Yes, we have 330701-00-24-10-01-00 in stock and ready to ship.
• Q: What is the lead time for shipping?
  A: We ship within 5 days via FedEx, UPS, or DHL. Express delivery usually takes 2-5 business days.
• Q: Can I use this probe below -34°C?
  A: Avoid long exposure below -34°C (30°F). The seal may fail prematurely. Operating range starts at -51°C, but stay above -34°C for seal longevity.
• Q: What is the DC resistance value for the 1.0m cable?
  A: For the 1.0m total length, RPROBE equals 5.9 ± 0.5 ohms from center to outer conductor.
• Q: Does Bently Nevada pressure test each probe before shipping?
  A: No, they do not pressure test probes. Contact their custom design department if you need a pressure seal test for your application.
• Q: What type of connector does this probe use?
  A: It has a miniature coaxial ClickLoc connector with a connector protector and standard cable.
• Q: Can I return this probe if it does not fit my application?
  A: Yes, we offer a 30-day return policy for unused items in original condition.
