330700-00-24-10-02-05 11 mm Probe Bently Nevada 3300 XL

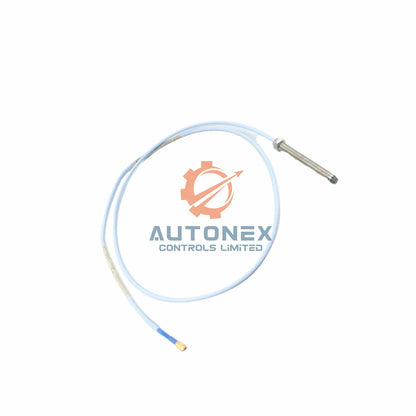

330700-00-24-10-02-05 - Bently Nevada 3300 XL 11 mm Proximity Prob

• Manufacturer: Bently Nevada (Made in U.S.A). The 330700-00-24-10-02-05 uses 3300 XL 11 mm probe technology.
• Probe type: 3300 XL 11 mm Probe with 1/2-20 UNF thread and no armor. Unthreaded length option: 00 = 0 inch. Overall case length: 24 = 2.4 inches.
• Total length: 10 = 1.0 meter (3.3 feet). Connector and cable type: 02 = Miniature coaxial ClickLoc connector with standard cable.
• Agency approval: 05 = Multiple Approvals. Probe tip material: Polyphenylene sulfide (PPS). Probe case: AISI 304 stainless steel (SST).
• Cable specification: 75 Ω triaxial, FEP insulated cable. Total probe lengths available: 1, 5 or 9 meters.
• Operating and storage temperature: -51°C to +177°C (-60°F to +351°F). Pressure capability: Probe seals differential pressure with Viton O-ring.
• Shipping weight: 0.17 kg. Probe DC resistance (1.0m length): 5.9 ± 0.5 ohms from center conductor to outer conductor.

Technical Specifications – Core Parameters

• Brand & Model: Bently Nevada 330700-00-24-10-02-05 / 3300 XL 11 mm Proximity Probe.
• Measurement range: Non-contact proximity sensing; linear range depends on target material (standard 11 mm tip).
• Frequency response: DC to 10 kHz typical for 3300 XL series; suitable for vibration monitoring.
• Sensitivity: 7.87 mV/µm (200 mV/mil) for 3300 XL 11 mm probe system (with appropriate extension cable and driver).
• Linearity: ±0.0254 mm (±1 mil) within specified range for 11 mm probe.
• Resolution: High resolution down to 0.25 µm with proper system calibration.
• Temperature range: -51°C to +177°C (-60°F to +351°F). Avoid prolonged use below -34°C to protect pressure seal.
• Environmental tolerance: Probe cable has FEP insulation, tough against chemicals and moisture. 75 Ω triaxial design reduces electrical noise.
• Noise immunity: Triaxial cable shields against RFI and EMI interference in industrial plants.
• Probe case thread: 1/2-20 UNF. Maximum thread engagement length: 0.750 inch.
• Torque (max rated): 45.2 N•m (400 in•lb) for 1/2-20 case. Recommended torque: 15.2 N•m (133 in•lb).
• Connector torque: Finger tight recommended; maximum torque 0.565 N•m (5 in•lb).
• Minimum bend radius: 25.4 mm (1.0 inch) with or without SST armor.

Frequently Asked Questions (FAQ)

• Q: Is the 330700-00-24-10-02-05 probe new and original?
  A: Yes, absolutely. We provide 100% new original Bently Nevada 3300 XL 11 mm probes. No counterfeits or used units.
• Q: What is the inventory status for this model?
  A: We have in stock large quantities of 330700-00-24-10-02-05. Ready to ship immediately after order.
• Q: How many days for delivery?
  A: We dispatch within 5 days from order confirmation. Express shipping via DHL/FedEx/UPS takes usually 2-5 business days.
• Q: Can I return this probe if it doesn't fit my system?
  A: Yes. We support 30 days return policy. Contact us to request RMA. Original condition required.
• Q: Does the probe work with existing 3300 XL extension cables?
  A: The 330700-00-24-10-02-05 uses standard 75 Ω triaxial cable and ClickLoc connector. It mates with Bently Nevada 3300 XL extension cables.
• Q: What is the maximum pressure rating for the probe tip?
  A: Bently Nevada designs the probe to seal differential pressure using Viton O-ring. Contact our technical team for custom pressure test requests.
• Q: What is the cable overall length?
  A: Total probe length option 10 equals 1.0 meter (3.3 feet). Other lengths (5m or 9m) available upon pre-order.
• Q: Does the probe come with certificate or 12-month warranty?
  A: Package does not include certificate or warranty statement. However, we guarantee product authenticity and performance.
