330500-06-04 Bently Nevada Velomitor Sensor Piezo-velocity

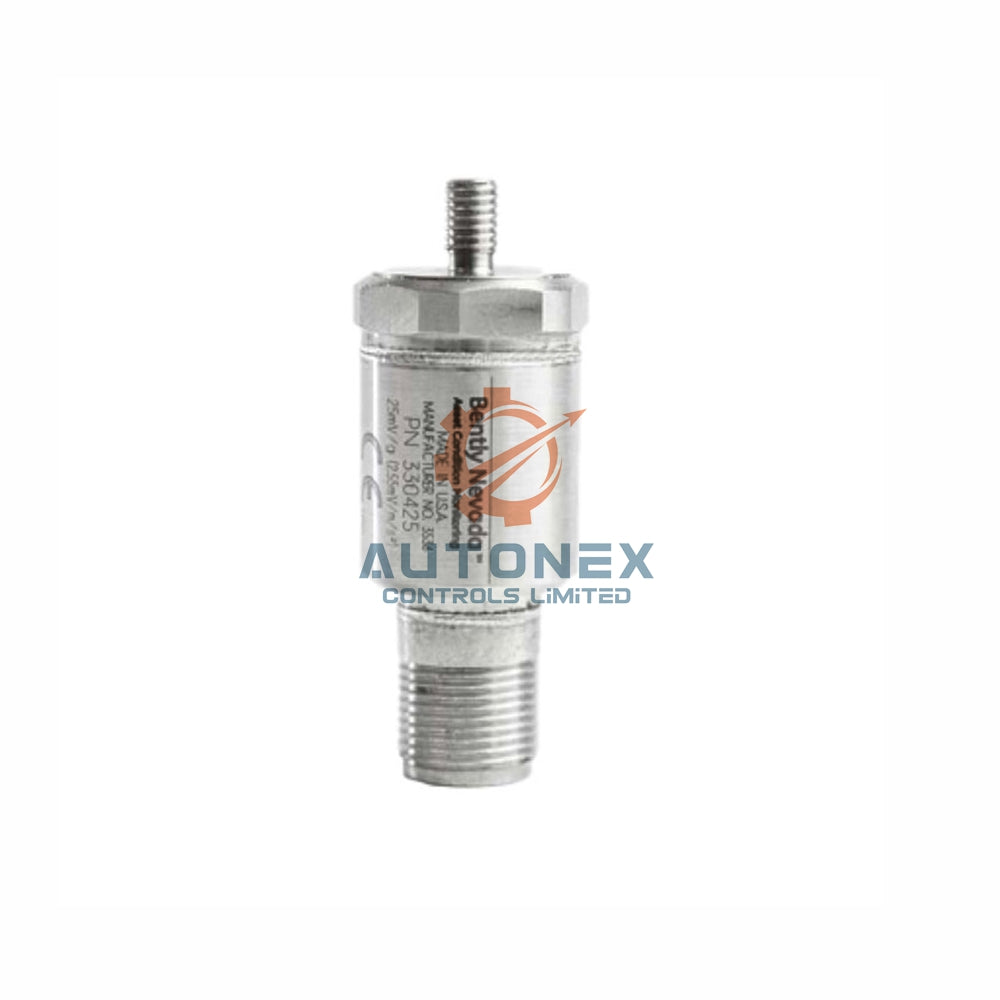

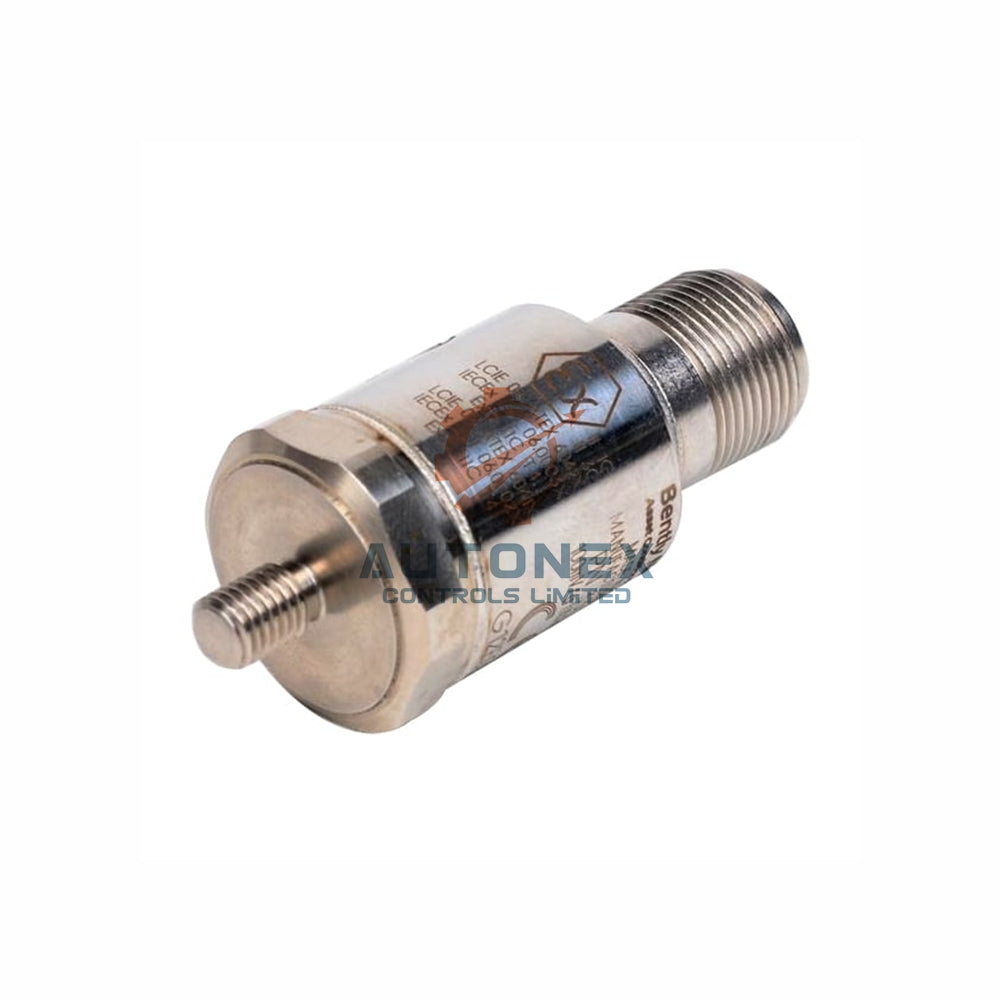

Bently Nevada 330500-06-04 Velomitor Piezo-velocity Sensor

• The 330500 series provides a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%. This ensures accurate vibration tracking across most machine speeds.
• Frequency response spans 4.5 Hz to 5 kHz (270 to 300 kcpm) within ±3.0 dB. A tighter range of 6.0 Hz to 2.5 kHz offers ±0.9 dB for critical applications.
• Velocity range reaches 1270 mm/s (50 in/s) peak. Amplitude linearity stays within ±2% up to 152 mm/s (6 in/s) peak for precise readings.
• Output bias voltage is -12 ±3.0 VDC referenced to Pin A. Dynamic output impedance measures less than 2400 Ω to drive long cables.
• Broadband noise floor sits at 0.004 mm/s (160 μin/s) rms nominal from 4.5 Hz to 5 kHz. This low noise floor allows clear signal detection.

Environmental and Physical Specifications

• Operating temperature range covers -55°C to 121°C (-67°F to 250°F). Relative humidity tolerance reaches 100% non-submerged due to hermetic sealing.

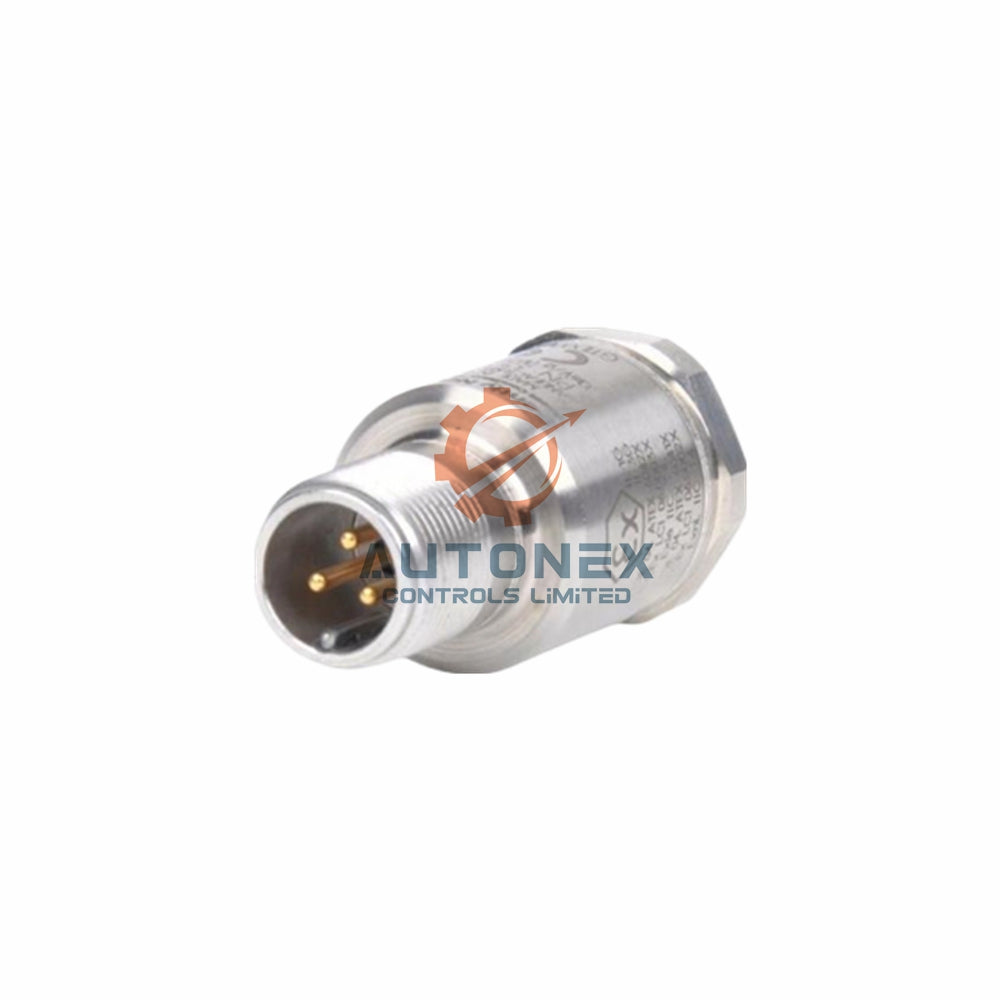

• Case material uses 316L stainless steel. The connector is a 2-pin Mil-C-5015 type with a 316L stainless steel shell.
• Weight typically equals 142 grams (5.0 oz). Diameter is 25.3 mm (0.995 in) and height is 63.2 mm (2.49 in).
• Mounting torque range is 32-46 kg cm (24-40 in-lb) max. Polarity: when the case moves toward the connector, Pin A becomes positive relative to Pin B.
• Case is isolated from ground to prevent ground loops. Maximum cable length reaches 305 meters (1,000 feet) with part number 02173006 cable.
• Transverse sensitivity stays below 5% of main sensitivity. Magnetic field susceptibility is less than 51 min/s/gauss at 50–60 Hz.

Frequently Asked Questions (FAQ)

• Is the 330500-06-04 sensor new and original?
  Yes, we only supply new and original Bently Nevada units with full traceability.
• What is the actual velocity range for this sensor?
  The velocity range equals 1270 mm/s (50 in/s) peak. Amplitude linearity holds ±2% up to 152 mm/s (6 in/s) peak.
• Can this sensor work in a Class I Division 1 area?
  Yes, the -04 approval includes Ex ia IIC T4 and AEx ia IIC T4 for Class I, Division 1, Groups A, B, C, D.
• What cable length can I use without signal loss?
  You can use up to 305 meters (1000 feet) of cable part 02173006 with no signal degradation.
• How long does shipping take?
  We dispatch within 5 days. Delivery then takes 2-5 business days depending on your choice of FedEx, UPS, or DHL.
• What is the resonant frequency when mounted?
  Mounted resonant frequency exceeds 12 kHz, well above the 5 kHz measurement range.
• Do you accept returns?
  Yes, we offer 30-day returns for unused items in original packaging.
