330193-00-02-10-05 Bently Nevada 8 mm Probe

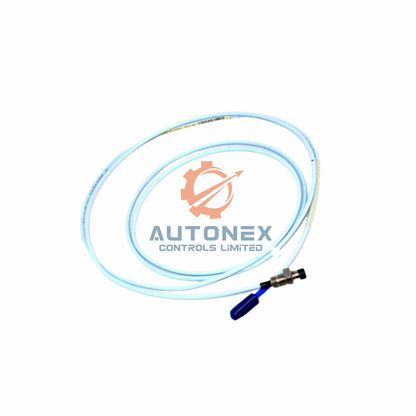

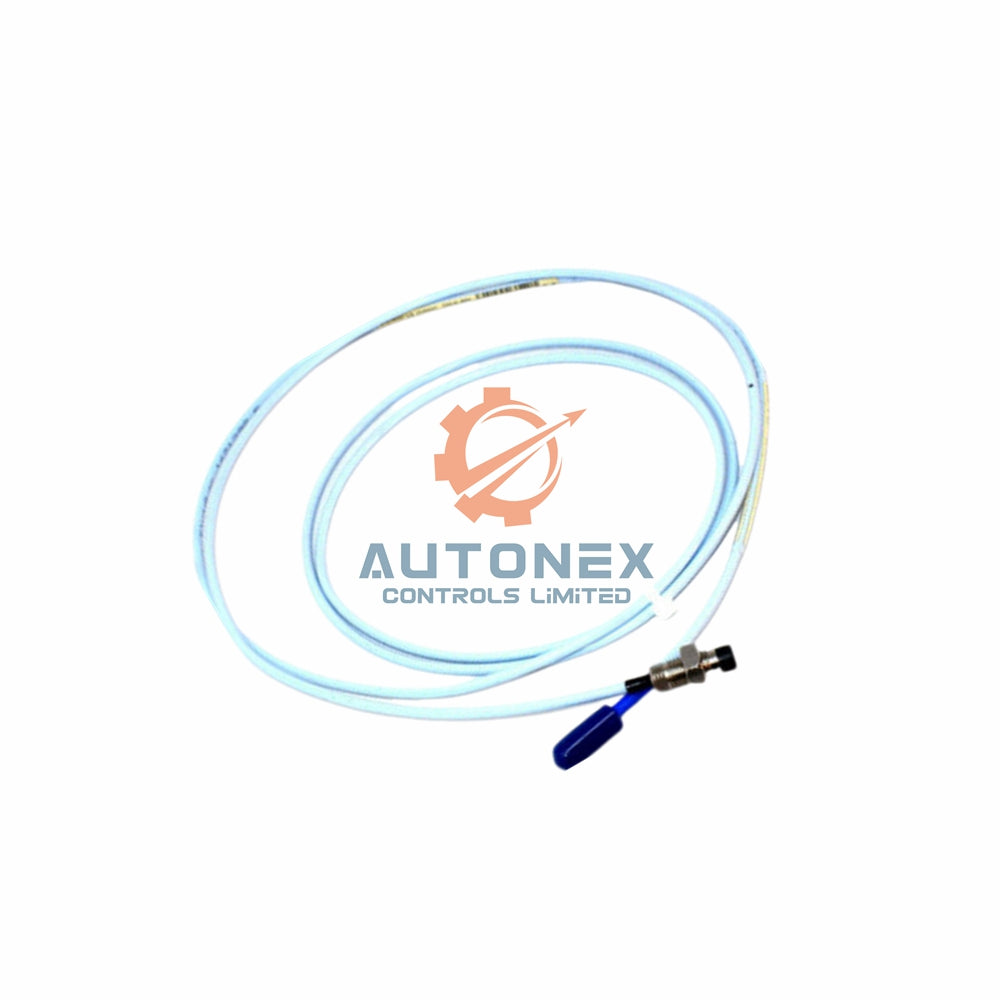

Bently Nevada 330193-00-02-10-05 – 3300 XL 8 mm Probe, M10 x 1 Thread

• Brand & Model: Bently Nevada, 330193-00-02-10-05 – 3300 XL 8 mm Probe.
• Thread & Case: M10 x 1 thread, AISI 303/304 stainless steel case, maximum thread engagement 15 mm.
• Unthreaded Length: Minimum 0.0 in. (standard), unthreaded length must be at least 0.8 in. shorter than case length.
• Overall Case Length: Option 02 = 0.2 inches (5.1 mm).
• Total Length: 1.0 meter (3.3 feet) – Option 10.
• Agency Approvals: Option 05 – CSA, ATEX, IECEx (ia, nA, ec) for hazardous areas (Zone 0, 1, 2; Class I, II, III).

Key Technical Specifications

• Probe DC Resistance (1.0 m): 7.59 ± 0.50 Ω (center to outer conductor).
• Probe Tip Material: Polyphenylene sulfide (PPS) – durable and chemically resistant.
• Operating Temperature (Standard): -52 °C to +177 °C (-62 °F to +350 °F).
• Extended Temperature Tip: -52 °C to +218 °C (-62 °F to +425 °F); cable/connector up to +260 °C.
• Humidity Performance: Less than 3% change in Average Scale Factor (ASF) after 56 days at 93% RH (IEC 68-2-3).
• Pressure Seal: Viton® O-ring seals differential pressure between tip and case (not pressure tested as standard).
• Hazardous Area Temperature Schedule (Probe only): T1 (-55 to +232 °C), T2 (-55 to +177 °C), T3 (-55 to +120 °C), T4 (-55 to +80 °C), T5 (-55 to +40 °C).

Installation & Handling Guidelines

• Use the M10 x 1 thread for mounting; do not exceed 15 mm thread engagement.
• Ensure the unthreaded length is at least 0.8 in. less than the case length for proper fit.
• Avoid exposing the probe below -34 °C (-30 °F) to prevent premature pressure seal failure.
• For hazardous areas, install with intrinsic safety barriers (drawing 141092) or galvanic isolators (ia) or nonincendive circuits (drawing 140979) for nA/ec.
• Contact our custom design department if you require factory pressure seal testing.

Package Contents

• 1 x Bently Nevada 330193-00-02-10-05 3300 XL 8 mm Probe (without armor).
• Integrated connector and cable (1.0 meter length).
• No additional mounting accessories or certificates included.

Shipping & Logistics

• We stock this item – ready for immediate dispatch.
• Shipping carriers: FedEx, UPS, DHL (choose your preferred option).
• Delivery within 5 business days after order confirmation.
• 30-day return policy – hassle-free, subject to terms.

Frequently Asked Questions (FAQ)

• Q: Is the 330193-00-02-10-05 a new genuine Bently Nevada part?
  A: Yes, we supply 100% new, original Bently Nevada products.
• Q: What is the exact thread size of this probe?
  A: It has a M10 x 1 thread (metric) with a maximum engagement of 15 mm.
• Q: Can I use this probe in a Zone 0 hazardous area?
  A: Yes, with proper intrinsically safe barriers (ia rating) it meets AEx/Ex ia IIC T5…T1 Ga.
• Q: What is the total cable length?
  A: The total length option is 1.0 meter (3.3 feet) – Option 10.
• Q: Do you test the pressure seal before shipping?
  A: We do not pressure test as standard; contact our team if your application requires it.
• Q: How soon can you ship?
  A: We ship within 5 business days via FedEx, UPS, or DHL.
• Q: Is this probe armored?
  A: No, this version is without armor (suffix -05-10).
• Q: What is the storage temperature range?
  A: Standard probe storage: -52 °C to +177 °C; extended cable range to +260 °C.
