330193-00-02-10-00 3300 XL 8 mm Probe Bently Nevada In Stock

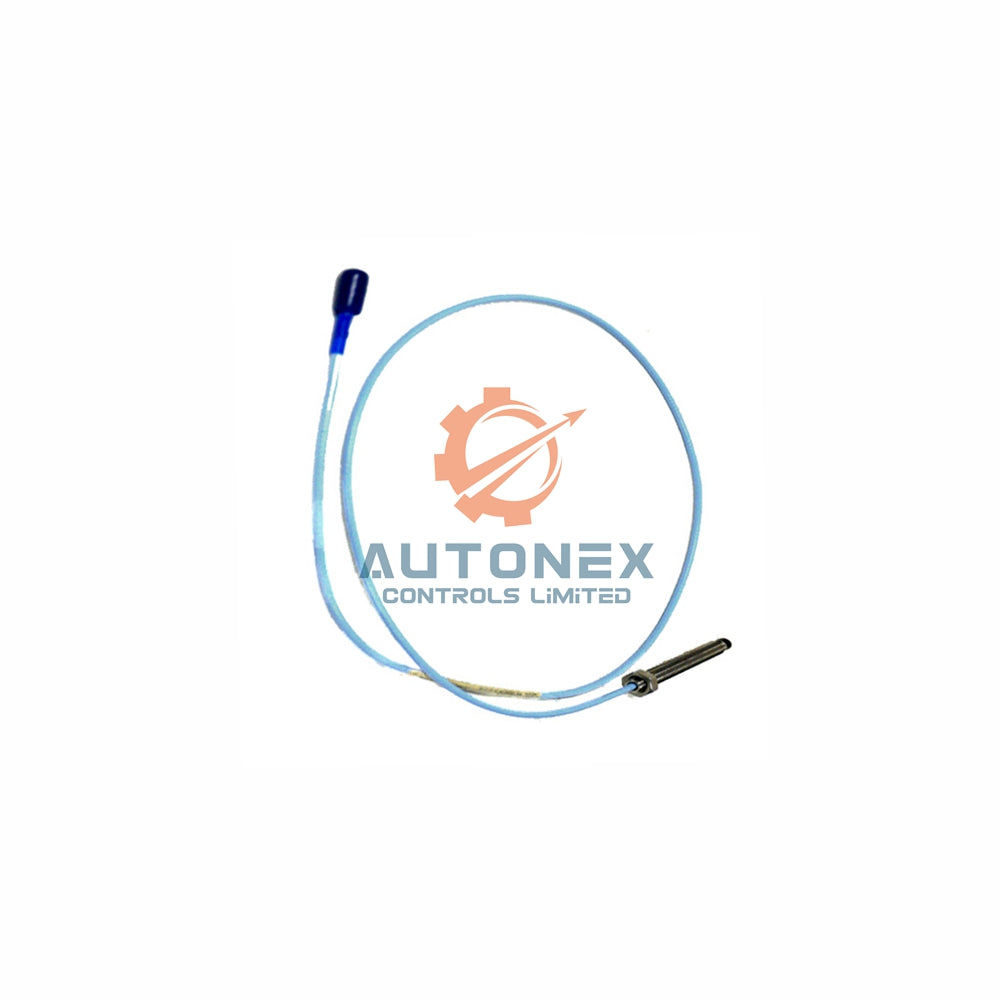

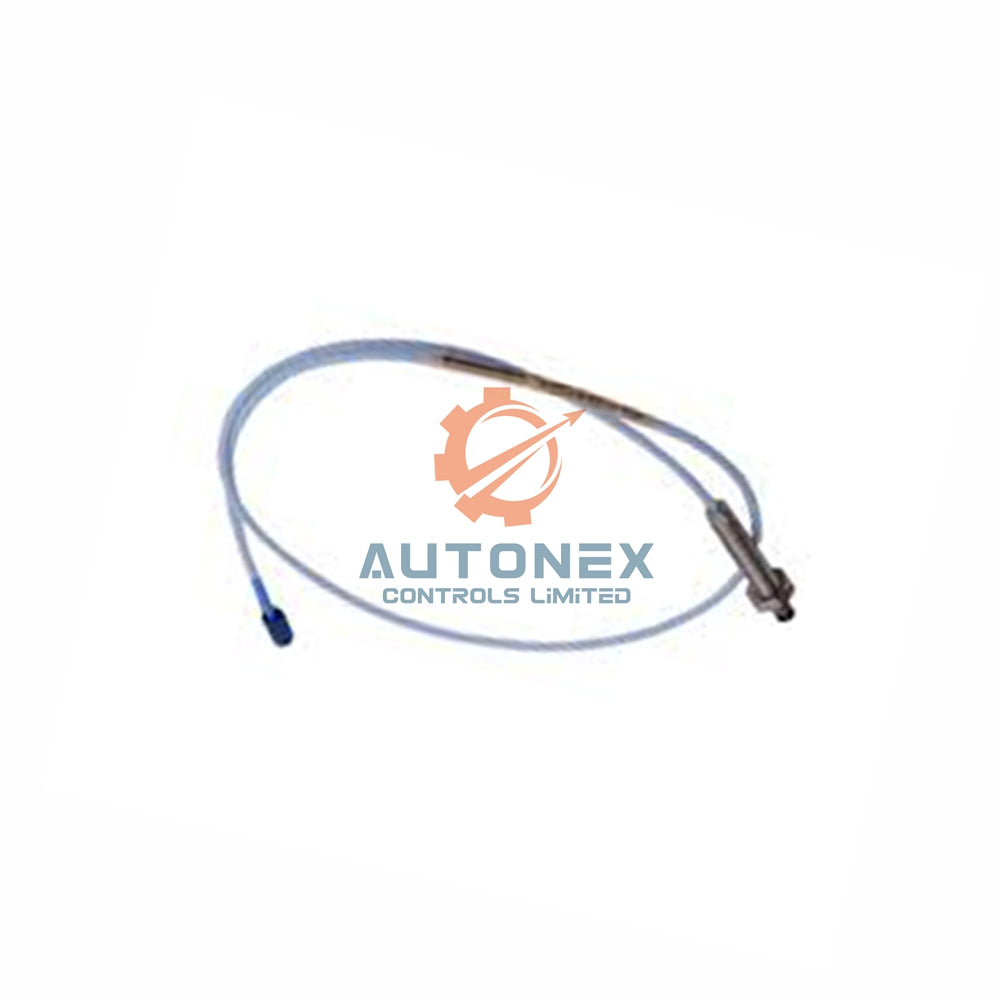

330193-00-02-10-00 3300 XL 8 mm Probe by Bently Nevada

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model Number: 330193-00-02-10-00 – 3300 XL 8 mm Probe.
• Thread Specification: M10 x 1, maximum thread engagement 15 mm.
• Case Length Option: 02 = 0.2 inch overall case length.
• Total Length: 10 = 1.0 meter (3.3 feet) standard cable.
• Unthreaded Length: Minimum 0.0 inch; must be 0.8 inch less than case length.
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Case Material: AISI 303 or 304 stainless steel (SST).
• DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0 meter length (center to outer conductor).
• Pressure Seal: Viton® O-ring design; probes seal differential pressure between tip and case.
• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Tip: -52°C to +218°C (-62°F to +425°F); cable/connector up to +260°C.
• Humidity Tolerance: Less than 3% change in Average Scale Factor (ASF) at 93% RH (IEC 68-2-3, 56 days).
• Hazardous Area Approvals: ia (Ex ia IIC T5…T1 Ga) with zener barriers; nA/ec (Class I, Zone 2, Div 2) with nonincendive circuit.
• Temperature Schedule (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• Agency Approval: 00 = Not required for this configuration.

Frequently Asked Questions (FAQ)

• Q: Is the 330193-00-02-10-00 probe intrinsically safe?
  A: Yes, when installed with zener barriers per drawing 141092 or with galvanic isolators, it meets Class I, Zone 0 (Ex ia IIC T5…T1 Ga).
• Q: What is the maximum operating temperature for this 3300 XL probe?
  A: Standard range is -52°C to +177°C; the tip can go up to +218°C in extended temperature configuration.
• Q: Does the probe come with a cable?
  A: Yes, the total length option 10 provides a 1.0 meter (3.3 feet) integral cable.
• Q: Can I use this probe in high humidity environments?
  A: Yes, it shows less than 3% ASF change after 56 days at 93% relative humidity per IEC 68-2-3.
• Q: What is the thread size and engagement?
  A: M10 x 1 thread with a maximum engagement length of 15 mm.
• Q: How soon will you ship?
  A: We ship within 5 business days; stock is available for immediate order.
• Q: Which couriers do you use?
  A: We use FedEx, UPS, or DHL depending on your region.
