330192-00-28-05-00 Bently Nevada 3300 XL 8 mm ETR Probe

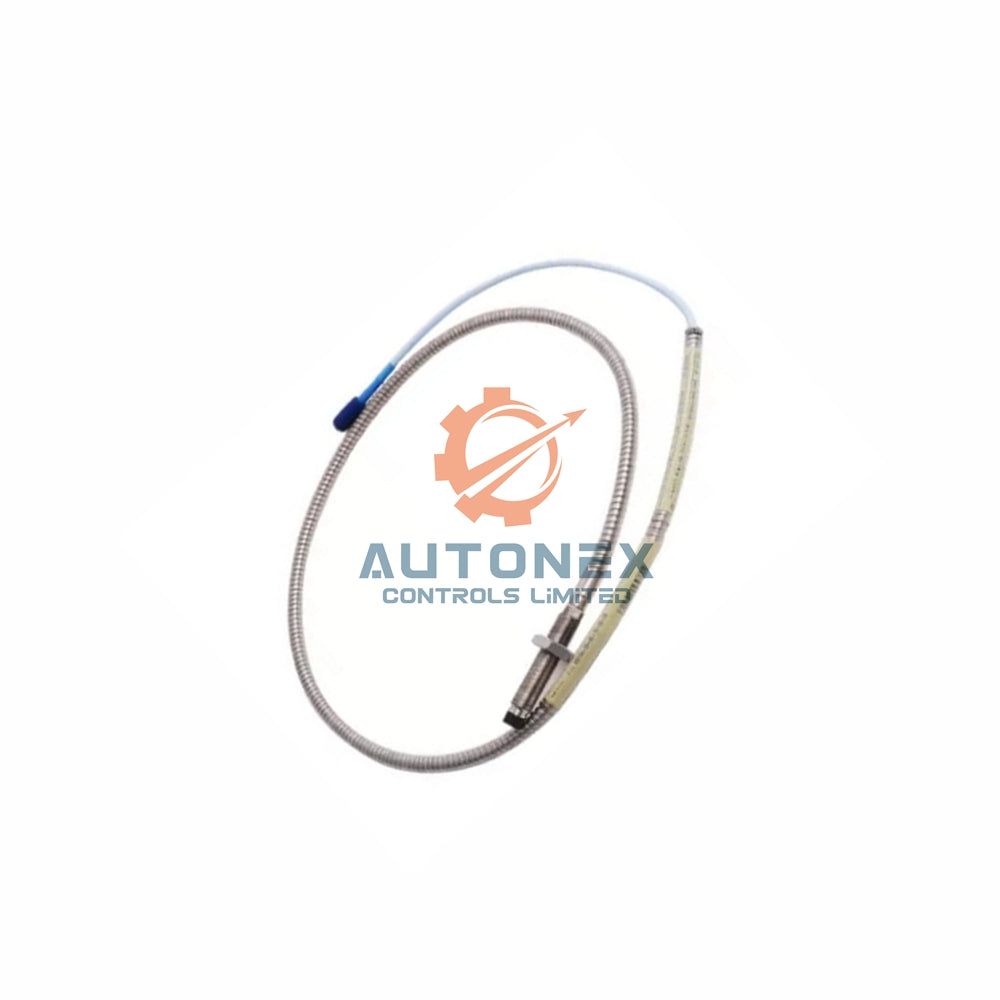

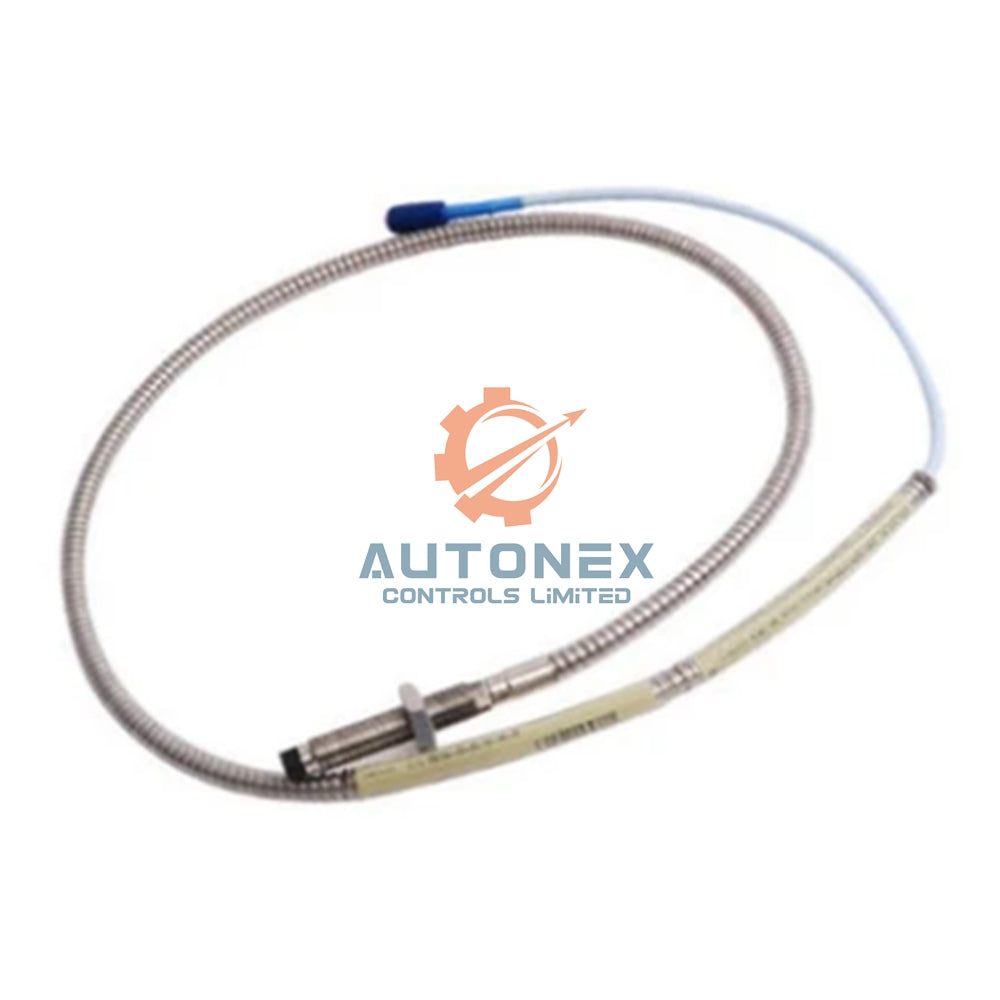

Bently Nevada 330192-00-28-05-00: 3300 XL 8 mm ETR Probe Overview

Key Technical Specifications

• Brand & Model: Bently Nevada 330192-00-28-05-00 (3300 XL 8 mm ETR Probe)
• Thread Type: 3/8-24 UNF with armor, max thread engagement 0.563 inches
• Overall Case Length: 2.8 inches (option 28)
• Total Length: 0.5 meter (1.6 feet) (option 05)
• Unthreaded Length: 0 inches (must be 0.8 inches less than case length)
• Nominal DC Resistance (RPROBE): 7.45 ± 0.50 Ω at 0.5m length
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Operating & Storage Temperature (Standard): -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Tip Range: -52°C to +218°C (-62°F to +425°F)
• Extended Cable & Connector Range: -51°C to +260°C (-60°F to +500°F)
• Pressure Seal Material: Viton® O-ring (differential pressure seal between tip and case)

Frequently Asked Questions (FAQ)

• Q: Is the 330192-00-28-05-00 probe new and original?
  A: Yes, we supply only brand new, original Bently Nevada products.
• Q: Do you have this 3300 XL 8 mm ETR Probe in stock?
  A: Yes, we keep the 330192-00-28-05-00 in stock for immediate orders.
• Q: What is the maximum temperature for the probe tip?
  A: The standard tip works from -52°C to +177°C. The extended range tip reaches +218°C.
• Q: Can I use this probe in high humidity conditions?
  A: Yes, it passes the IEC 68-2-3 test with less than 3% ASF change at 93% humidity for 56 days.
• Q: How long does shipping take?
  A: We ship within 5 days via FedEx, UPS, or DHL. Delivery time depends on your location.
• Q: What is your return policy?
  A: We support returns within 30 days from delivery.
• Q: Does the probe require a pressure test before use?
  A: Bently Nevada does not pressure test each probe. Contact our custom design department if you need a test.
