330192-00-20-20-CN Bently Nevada 3300 XL 8mm Probe CN Spec

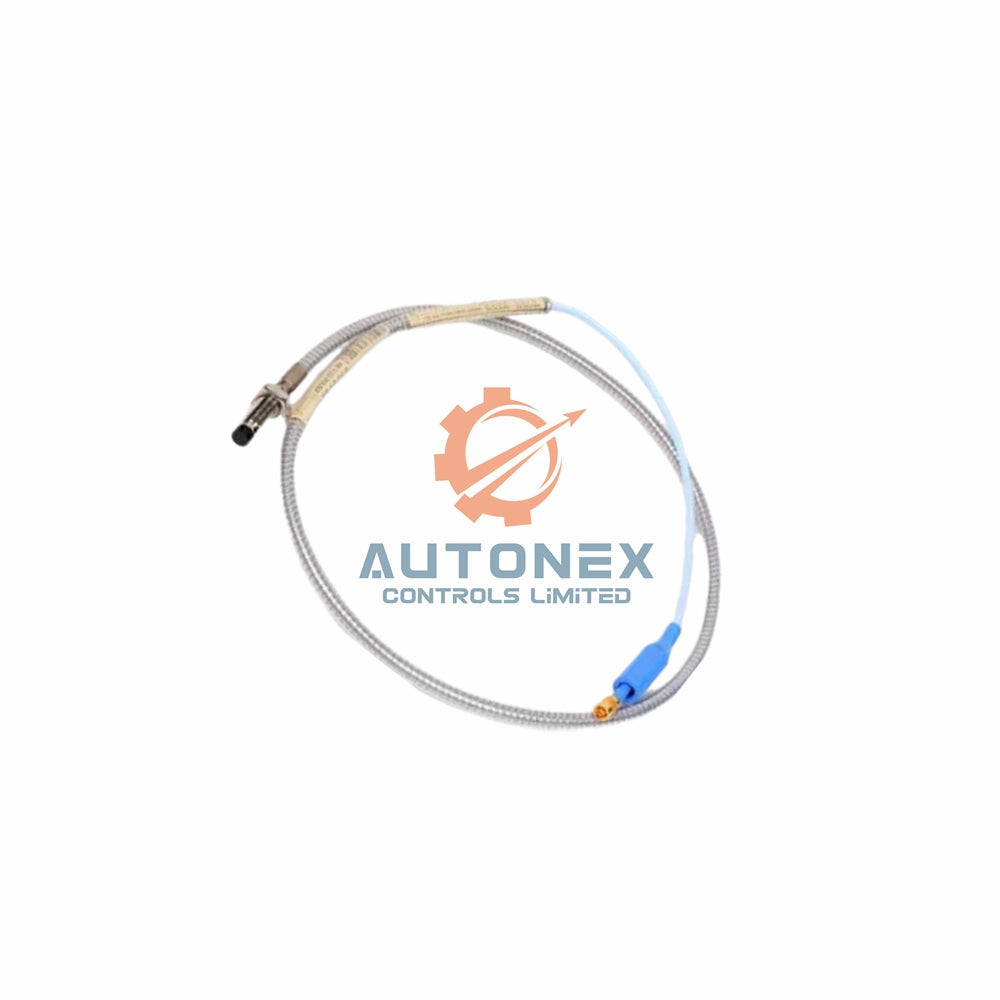

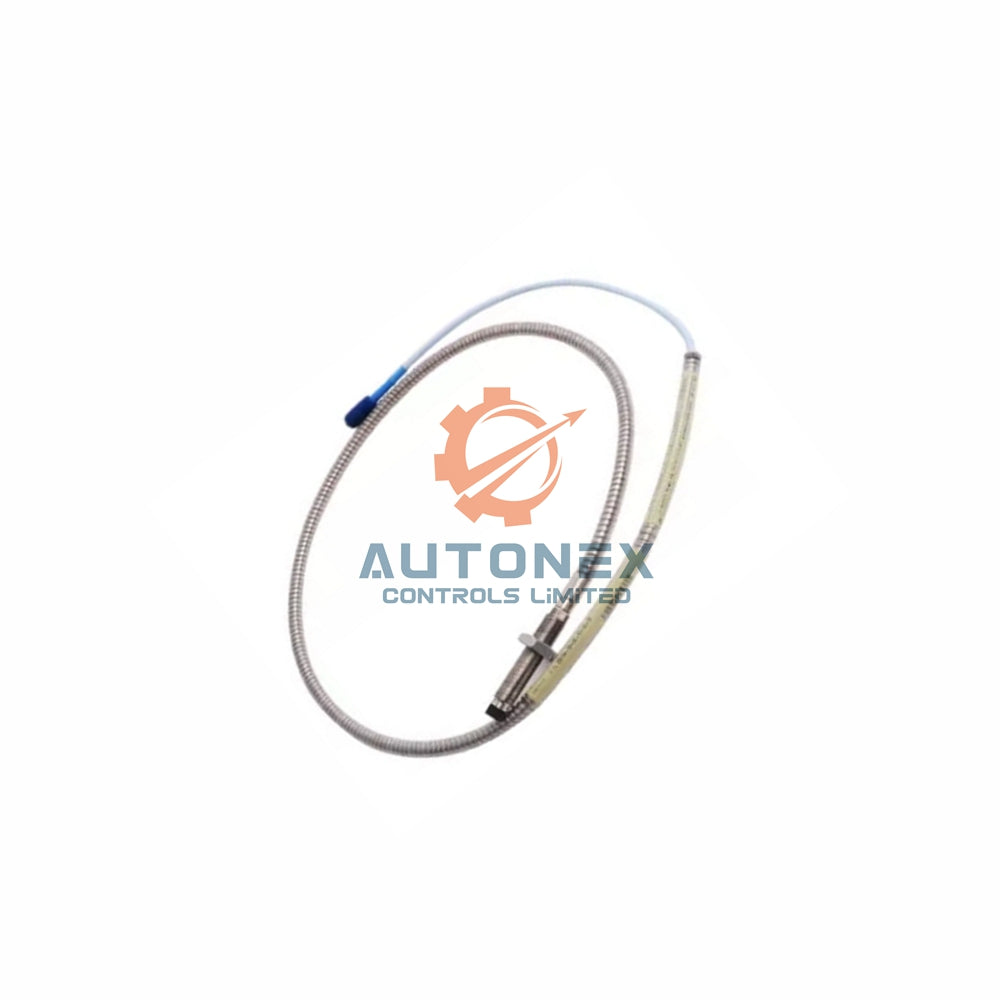

Bently Nevada 330192-00-20-20-CN 3300 XL 8 mm ETR Probe

• Manufacturer & Brand: Bently Nevada.
• Product Number: 330192-00-20-20-CN.
• Probe Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread with armor.
• Unthreaded Length: Minimum 0.0 in (must be at least 0.8 in less than case length).
• Overall Case Length: 2.0 inches (Option 20).
• Total Length: 2.0 meters (6.6 feet, Option 20).
• Agency Approval: CN = Country Specific.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel.
• Maximum Thread Engagement: 0.563 in for 3/8-24 thread.
• Nominal DC Resistance (RPROBE): 7.88 ± 0.50 Ω (center to outer conductor).

Environmental & Temperature Specifications

• Operating & Storage Temperature (Standard): -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Extended Cable/Connector Range: -51°C to +260°C (-60°F to +500°F).
• Humidity Performance: Less than 3% change in ASF after 56 days at 93% RH (IEC 68-2-3).
• Pressure Seal: Viton® O-ring seals differential pressure between tip and case.
• Caution: Temperatures below –34˚C (-30˚F) may damage the pressure seal prematurely.

Hazardous Area Approvals (Country Specific)

• ia (Intrinsic Safety): Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga; Class I, Groups A,B,C,D; Class II, Groups E,F,G; Class III.
• nA, ec (Nonincendive): Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc; Class I, Division 2, Groups A,B,C,D; Class I, Zone 2: AEx/Ex ec llC T5…T1 Gc.
• Temperature Class T1: Ambient -55°C to +232°C (EPL Ga/Gc).
• Temperature Class T2: Ambient -55°C to +177°C.
• Temperature Class T3: Ambient -55°C to +120°C.
• Temperature Class T4: Ambient -55°C to +80°C.
• Temperature Class T5: Ambient -55°C to +40°C.
• EPL Dc Ratings: T280°C @ -55°C to +232°C; T225°C @ -55°C to +177°C; T170°C @ -55°C to +120°C; T130°C @ -55°C to +80°C; T105°C @ -55°C to +100°C; T90°C @ -55°C to +40°C.

Frequently Asked Questions (FAQ)

• Is this probe brand new? Yes, we supply 330192-00-20-20-CN as completely new, genuine Bently Nevada units.
• What is the exact nominal resistance for 2.0m length? The nominal DC resistance (RPROBE) is 7.88 ± 0.50 Ω.
• Can I use this probe in high humidity? Yes, it shows less than 3% ASF shift after 56 days at 93% RH.
• What is the maximum temperature for the cable? The cable and connector withstand up to +260°C (+500°F).
• Do you stock this item? Yes, we keep 330192-00-20-20-CN in stock for immediate orders.
• How long does delivery take? We ship within 5 days via FedEx, UPS, or DHL.
• What if I need a pressure test? Contact our custom design department for pressure seal testing.
• What hazardous area approvals does this probe carry? It offers Country Specific certifications with ia and nA/ec protection types.
