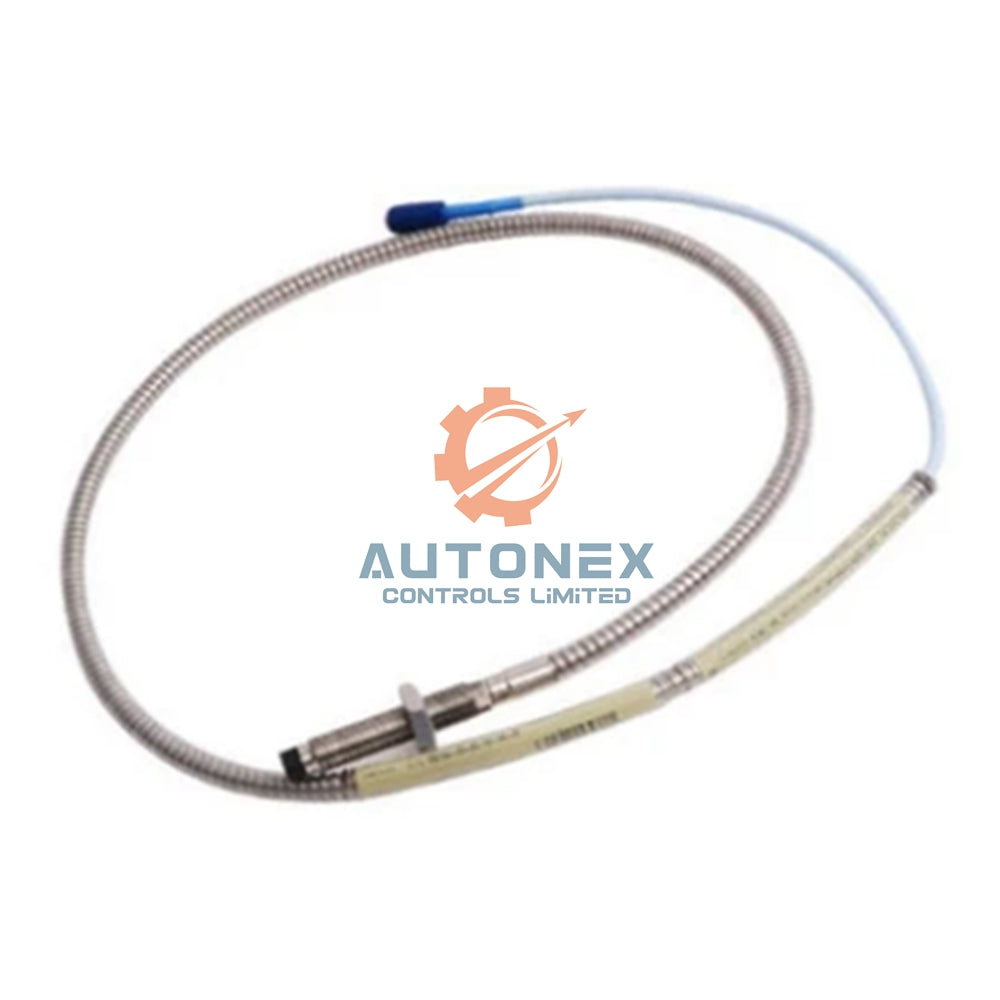

Bently Nevada 330192-00-10-50-CN 3300 XL 8 mm ETR Probe – Precision Proximity Sensor

Key Technical Specifications

• Brand & Model: Bently Nevada 330192-00-10-50-CN
• Category: 3300 XL 8 mm ETR Probe with Armor
• Thread Size: 3/8-24 UNF
• Overall Case Length: 1.0 inch (option 10)
• Total Length: 5.0 meters (16.4 feet) – compatible only with 5m Proximitor sensor
• Unthreaded Length: minimum 0.0 inches; must be 0.8 inches less than case length
• DC Resistance (RPROBE): 8.73 ± 0.50 Ω (center to outer conductor)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303 or 304 stainless steel
• Maximum Thread Engagement: 0.563 inches

Environmental & Operating Ranges

• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Tip: -52°C to +218°C (-62°F to +425°F)
• Extended Cable/Connector: -51°C to +260°C (-60°F to +500°F)
• Humidity Stability: < 3% ASF change after 56 days at 93% RH (IEC 68-2-3)
• Pressure Seal: Viton® O-ring design (factory not pressure tested; custom testing available)
• Hazardous Area Approvals: Ex ia IIC T5…T1 Ga (with barriers); nA/ec for Zone 2/Div 2

Frequently Asked Questions (FAQ)

• Q: Is this a new, original Bently Nevada probe?
  A: Yes, this is a brand new, genuine Bently Nevada 330192-00-10-50-CN.
• Q: Can I use this probe with a 9-meter extension cable?
  A: No, this 5.0 m probe works only with the 5-meter Proximitor sensor.
• Q: What is the maximum thread engagement length?
  A: The maximum thread engagement for the 3/8-24 UNF is 0.563 inches.
• Q: Do you test the pressure seal before shipping?
  A: We do not test each unit; however, we can arrange custom testing – contact us.
• Q: What is the operating temperature for the probe tip?
  A: Standard range is -52°C to +177°C; extended tip withstands up to +218°C.
• Q: How soon will you ship my order?
  A: We ship within 5 days after order confirmation.
• Q: Which carriers do you use for delivery?
  A: We ship with FedEx, UPS, or DHL – you choose at checkout.
• Q: Can I return this probe if it does not fit my application?
  A: Yes, we accept returns within 30 days of delivery (unused condition).
