330192-00-08-10-CN Bently Nevada 3300 XL 8 mm Probe In Stock

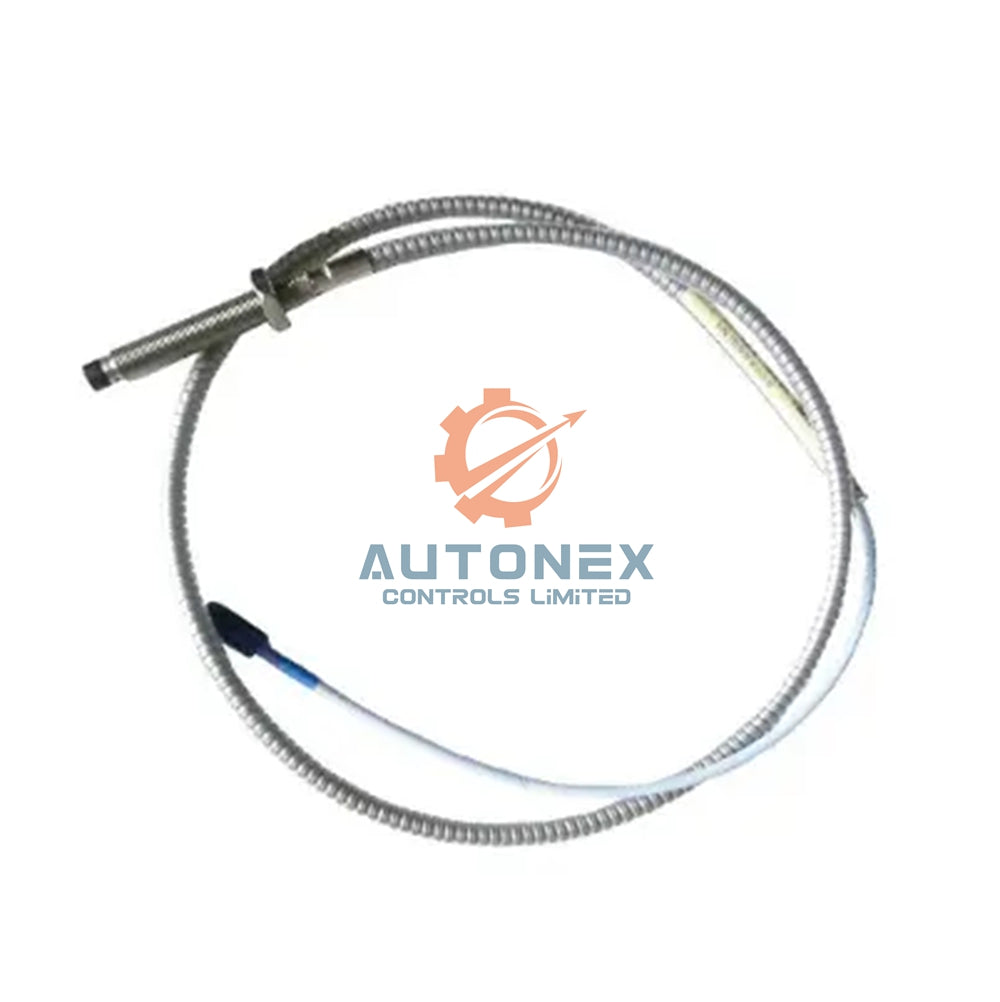

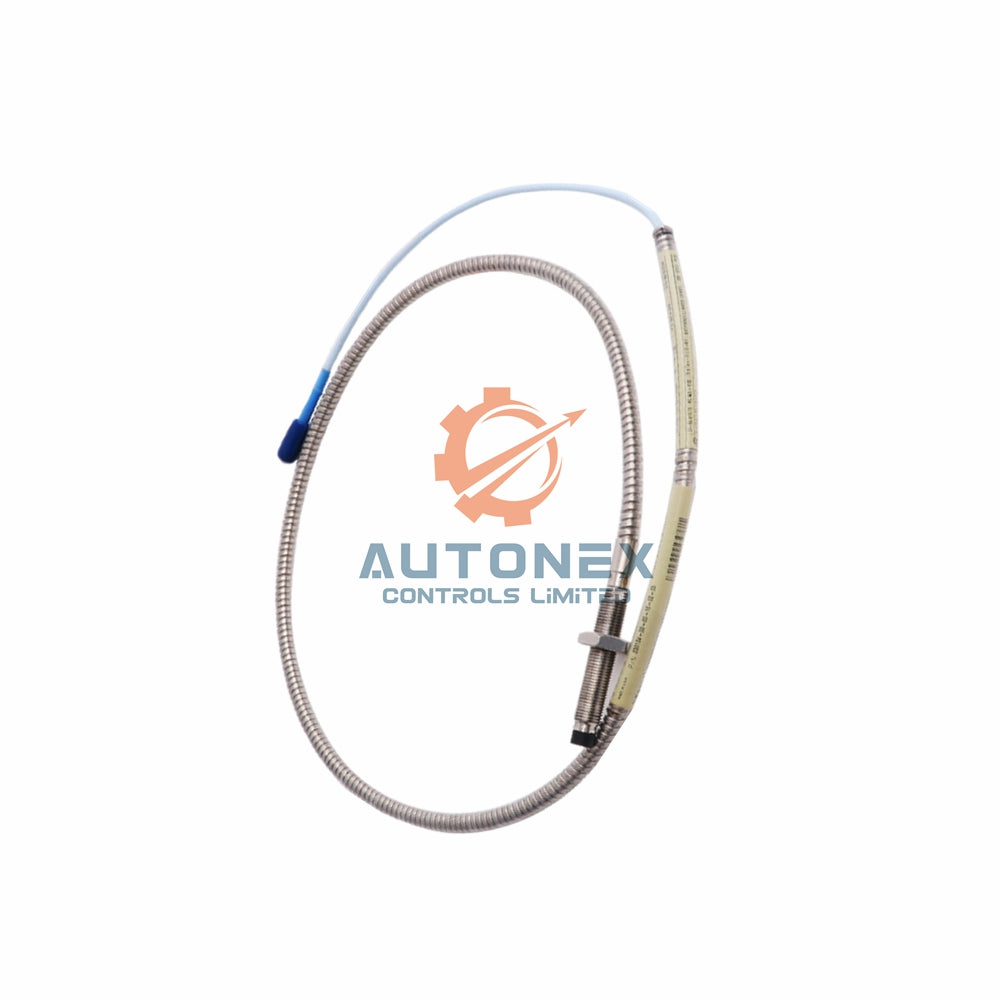

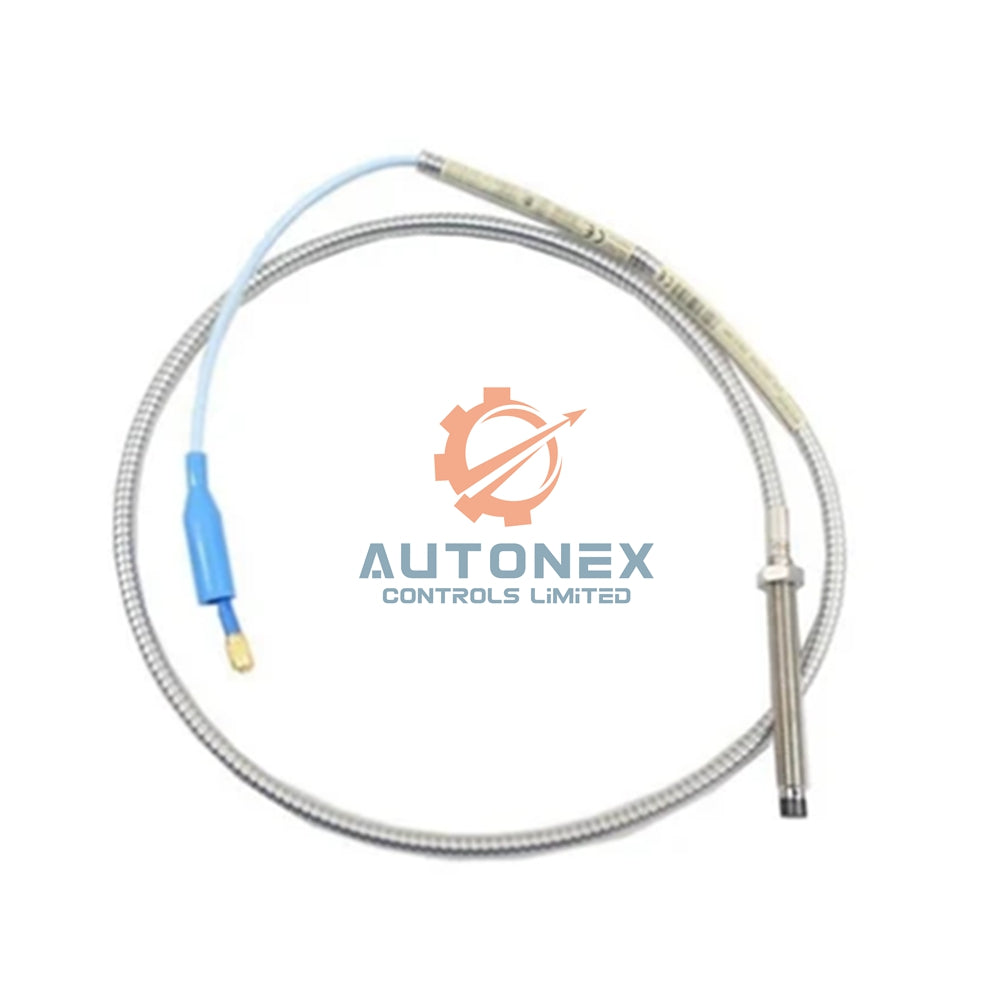

Bently Nevada 330192-00-08-10-CN 3300 XL 8 mm ETR Probe Overview

Key Technical Specifications

• Brand & Model: Bently Nevada 330192-00-08-10-CN (3300 XL 8 mm ETR Probe).
• Thread Type: 3/8-24 UNF thread with 0.563 inches max thread engagement.
• Unthreaded Length Option: Minimum 0.0 inches (must stay 0.8 inches less than case length).
• Overall Case Length: 0.8 inches.
• Total Probe Length (Cable): 1.0 meter (3.3 feet).
• Agency Approval Option: CN = Country Specific (meets regional certification requirements).
• Nominal DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0 meter length (center to outer conductor).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity per IEC 68-2-3 (56 days).
• Standard Temperature Range: -52°C to +177°C (-62°F to +350°F) for operation and storage.
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Extended Cable & Connector Range: -51°C to +260°C (-60°F to +500°F).
• Pressure Seal Warning: Exposing the probe below –34°C (-30°F) may cause premature seal failure.
• Probe Pressure Design: Seals differential pressure between tip and case using a Viton® O-ring.

Frequently Asked Questions (FAQ)

• Is the Bently Nevada 330192-00-08-10-CN probe brand new and original?
  Yes, we supply 100% genuine brand new 3300 XL 8 mm ETR Probe from Bently Nevada.
• Do you have this specific model in stock?
  Yes, we keep adequate stock of the 330192-00-08-10-CN probe ready for immediate order.
• How quickly do you ship the probe?
  We ship within 5 days after order placement, often within 48 hours.
• What carriers do you use for delivery?
  We use FedEx, UPS, and DHL for fast and traceable delivery.
• Can I return the probe if it does not meet my needs?
  We support returns within 30 days from delivery. Customer satisfaction is our priority.
• Does the probe handle high humidity environments?
  Yes, the Bently Nevada 330192-00-08-10-CN shows less than 3% ASF change after 56 days at 93% humidity per IEC 68-2-3.
• What is the maximum continuous operating temperature?
  The standard probe operates from -52°C to +177°C. Extended tip range goes up to +218°C.
• Do you pressure test each probe before shipping?
  No, Bently Nevada does not pressure test each probe. Contact custom design if you need a test.
• What is the maximum thread engagement length?
  For 3/8-24 UNF thread, maximum engagement is 0.563 inches for secure mounting.
• What does Country Specific approval (CN) mean?
  The CN option means the 330192-00-08-10-CN meets regional certification standards for your country.
• Is the probe cable replaceable?
  The cable is an integral part of the probe. Replace the whole 3300 XL 8 mm ETR Probe if damaged.
