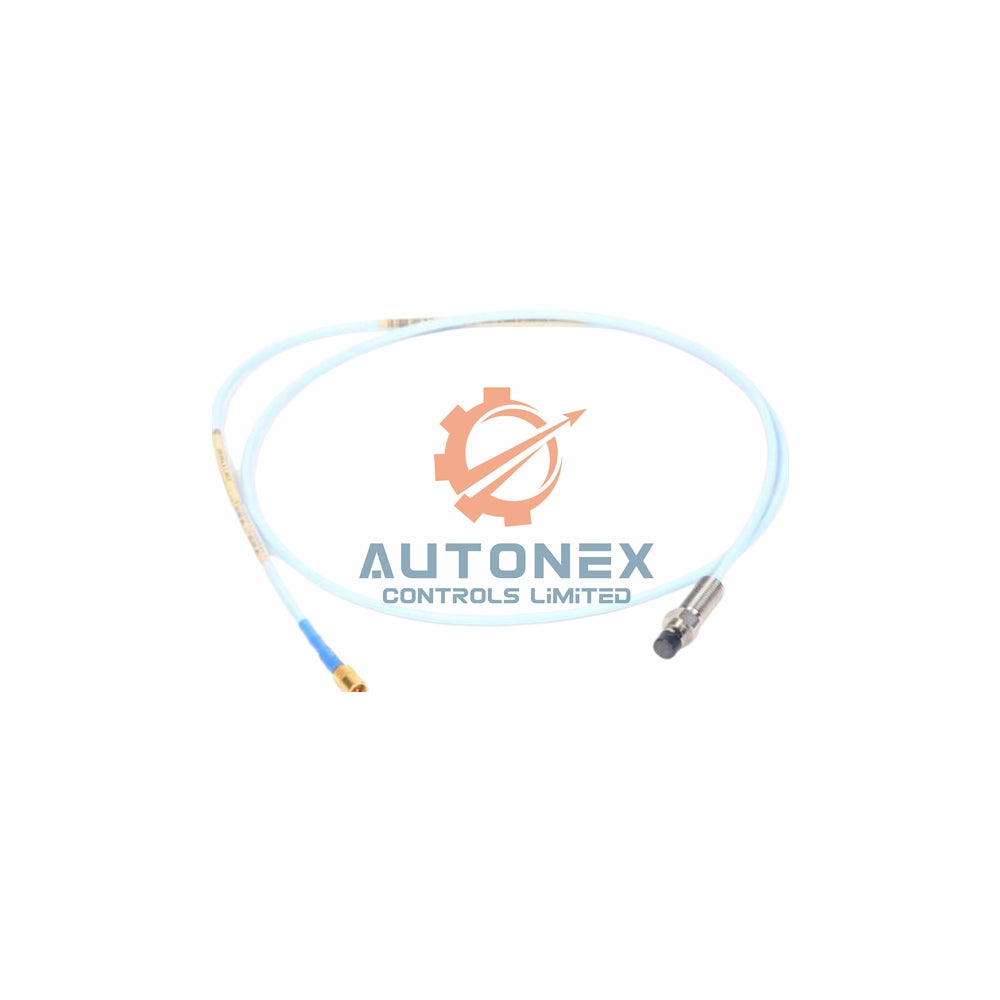

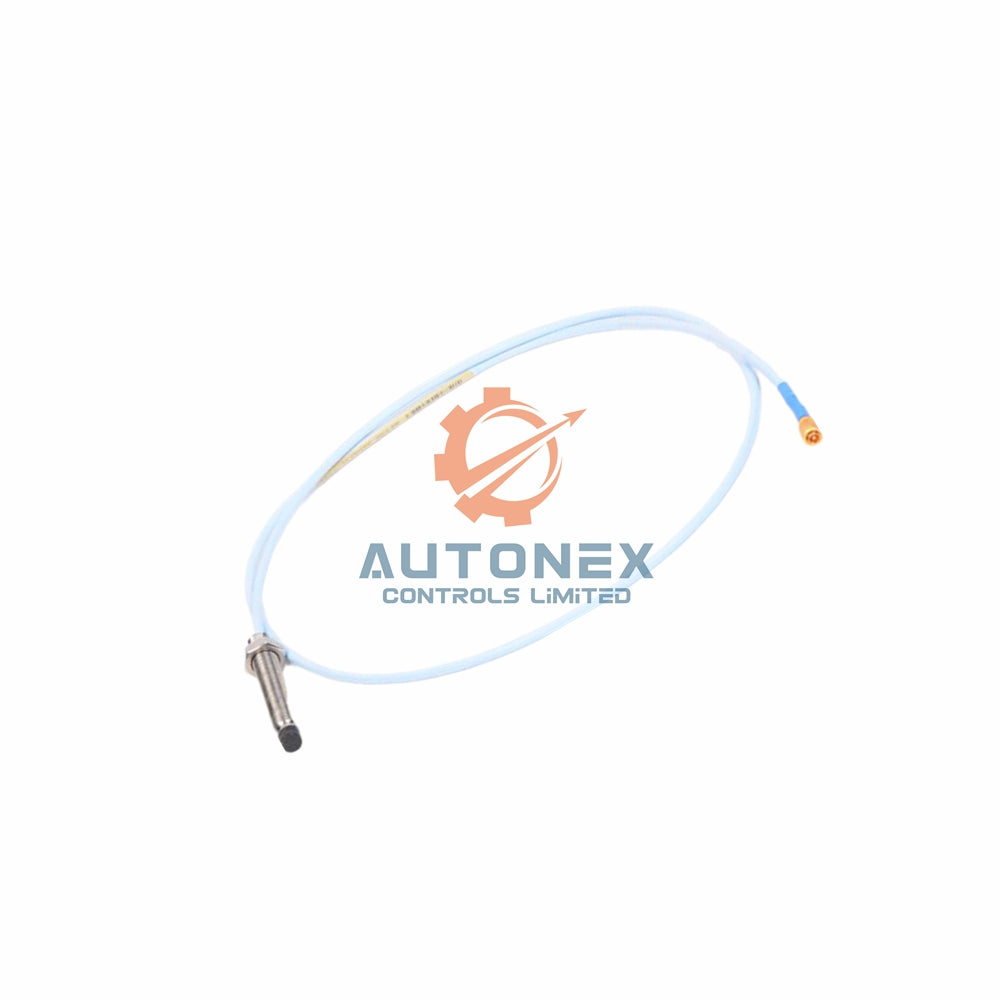

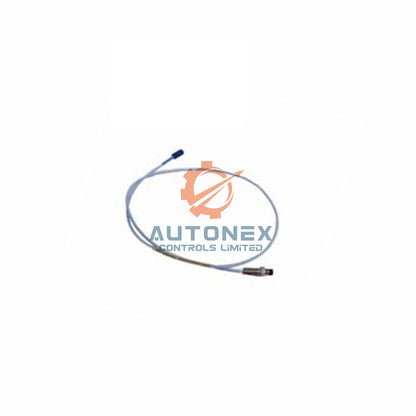

Bently Nevada 330191-02-16-90-00 Proximity Probe: Long-Reach Vibration Monitoring

Product Identification & Suffix Details

• Brand: Bently Nevada
• Full Model Number: 330191-02-16-90-00
• Detailed Suffix Breakdown:
     - 02: Features a 0.2-inch (approx. 5mm) unthreaded probe section
     - 16: Housing with a 1.6-inch (approx. 40mm) long case
     - 90: Integral, factory-attached cable length of 9.0 meters
     - 00: Standard version without specific regional approvals

Key Technical Specifications

• Brand & Model: Bently Nevada 330191-02-16-90-00
• Power Supply Range: -17.5 Vdc to -26 Vdc
• Cable Length: 9.0 meters (Key distinguishing feature)
• Operating Temperature Range: -55°C to +232°C
• Cable Pull-Out Strength: 330 Newtons (N)
• Mounting Thread: Standard 3/8-24 UNF
• Environmental Seal: High-performance Viton® O-ring

Frequently Asked Questions (FAQ)

• Q: What does the "02" in the model number mean for installation?
  A: The "02" indicates a short unthreaded section at the probe tip, which can be useful in certain mounting configurations.
• Q: Is this the same as the 330191-00-16-90-00 model?
  A: No. The key difference is the first suffix (02 vs. 00), which specifies the probe's physical tip design.
• Q: Do you have this long-cable model in stock?
  A: Yes, we maintain stock of the 330191-02-16-90-00 for fast delivery.
• Q: Can the 9-meter cable be cut or shortened?
  A: No. The cable is integral and calibrated to length. Cutting it will ruin the probe.
• Q: What is the warranty period?
  A: This product is covered by a standard 1-year manufacturer's warranty.
• Q: Where can I find the connection diagram?
  A: The full system datasheet, including wiring diagrams, is available for download below.

Download Full Technical Documentation

Access the complete resource for specifications, installation drawings, and setup guidelines. Download the official 3300 XL 8mm Proximity Transducer System Datasheet (PDF).
