330174-00-06-10-02-00 Bently Nevada 5mm Proximity Probe

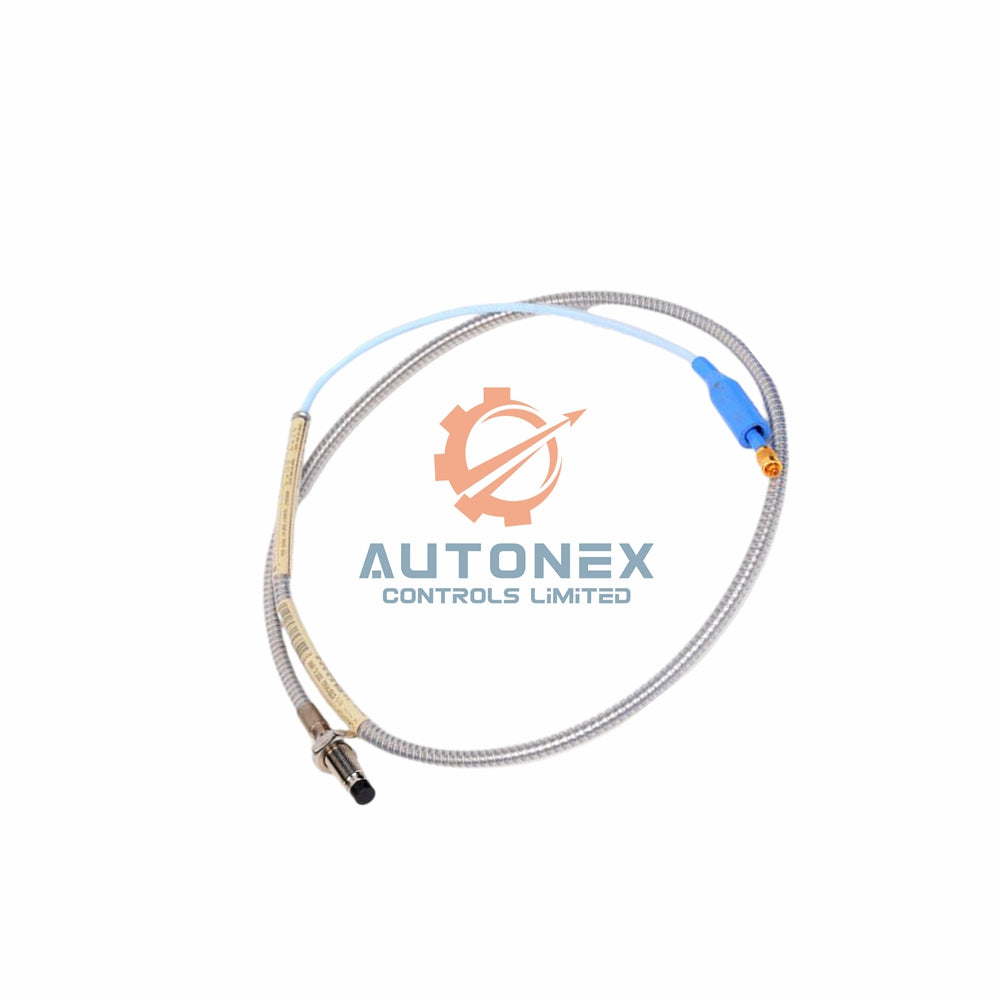

Bently Nevada 330174-00-06-10-02-00 – Precision 5mm Proximity Probe for Critical Machinery

Key Technical Specifications

• Brand & Series: Bently Nevada, part of the 3300 5 mm probe family.
• Thread Type: M8 x 1 thread for a secure and standard mounting process.
• Overall Case Length: 60 mm case suitable for limited space installations.
• Total Cable Length: 1.0 m (3.3 ft) miniature coaxial ClickLoc cable.
• Operating Voltage: Accepts –17.5 Vdc to –26 Vdc with less than 2 mV supply sensitivity.
• Current Consumption: 12 mA max, ensuring low power draw from your system.
• Output Resistance: 50 Ω for excellent signal integrity over the cable run.
• DC Resistance (1.0 m): 7.59 ± 0.50 Ω, meeting strict factory tolerances.
• Country of Origin: Made in U.S.A. with Certificate of Origin available.

Installation & Mounting Guidelines

• Use the 330174-00-06-10-02-00 with standard 3300 driver modules for optimal performance.
• Apply the M8 x 1 thread with the recommended torque to avoid probe damage.
• Maintain proper gap settings according to the 3300 5 mm system manual.
• Route the 1.0 m ClickLoc cable away from high-interference power lines.
• Secure the coaxial connector firmly to ensure reliable operation.
• Verify the –17.5 Vdc to –26 Vdc power supply before energizing the system.

Environmental & Performance Characteristics

• Superior linearity and resolution for 5 mm measurement range applications.
• Excellent temperature tolerance, designed for extreme industrial conditions.
• High RFI/EMI immunity keeps signals clean in electrically noisy environments.
• Frequency response tailored for effective vibration and displacement analysis.
• Sensitivity remains stable over the entire voltage range, minimizing errors.

Frequently Asked Questions (FAQ)

• Is this proximity probe brand new and original? Yes, we supply only new original Bently Nevada 330174-00-06-10-02-00 units.
• What is your stock availability for this model? We have in stock the 330174-00-06-10-02-00 ready for immediate dispatch.
• How fast can you ship the probe? We ship within 5 days after order confirmation.
• Which logistics partners do you use? We ship via DHL, FedEx, or UPS – you choose the carrier.
• What is the operating voltage range? It requires –17.5 Vdc to –26 Vdc, as stated in the datasheet.
• What is the thread size of this probe? It features an M8 x 1 thread for standard industrial mounting.
• Do you accept returns if I order the wrong part? Yes, we support 30-day returns for eligible items.
• Can I download the full datasheet? Absolutely, we provide a PDF below for the 3300 5 mm system.

Download the official PDF guide: 3300 5 mm Transducer System Datasheet - 172036 (email this link to your engineering team).
