330104-03-09-05-02-05 Bently Nevada 3300 XL 8mm Probe Metric

Bently Nevada 3300 XL 8 mm Metric Probe – Model 330104-03-09-05-02-05

Key Technical Specifications

• Brand & Model: Bently Nevada 330104-03-09-05-02-05 (3300 XL 8 mm Probe, Metric).
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils), output approx. –1 to –17 Vdc.
• Recommended Gap (Radial Vibration): -9 Vdc, corresponding to ~1.27 mm (50 mils).
• Probe DC Resistance (RPROBE): 7.45 ± 0.50 Ω for 1.0 m length.
• Temperature Range (Standard): -52 °C to +177 °C (-62 °F to +350 °F).
• Extended Temp Option: Tip -52 °C to +218 °C; Cable -51 °C to +260 °C.
• Relative Humidity: < 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Case Material: AISI 303/304 stainless steel; Tip Material: Polyphenylene sulfide (PPS).
• Pressure Seal: Viton® O-ring design; probes are not pressure tested prior to shipment.

Environmental & Agency Approvals

• Intrinsically Safe (ia): Ex ia IIC T5…T1 Ga (Zone 0) with zener barriers per drawing 141092.
• Non-incendive (nA/ec): Ex nA IIC T5…T1 Gc (Zone 2) per drawing 140979.
• Agency Approvals (Option 05): This 330104-03-09-05-02-05 carries CSA, ATEX, and IECEx certifications.
• Operating Humidity: Less than 3% Scale Factor change in 93% RH for up to 56 days.
• Exposure Below -34 °C (-30 °F): May cause premature pressure seal failure.

Installation & Wiring Guidelines

• Thread Engagement: Maximum 15 mm for M10 x 1 case thread.
• Field Wiring: Use 3-conductor shielded triad cable, 0.2 to 1.5 mm² (16-24 AWG), tinned conductors.
• Maximum Field Cable Length: 305 m (1,000 ft) between proximity sensor and monitor.
• Connector Type: Miniature coaxial ClickLoc with standard cable (Option 02).
• Total Length: 0.5 meter (1.6 feet) – Option 05.
• Unthreaded Length: 30 mm; Overall Case Length: 90 mm.

Frequency Response & Signal Rolloff

• Longer field wiring reduces high-frequency response; refer to frequency response graphs (Figures 10 & 12).
• Linear range begins at ~0.25 mm (10 mils) from target and extends to 2.3 mm (90 mils).
• Output voltage spans from -1 Vdc to -17 Vdc over the full linear range.

What's Included in the Package

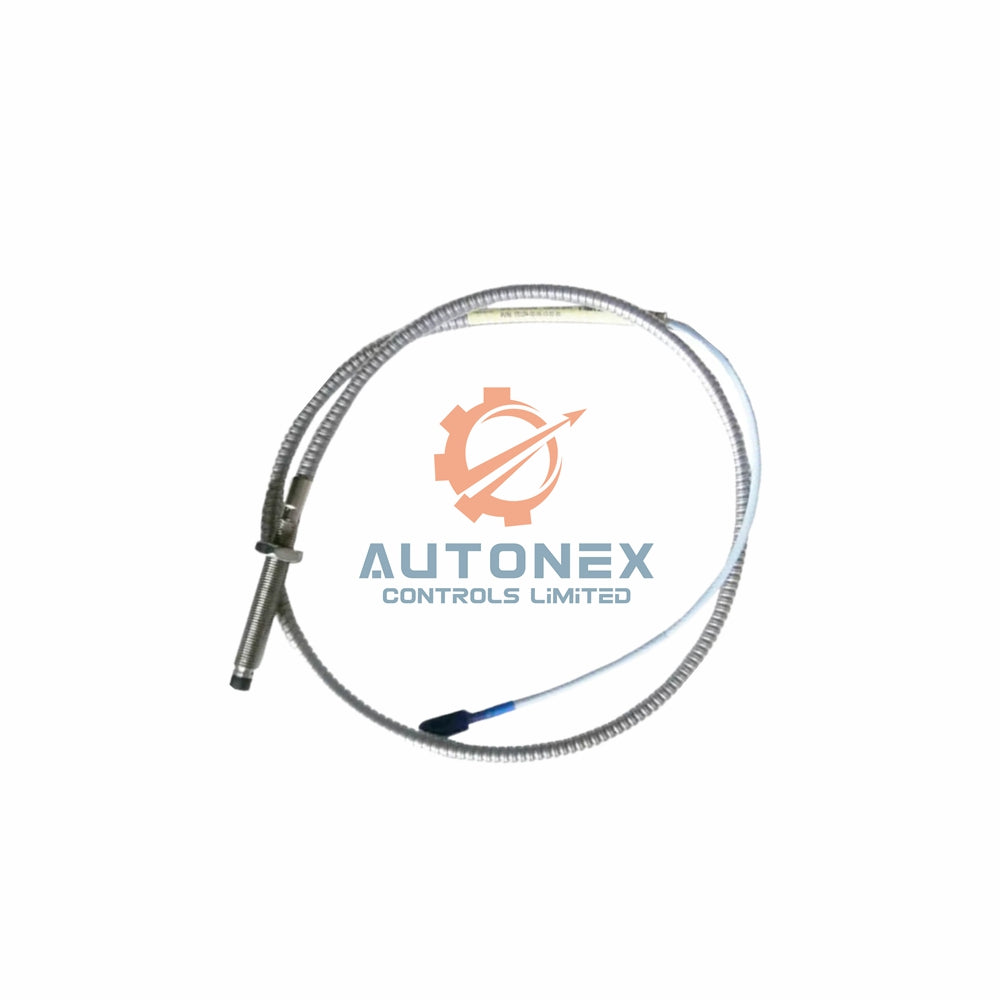

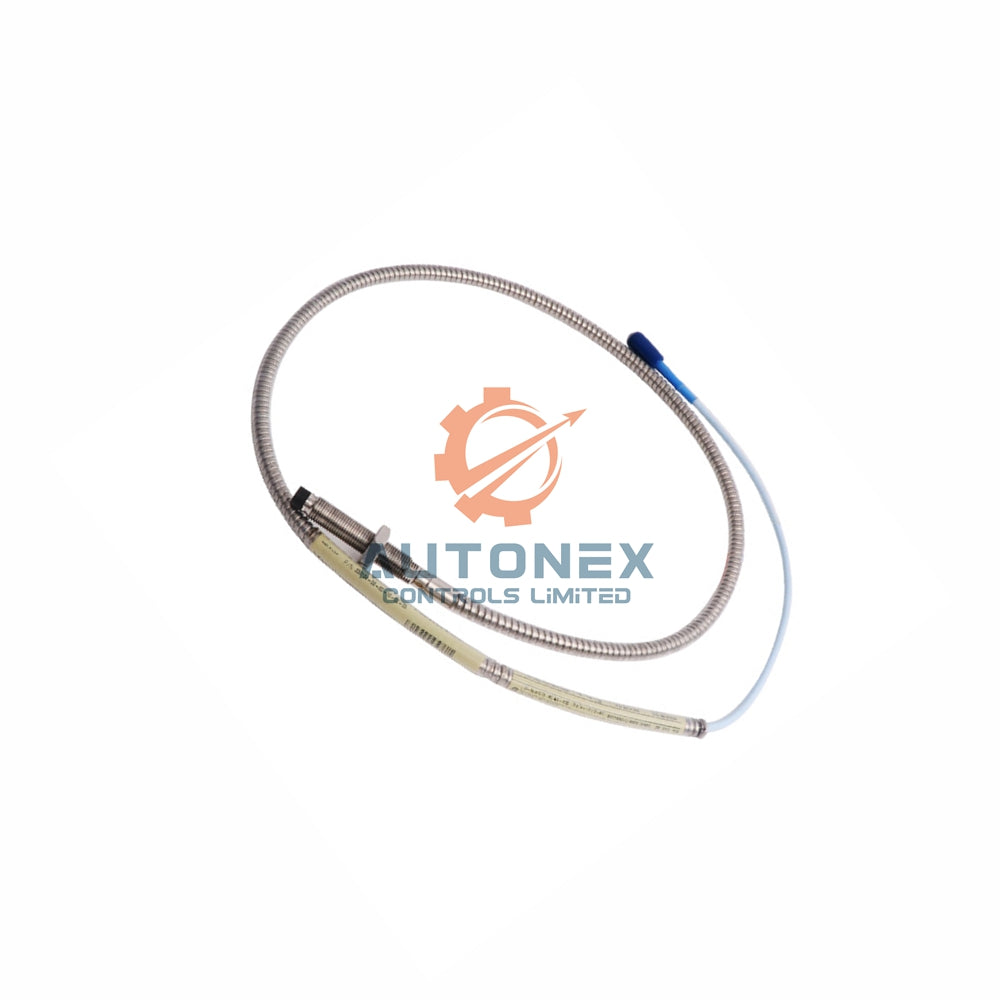

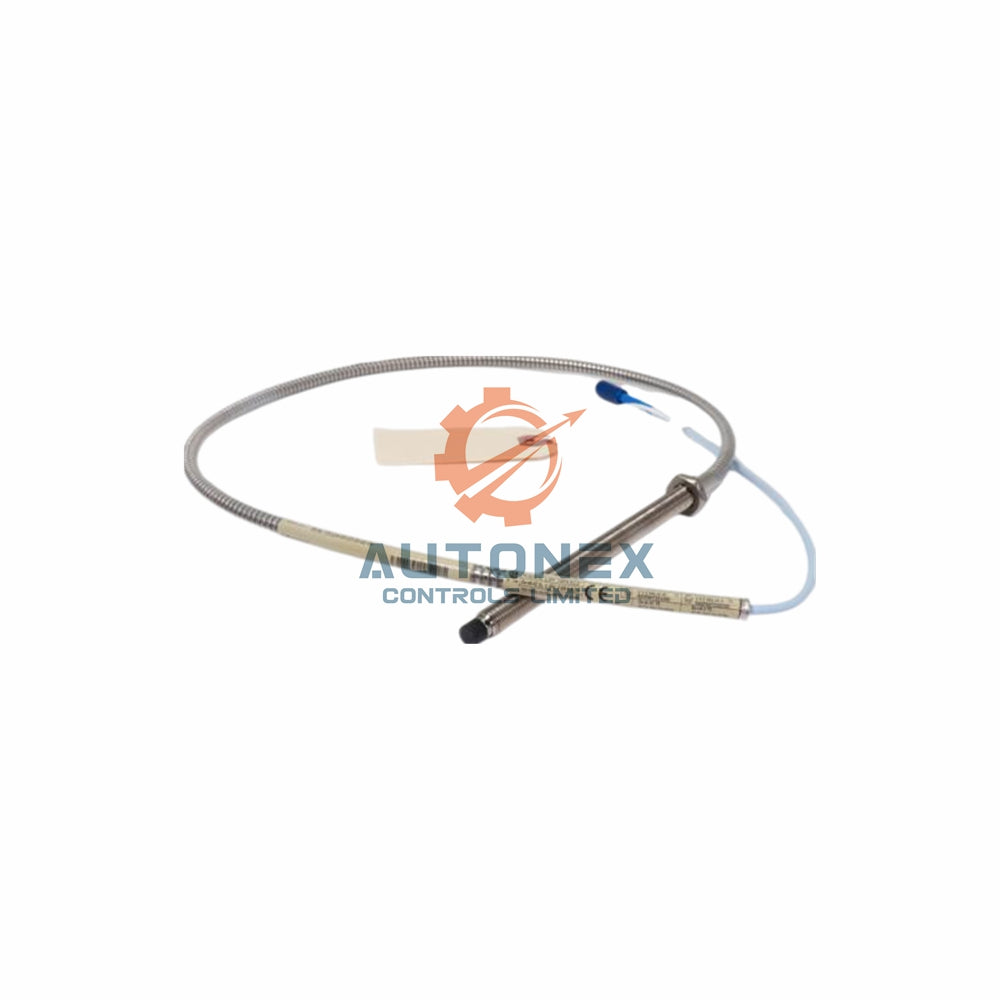

• One Bently Nevada 330104-03-09-05-02-05 3300 XL 8 mm Proximity Probe with armored cable.
• Integrated miniature coaxial ClickLoc connector (Option 02).
• Standard cable length: 0.5 meter (1.6 feet).
• Probe with stainless steel case (AISI 303/304) and PPS tip.
• Viton® O-ring for pressure sealing (not tested).
• Note: No mounting hardware, barriers, or isolators included unless ordered separately.

Shipping & Logistics

• We ship via FedEx, UPS, or DHL – all major express carriers.
• All items are brand new and original from Bently Nevada.
• Stock availability: In stock and ready for immediate dispatch.
• Delivery time: Within 5 business days after order confirmation.
• 30-day return policy for unused items in original packaging.

Frequently Asked Questions (FAQ)

• Q: Is this 330104-03-09-05-02-05 a new and original Bently Nevada probe?
  A: Yes, we supply only 100% genuine, brand new Bently Nevada 3300 XL series probes.
• Q: What is the recommended target gap for radial vibration measurement?
  A: Set the gap to -9 Vdc, which equals approximately 1.27 mm (50 mils) for optimal performance.
• Q: Can I use this probe in high-temperature environments above +177 °C?
  A: The standard probe handles -52 °C to +177 °C. For extended range (up to +218 °C tip), specify the extended temperature option when ordering.
• Q: What cable type and maximum length can I use with this proximity probe?
  A: Use 3-conductor shielded triad cable (16-24 AWG). The total length between probe and monitor must not exceed 305 meters (1,000 feet).
• Q: How do I connect the miniature coaxial ClickLoc connector?
  A: The ClickLoc connector provides a secure, positive-lock connection. Just push and twist to lock; no special tools required.
• Q: Are these probes pressure tested before shipping?
  A: Bently Nevada does not pressure test standard probes. Contact our custom design department if your application requires a pressure seal test.
• Q: What is the probe's resistance value (RPROBE)?
  A: For 1.0 m probe length, the DC resistance from center to outer conductor is 7.45 ± 0.50 Ω.
• Q: Is the 330104-03-09-05-02-05 suitable for hazardous area installations?
  A: Yes, it carries Ex ia IIC T5…T1 Ga (Zone 0) and Ex nA IIC T5…T1 Gc (Zone 2) approvals when installed with appropriate barriers or isolators.
