330104-02-12-10-01-00 Bently Nevada 3300 XL 8mm Proximity Probe

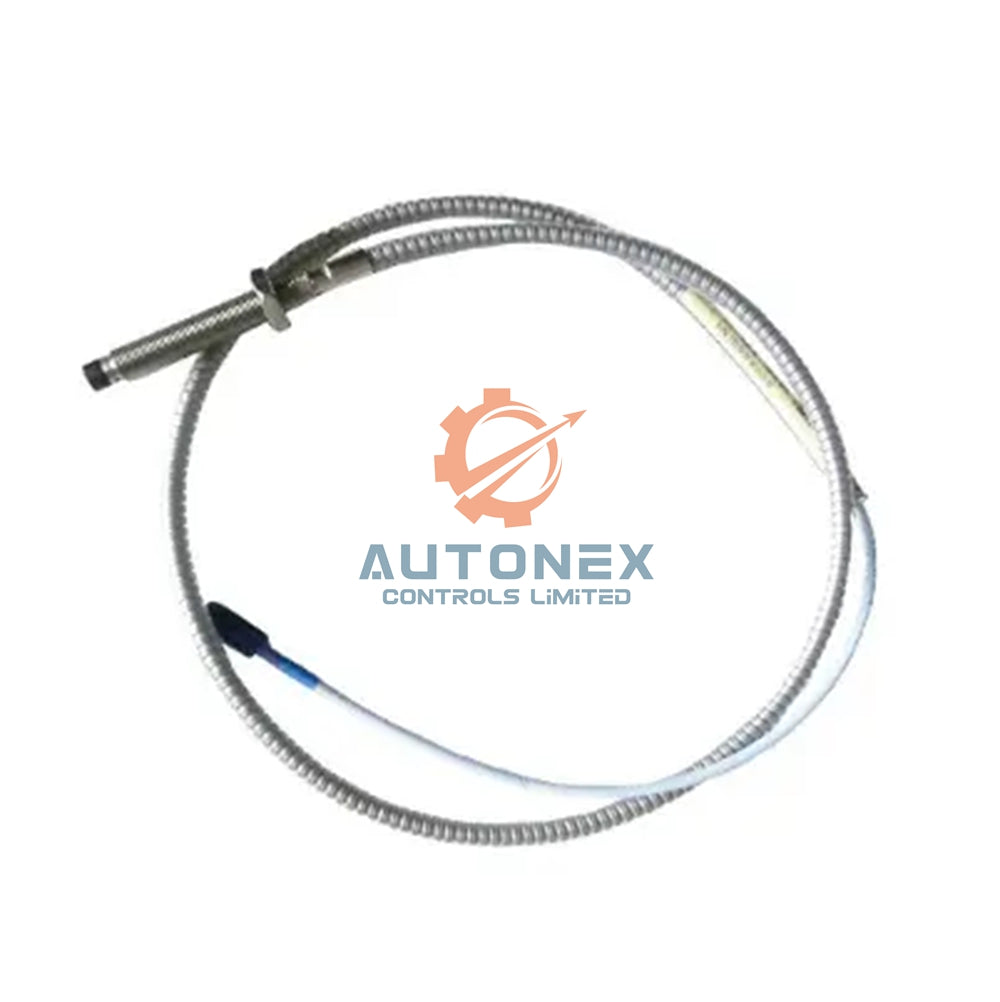

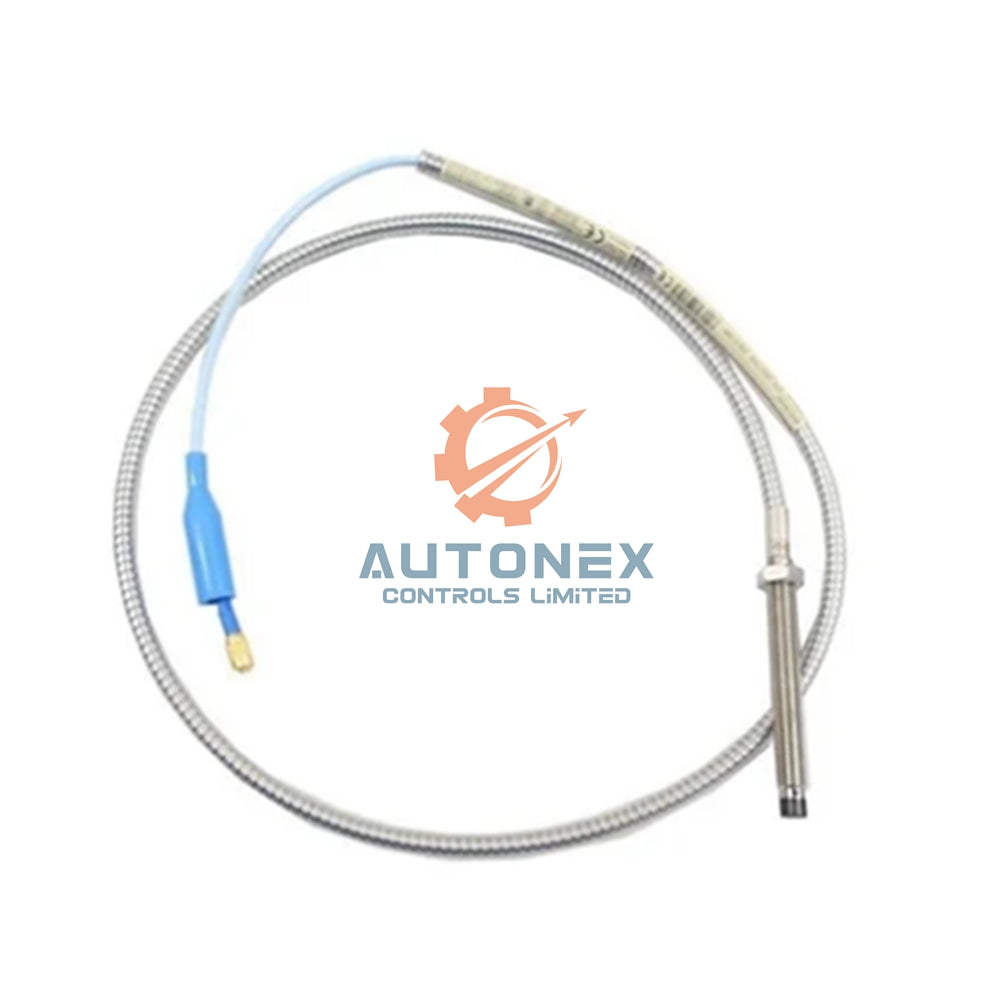

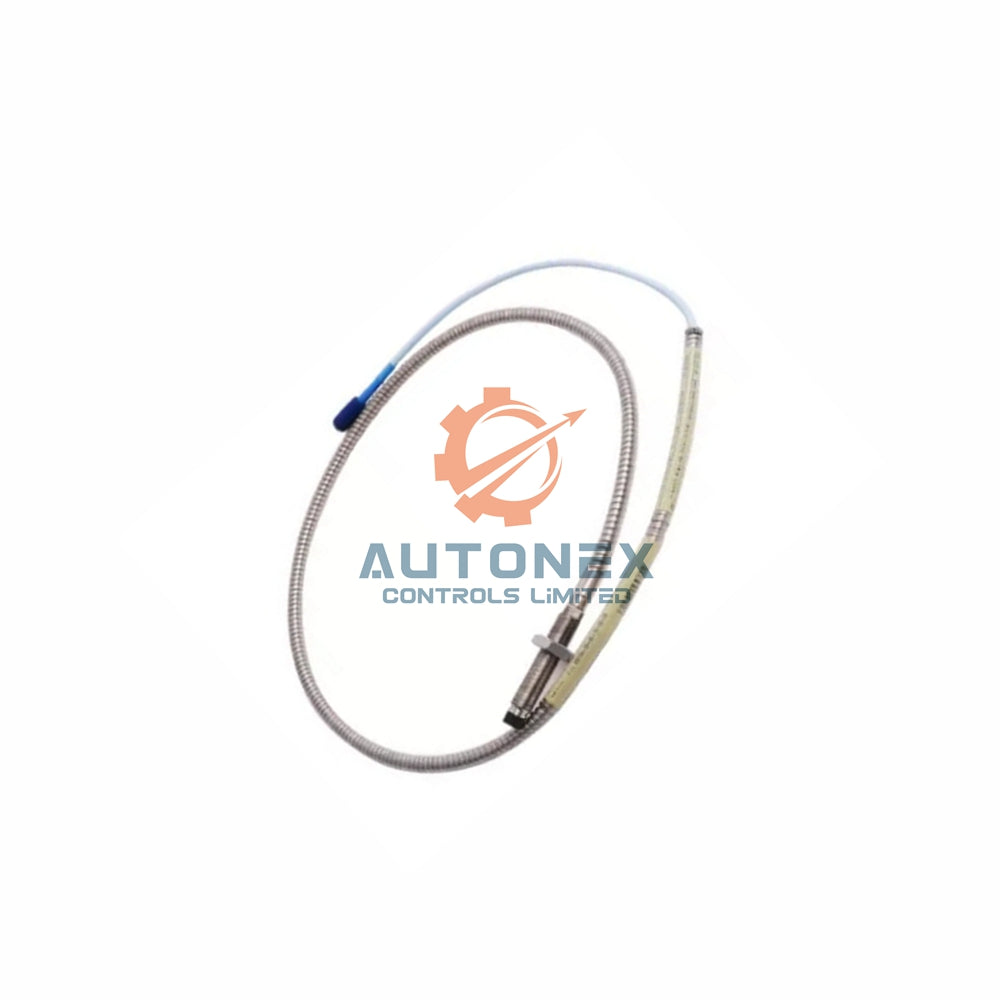

Bently Nevada 330104-02-12-10-01-00 3300 XL 8 mm Proximity Probe

• Manufacturer: Bently Nevada – a trusted brand in machinery protection systems.
• Model Number: 330104-02-12-10-01-00 – part of the 3300 XL family.
• Probe Type: 3300 XL 8 mm Proximity Probe, Metric, with armor.
• Thread Size: M10 x 1, with a maximum thread engagement of 15 mm.
• Unthreaded Length: 20 mm (option 02) for extended reach.
• Overall Case Length: 120 mm (option 12).
• Total Cable Length: 1.0 meter (3.3 feet) – option 10.
• Connector: Miniature coaxial ClickLoc with connector protector, standard cable (option 01).
• Agency Approval: 00 – not required for this configuration.

Key Technical Specifications

• Linear Range: 2 mm (80 mils). The range starts at ~0.25 mm (10 mils) and extends to 2.3 mm (90 mils).
• Output Voltage Range: Approximately –1 to –17 Vdc across the full linear range.
• Recommended Radial Vibration Gap: -9 Vdc, which corresponds to ~1.27 mm (50 mils).
• DC Resistance (RPROBE): 7.59 ± 0.50 Ω for the 1.0 m probe length.
• Probe Tip Material: Polyphenylene sulfide (PPS) for excellent durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Pressure Seal: Viton® O-ring design seals differential pressure between tip and case.

Environmental & Installation

• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Tip: -52°C to +218°C (-62°F to +425°F); cable and connector up to +260°C.
• Humidity Stability: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Field Wiring: 0.2 to 1.5 mm² (16–24 AWG), 3-conductor shielded triad recommended.
• Maximum Field Cable Length: 305 meters (1,000 feet) between sensor and monitor.
• Intrinsically Safe (ia): Class I, Zone 0; AEx/Ex ia IIC T5...T1 Ga; also Groups A–G.
• Non-incendive (nA/ec): Class I, Zone 2; AEx/Ex nA IIC T5…T1 Gc; Div 2, Groups A–D.

Mechanical & Physical Data

• Weight: 323 g/m (11.4 oz) for the probe assembly.
• Thread Engagement Max: 15 mm for secure mounting.
• Pressure Seal Note: Not pressure tested before shipment; custom testing available upon request.
• Low Temperature Caution: Exposure below –34°C (–30°F) may reduce seal life.

Installation Guidelines

• Use the M10x1 thread for mounting; ensure the engagement does not exceed 15 mm.
• The 20 mm unthreaded length provides extra reach for challenging installations.
• For field wiring, use 3-conductor shielded triad cable with tinned conductors.
• Keep the total field wiring length under 305 meters to avoid high-frequency rolloff.
• Set the initial gap to achieve -9 Vdc for radial vibration applications.
• For hazardous areas, follow the approved intrinsic safety or non-incendive drawings.

Package Contents

• 1 x 330104-02-12-10-01-00 3300 XL 8 mm Proximity Probe with armor.
• Integrated 1.0 meter standard cable with ClickLoc connector and protector.
• Mounting hardware (nuts and washers) for M10 x 1 thread.
• Installation instruction sheet (quick start guide).

Frequently Asked Questions (FAQ)

• Is this a genuine Bently Nevada probe?
  Yes, we supply only new original Bently Nevada parts. All products are authentic and factory-sealed.
• Do you have this model in stock?
  Yes, we maintain stock for the 330104-02-12-10-01-00. We can ship within 5 business days after order confirmation.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL – you can choose your preferred option at checkout.
• What is the return policy?
  We support returns within 30 days of delivery, provided the probe remains unused and in its original packaging.
• What is the advantage of the 20 mm unthreaded length?
  The 20 mm unthreaded section gives you more flexibility in positioning the probe tip relative to the target surface.
• Can I use this probe with a 3-conductor cable longer than 305 m?
  We recommend keeping field wiring under 305 meters (1,000 feet) to maintain signal integrity; longer runs may cause high-frequency rolloff.
• Is the probe pressure tested before shipment?
  Standard probes are not pressure tested. Contact our custom design department if you require a pressure seal test for your application.
