330104-00-13-05-02-05 Bently Nevada 3300 XL 8mm Probe In Stock

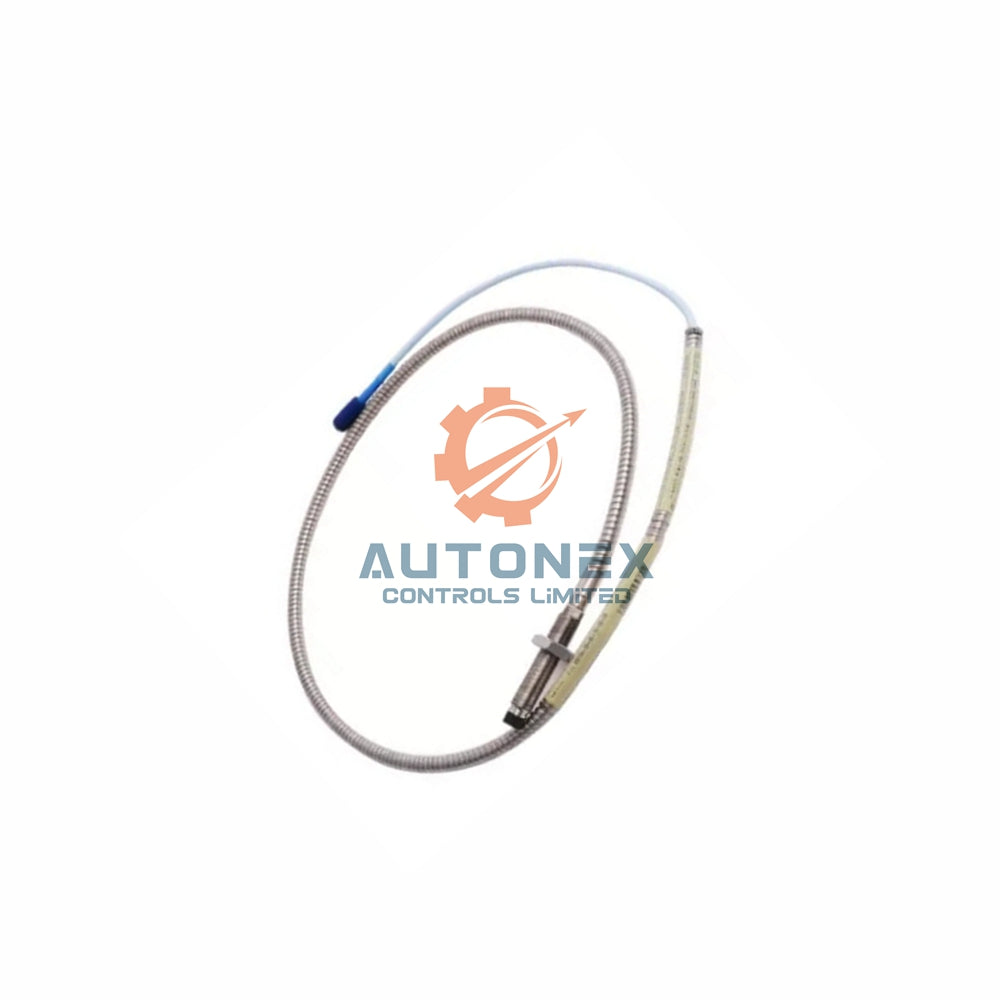

Bently Nevada 330104-00-13-05-02-05 3300 XL 8 mm Proximity Probe

Key Technical Specifications

• Brand & Model: Bently Nevada 330104-00-13-05-02-05 (3300 XL 8 mm Probe).
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Recommended Gap Setting: -9 Vdc (approx. 1.27 mm / 50 mils) for radial vibration.
• DC Resistance (0.5m): 7.45 ± 0.50 Ω (center to outer conductor).
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG) with 3-conductor shielded triad cable.
• Max Field Wiring Length: 305 meters (1,000 feet) between sensor and monitor.
• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Extended Temp Tip: -52°C to +218°C (-62°F to +425°F); cable to +260°C.
• Humidity Stability: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Probe Weight: 323 g/m (11.4 oz) with M10x1 thread, max engagement 15 mm.

Installation & Mechanical Details

• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Approvals: CSA, ATEX, IECEx (option 05) for hazardous areas.
• Pressure Seal: Viton® O-ring design; contact custom department for testing.
• Probe Case Thread: M10 x 1 with a maximum engagement length of 15 mm.
• Unthreaded Length: 00 mm (standard configuration).
• Overall Case Length: 130 mm.
• Intrinsic Safety: AEx/Ex ia IIC T5...T1 Ga (Zone 0) with zener barriers.
• Non-incendive: AEx/Ex nA IIC T5…T1 Gc (Zone 2) with drawing 140979.

Environmental & Performance Features

• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance.
• Case Material: AISI 303 or 304 stainless steel (SST).
• Operating Temp (Std): -52°C to +177°C; avoid below -34°C for seal life.
• Extended Temp Cable: -51°C to +260°C (-60°F to +500°F).
• Relative Humidity: Passes 93% humidity test for 56 days per IEC standard.
• Frequency Response: See figures 10 and 12 for signal roll-off at high frequencies.

Packaging & Logistics

• Packaging: Each unit comes in anti-static protective packaging.
• Shipping: We ship via FedEx, UPS, or DHL within 5 business days.
• Returns: 30-day return policy applies for unused items.
• Stock: We keep new original units in stock for prompt dispatch.

Frequently Asked Questions (FAQ)

• Q: Is this a new original Bently Nevada probe?
  A: Yes, we supply 100% new original Bently Nevada 330104-00-13-05-02-05 units.
• Q: What is the linear range of the 3300 XL 8 mm probe?
  A: The linear range is 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Q: What is the recommended gap setting for vibration?
  A: Use -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).
• Q: What is the cable length of this model?
  A: This model comes with a 0.5 meter (1.6 feet) cable with standard ClickLoc connector.
• Q: How long does shipping take and which carriers do you use?
  A: We ship within 5 days via FedEx, UPS, or DHL.
• Q: What is the maximum field wiring length?
  A: You can use up to 305 meters (1,000 feet) of 3-conductor shielded triad cable.
