330104-00-11-05-02-00 Bently Nevada - 8mm Probe

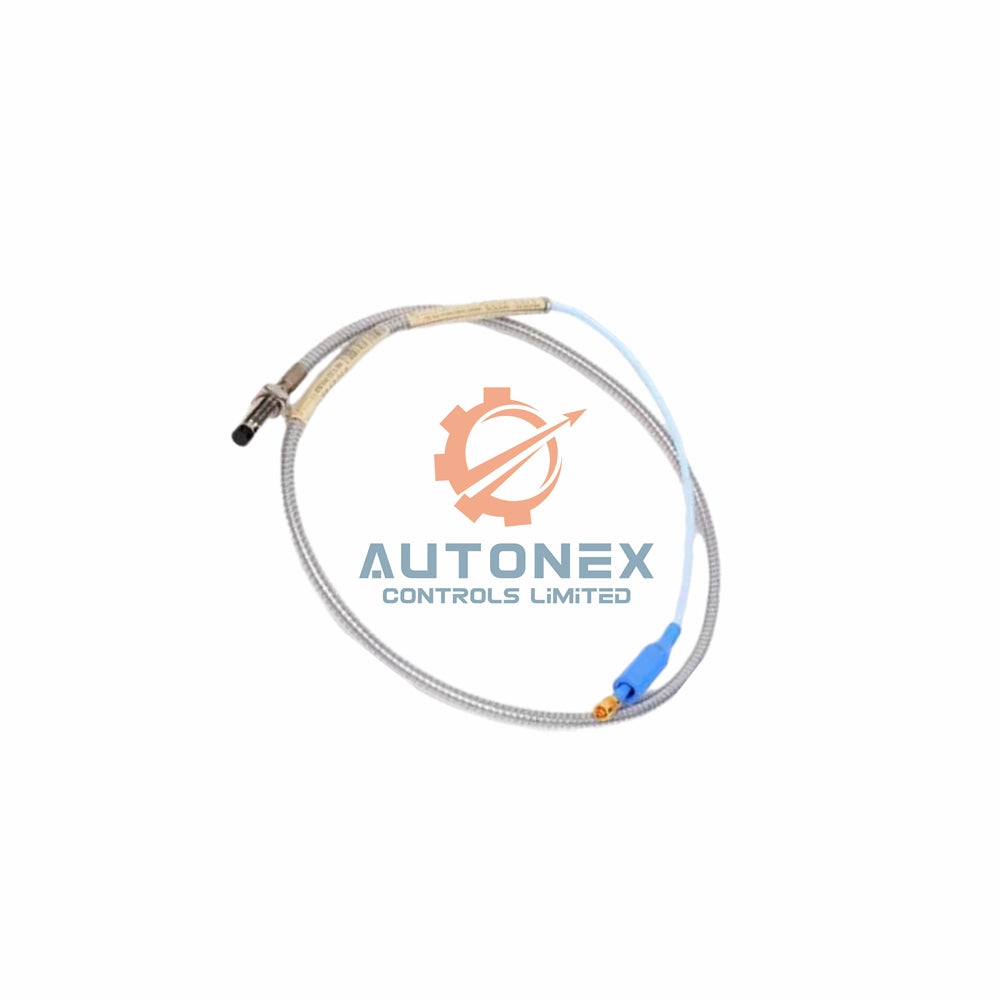

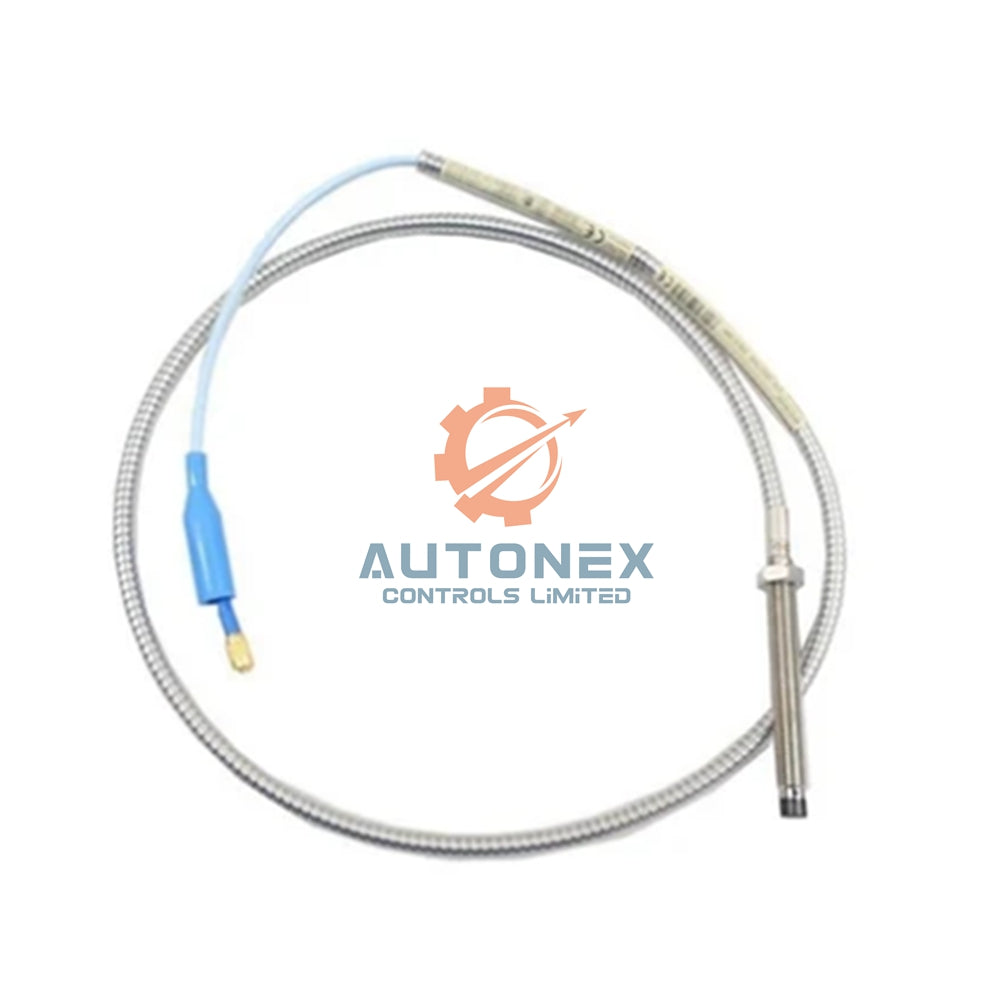

Bently Nevada 3300 XL 8 mm Proximity Probe – 330104-00-11-05-02-00

• Manufacturer: Bently Nevada (a Baker Hughes business).
• Model Number: 330104-00-11-05-02-00 – 3300 XL 8 mm Probe, M10 x 1 thread, with armor.
• Unthreaded Length: 0 mm (option 00).
• Overall Case Length: 110 mm (option 11).
• Total Length: 0.5 meter (1.6 feet) – option 05.
• Connector & Cable: Miniature coaxial ClickLoc connector with standard cable (option 02).
• Agency Approval: Not required (option 00).

Key Technical Specifications

• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils). Output spans approx. –1 to –17 Vdc.
• Recommended Radial Vibration Gap: –9 Vdc (approx. 1.27 mm / 50 mils).
• Probe DC Resistance (0.5 m length): 7.45 Ω ± 0.50 (center to outer conductor).
• Field Wiring: 0.2 to 1.5 mm² (16–24 AWG) shielded triad cable. Maximum 305 m (1000 ft) between sensor and monitor.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Case Thread: M10 x 1, max engagement length 15 mm.
• Weight: 323 g/m (11.4 oz per meter).

Frequently Asked Questions (FAQ)

• Is this probe new and original? Yes, we supply only 100% new and original Bently Nevada products.
• Do you have this model in stock? Yes, we maintain inventory of 330104-00-11-05-02-00 for immediate orders.
• What is the delivery time? We ship within 5 days after order confirmation via DHL, FedEx, or UPS.
• What is the linear range of this probe? 2 mm (80 mils) from 0.25 mm to 2.3 mm (10–90 mils) with –1 to –17 Vdc output.
• What is the recommended installation torque? Bently Nevada recommends 11.2 N•m (100 in•lbf) for this probe.
• Can I use this probe in high humidity? Yes, it passes 93% RH testing for 56 days with less than 3% scale factor change.
• What is the maximum field wiring length? 305 meters (1000 ft) between the Proximitor and the monitor.
• Does this probe support hazardous locations? Yes, it carries ia and nA/ec approvals for Zone 0, Zone 2, and Div 1/2 areas.
• What is the probe tip material? Polyphenylene sulfide (PPS) for durability and chemical resistance.
• Do you accept returns? Yes, we support a 30-day return policy for unused items in original packaging.
