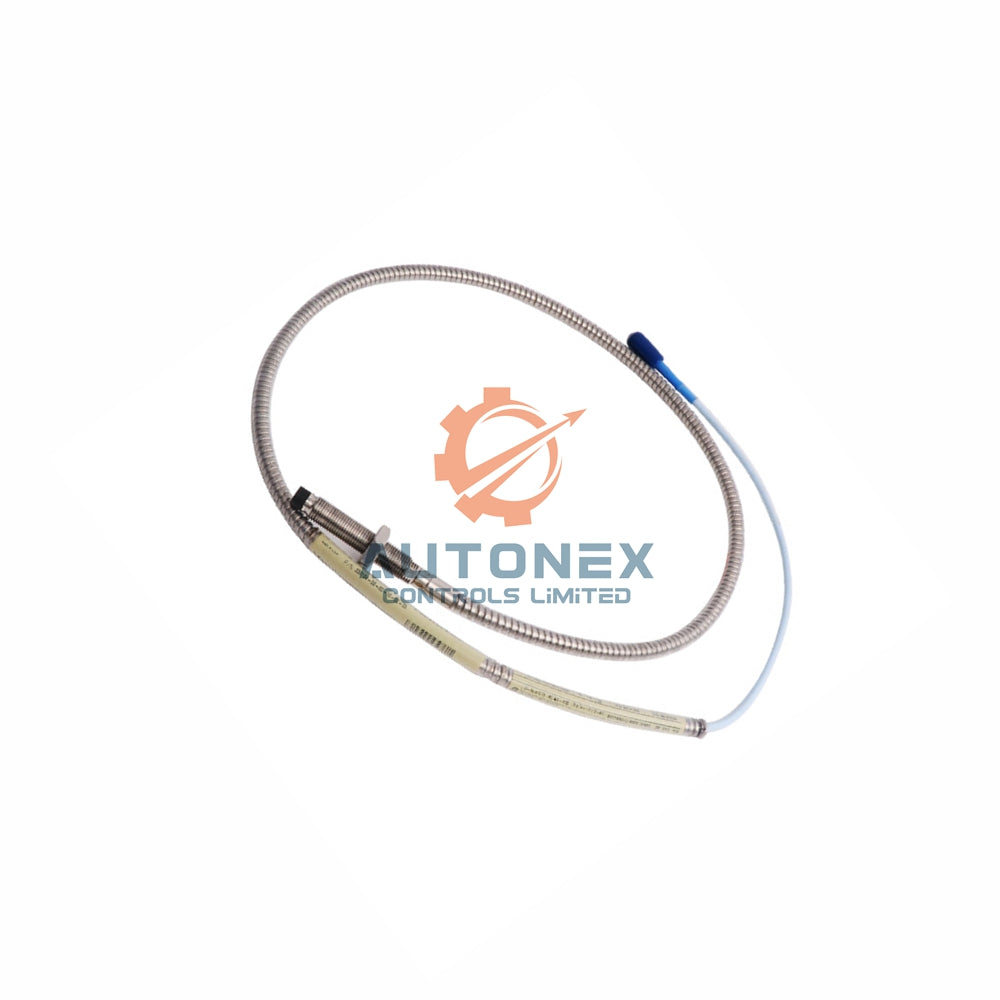

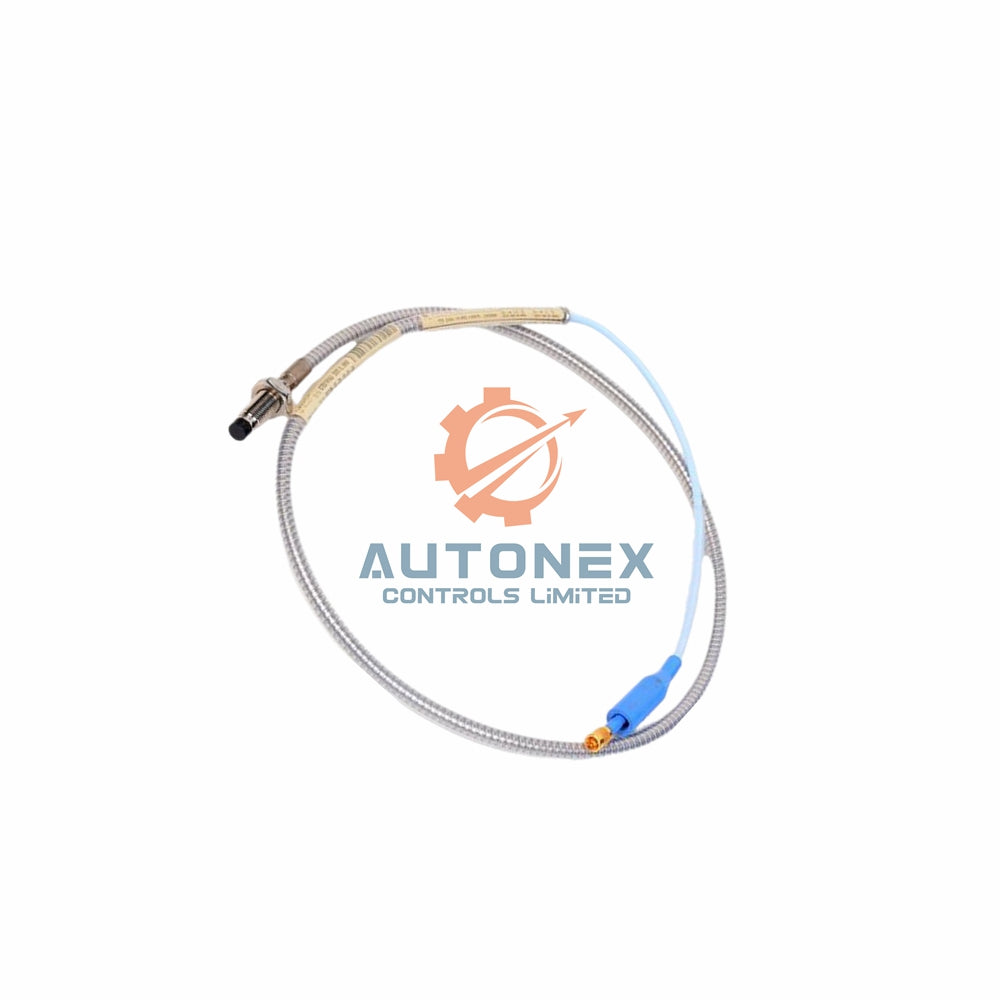

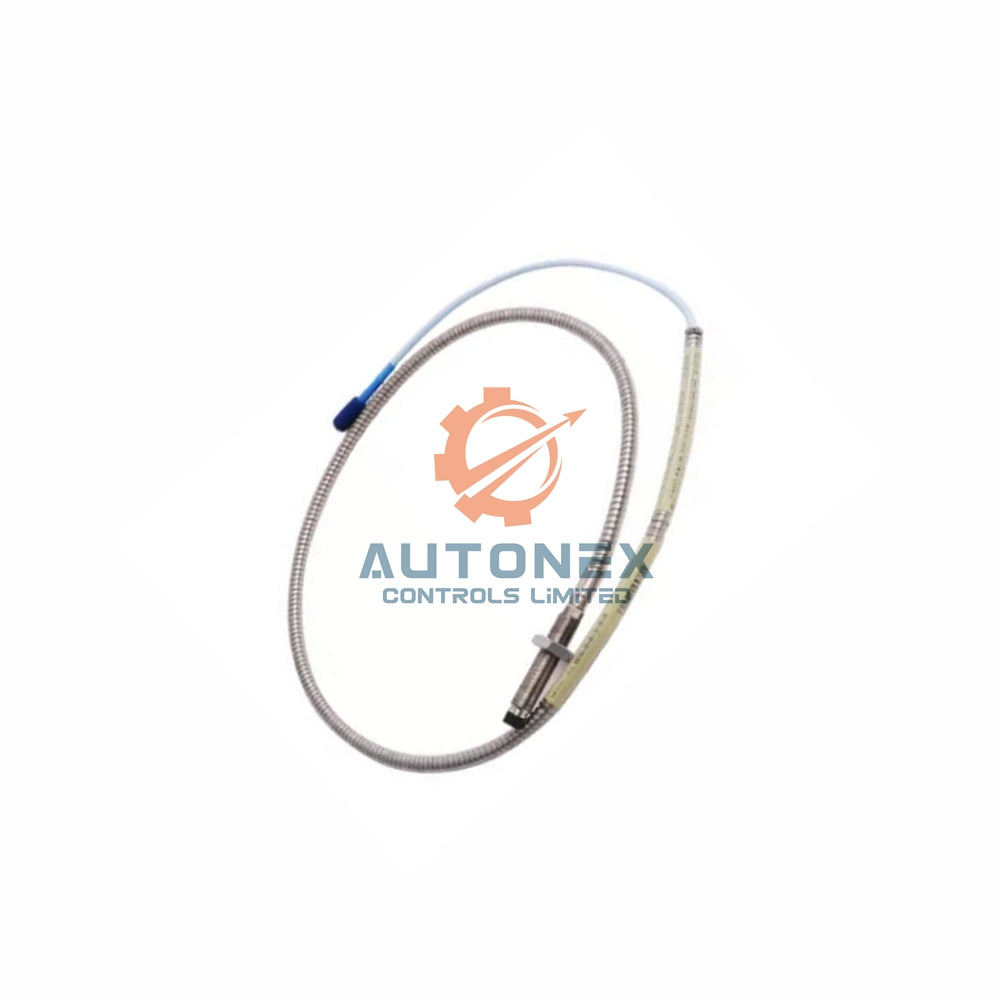

330104-00-06-90-02-00 Bently Nevada 3300 XL Proximity Probe

Bently Nevada 330104-00-06-90-02-00 3300 XL 8 mm Proximity Probe – 9 Meter Cable

• Manufacturer & Full Model: Bently Nevada 330104-00-06-90-02-00 – 3300 XL 8 mm Proximity Probe, Metric version.
• Thread & Armor: M10 x 1 thread with integral armor for cable protection.
• Unthreaded Length: 00 mm (standard).
• Overall Case Length: 60 mm.
• Total Cable Length: 9.0 meters (29.5 feet).
• Connector & Cable Type: Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval: 00 = Not required.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Output Voltage Range: Approximately –1 to –17 Vdc across the linear range.
• Recommended Gap: -9 Vdc (approx. 1.27 mm / 50 mils) for radial vibration monitoring.
• Nominal DC Resistance: 9.87 ± 0.50 Ω for the 9.0 meter probe length.
• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Humidity Performance: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Pressure Seal: Viton® O-ring seals differential pressure between tip and case.
• Maximum Thread Engagement: 15 mm for the M10x1 case thread.
• Weight: 323 g/m (11.4 oz) per meter of probe assembly.
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG) with 3-conductor shielded triad cable.

Frequently Asked Questions (FAQ)

• Is the 330104-00-06-90-02-00 a genuine new probe?
  Yes, we supply only brand new, original Bently Nevada 3300 XL probes.
• What is the lead time for this 9m probe?
  We ship within 5 working days from our warehouse.
• Which carriers do you use?
  We ship via FedEx, UPS, and DHL with full tracking.
• Can I return this probe?
  Yes, we offer a 30-day return policy for unused items.
• What is the linear range of the 330104-00-06-90-02-00?
  It has a 2 mm linear range from 0.25 mm to 2.3 mm (10 to 90 mils).
• Does this probe include a connector?
  Yes, it features a miniature coaxial ClickLoc connector with standard cable.
• What is the DC resistance of the 9m probe?
  The nominal resistance is 9.87 ± 0.50 Ω from center to outer conductor.
