330103-12-23-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Probes

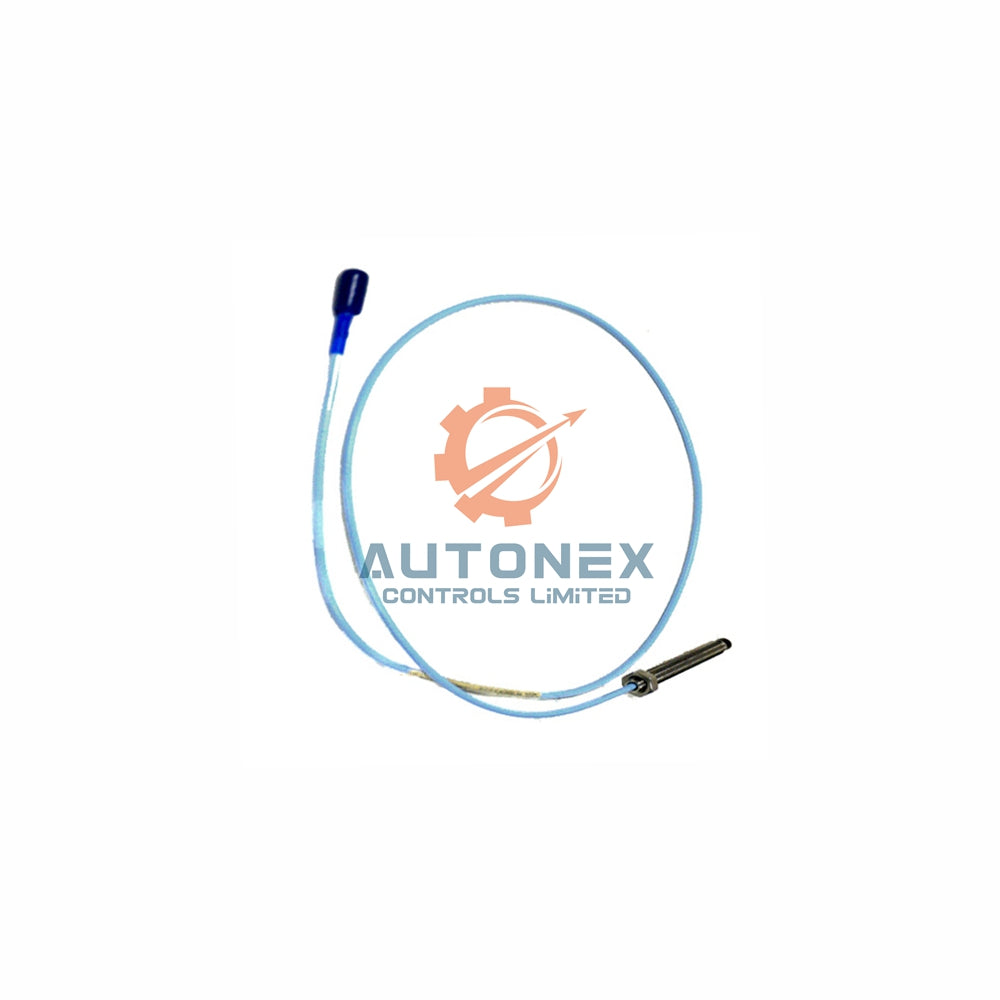

Bently Nevada 330103-12-23-05-02-00 3300 XL 8 mm Proximity Probe

Key Technical Specifications

• Brand & Model: Bently Nevada 330103-12-23-05-02-00, 3300 XL Series.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Output Signal: Approximately –1 to –17 Vdc over the linear range.
• Recommended Gap: –9 Vdc, equal to roughly 1.27 mm (50 mils).
• Unthreaded Length: 120 mm (Option 12).
• Overall Case Length: 230 mm (Option 23).
• Total Cable Length: 0.5 meter (1.6 feet, Option 05).
• Probe DC Resistance: 7.45 ± 0.50 Ω for the 0.5 meter length.
• Case Thread: M10 x 1, maximum thread engagement of 15 mm.
• Temperature Range (Standard): –52°C to +177°C (–62°F to +350°F).
• Extended Tip Temp: Up to +218°C (+425°F) for the probe tip.
• Relative Humidity: Less than 3% ASF change after 56 days at 93% RH.
• Agency Approval: Option 00 – Not required for this variant.

Installation & Wiring Guidelines

• Use 3-conductor shielded triad cable, 16 to 24 AWG tinned wire.
• Maximum field wiring length between sensor and monitor: 305 meters (1,000 feet).
• Refer to frequency response graphs for signal roll-off at long cable runs.
• Do not expose the probe below –34°C (–30°F) to avoid seal failure.
• Install with intrinsic safety barriers (drawing 141092) or galvanic isolators if required.

Mechanical & Environmental Data

• Probe Tip Material: Polyphenylene sulfide (PPS).
• Case Material: AISI 303 or 304 stainless steel (SST).
• Weight: 323 g/m (11.4 oz per meter).
• Pressure Seal: Viton® O-ring, designed for differential pressure.
• Operating temp (standard): –52°C to +177°C; storage same range.
• Extended temp cable/connector: –51°C to +260°C (–60°F to +500°F).

Temperature Classification Schedule

• T1 (EPL Ga/Gc): –55°C to +232°C (probe only).
• T2: –55°C to +177°C; T3: –55°C to +120°C.
• T4: –55°C to +80°C; T5: –55°C to +40°C.
• For EPL Dc: T280°C @ Ta (–55 to +232°C), T225°C @ Ta (–55 to +177°C).

Package Contents (Each Unit)

• One 3300 XL 8 mm Proximity Probe (model 330103-12-23-05-02-00).
• Miniature coaxial ClickLoc connector with standard cable.
• No mounting accessories or brackets included.
• No printed manual – digital documentation available on request.

Frequently Asked Questions (FAQ)

• Is this probe brand new and original? Yes, we supply 100% new and original Bently Nevada 330103-12-23-05-02-00 units.
• Do you have this item in stock? Yes, we maintain ready inventory for this model.
• What is the typical shipping time? We dispatch orders within 5 business days after order confirmation.
• Which carriers do you use? We ship via FedEx, UPS, or DHL – you can choose your preference.
• Can I return this probe? Yes, we support returns within 30 days of delivery.
• What is the total cable length? This variant has a 0.5 meter (1.6 feet) cable.
• Does this probe have agency approvals? No, this is Option 00 – not required for this model.
